MDS 05-6632A01, Rev. F MDS Orbit MCR/ECR Technical Manual 217

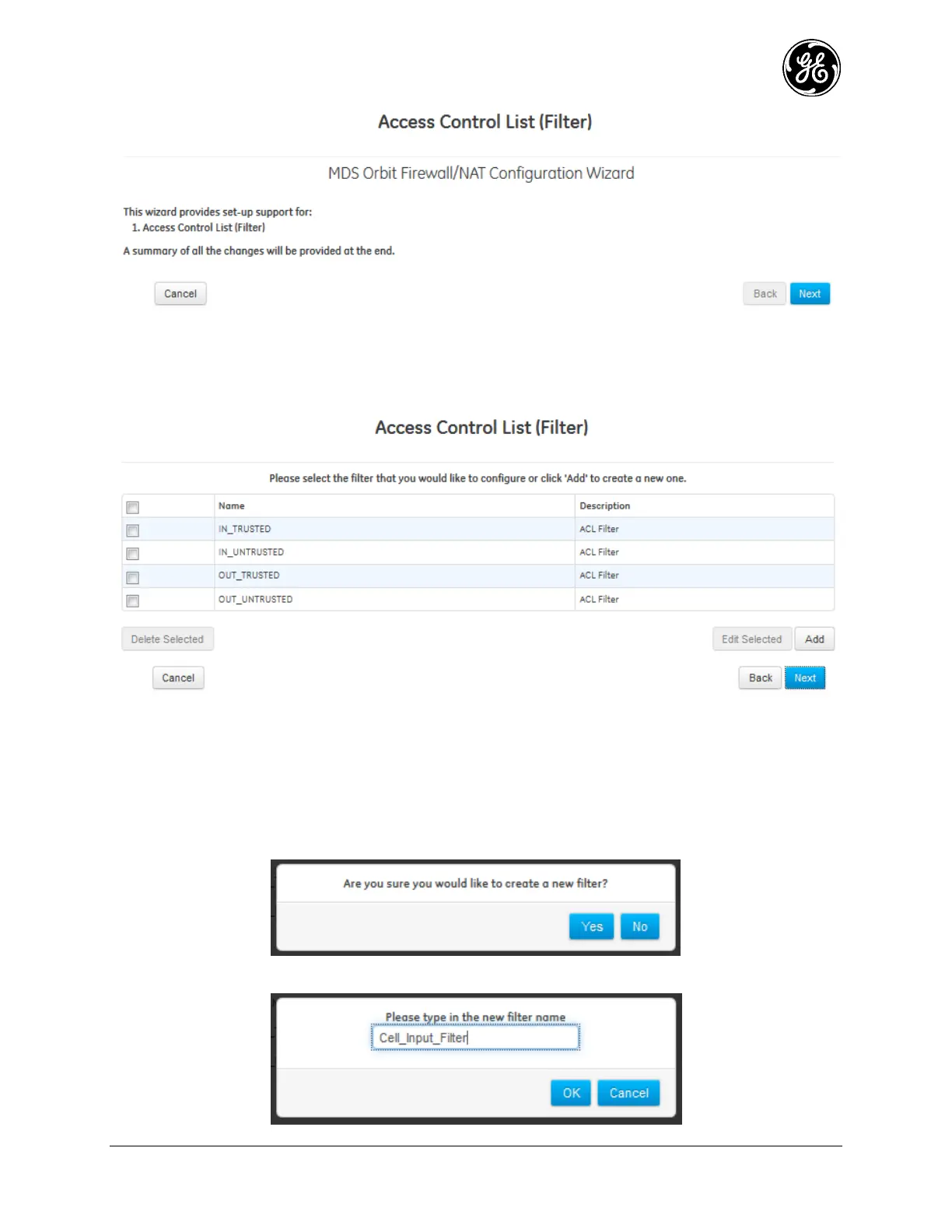

Figure 3-124. Access Control List (Filter) Introduction
The existing filters will be displayed.
Figure 3-125. List of existing packet filters
The wizard displays the list of existing packet filtering rules on the device. The MCR comes with four
pre-configured filters: IN_TRUSTED, IN_UNTRUSTED, OUT_TRUSTED, and OUT_UNTRUSTED.
Existing filters may be edited or deleted, or a new one may be added.
To create a new filter, click Add, then Yes to verify the creation of a new filter. Enter the name of the
new filter, for example “Cell_Input_Filter”. Click OK to continue.
