208 MDS Orbit MCR/ECR Technical Manual MDS 05-6632A01, Rev. F
IPv4 and IPv6 routes may be configured. The example that follows shows how to configure an IPv4
route. It is important to note that IPv6 routes are created with the same input parameters. The only
difference is that the format of the Dest Prefix and Next Hop input parameters varies based on whether
IPv4 or IPv6 is selected.

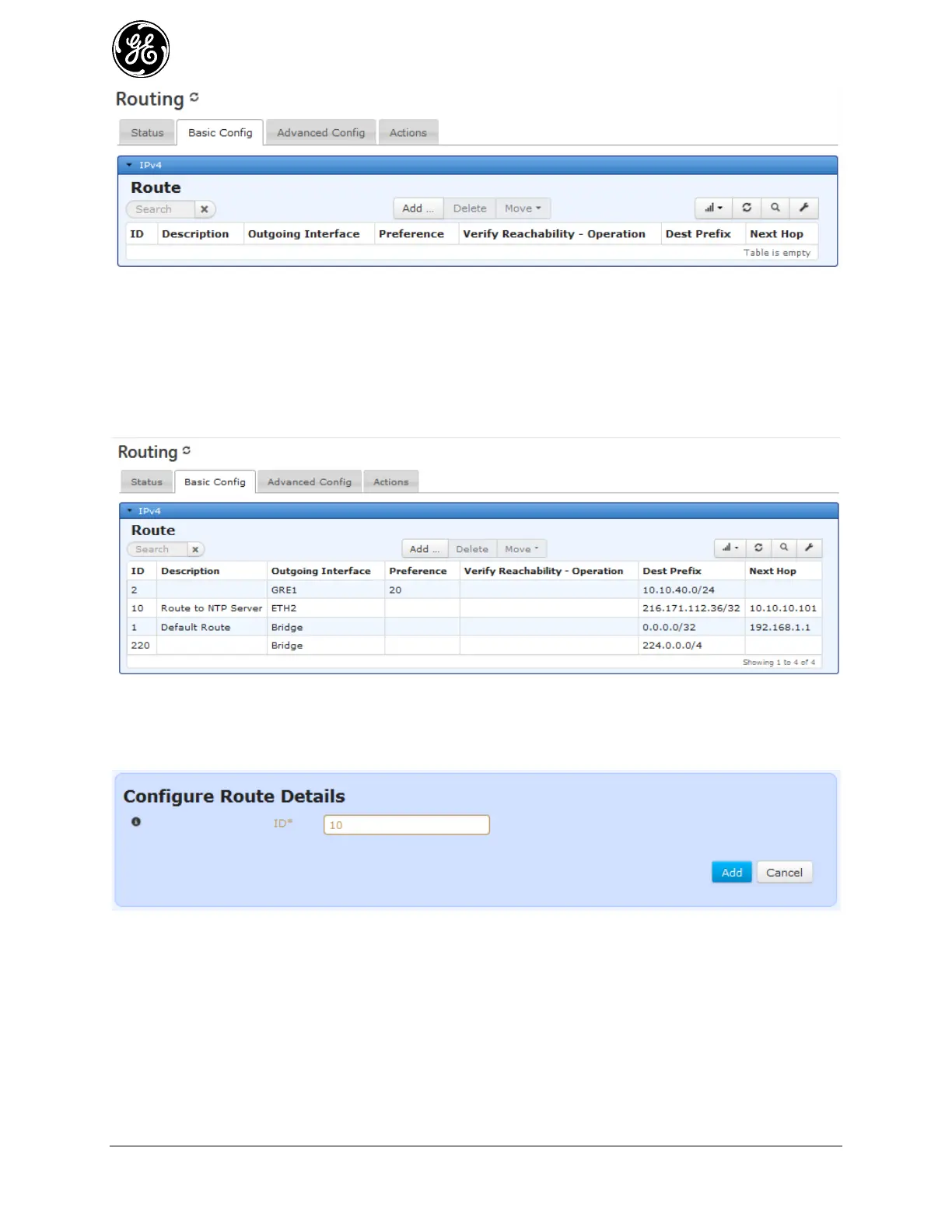

The example network path in Figure 3-1 requires an IPv4 address. When previous routes have been
configured, the IPv4 Route table will display all user-configured IPv4 static routes are listed, as shown
below.
Figure 3-113. List of IPv4 static routes
Delete any of the routes in the table by clicking on an entry to highlight it, and clicking the Delete button.
To add a new route, click the Add button. The Configure Route Details menu appears.
Create a numeric ID for the new route, and click Add. The ID acts as a label, is for reference only, and
has no bearing on the route itself.
