114 MDS Orbit MCR/ECR Technical Manual MDS 05-6632A01, Rev. F
 Ap Address - MAC address of access point this device is linked to
 Ip Address - IP address of access point this device is linked to.
 Connected Time - Time elapsed in seconds since link established. Roll over after
4294967295 seconds
 Avg Rssi - Average received signal strength index in dBm and ignores the "quality" or
"correctness" of the signal - Refer to Table 3-9. Modulation and Bandwidth Combinations for
modem related RSSI information.
 Avg Lqi - Average Link Quality Index - This is a unit-less metric representing the quality of
the latest signal decoded by the transceiver. Important Notes and Information Regarding LQI
MAC Statistics

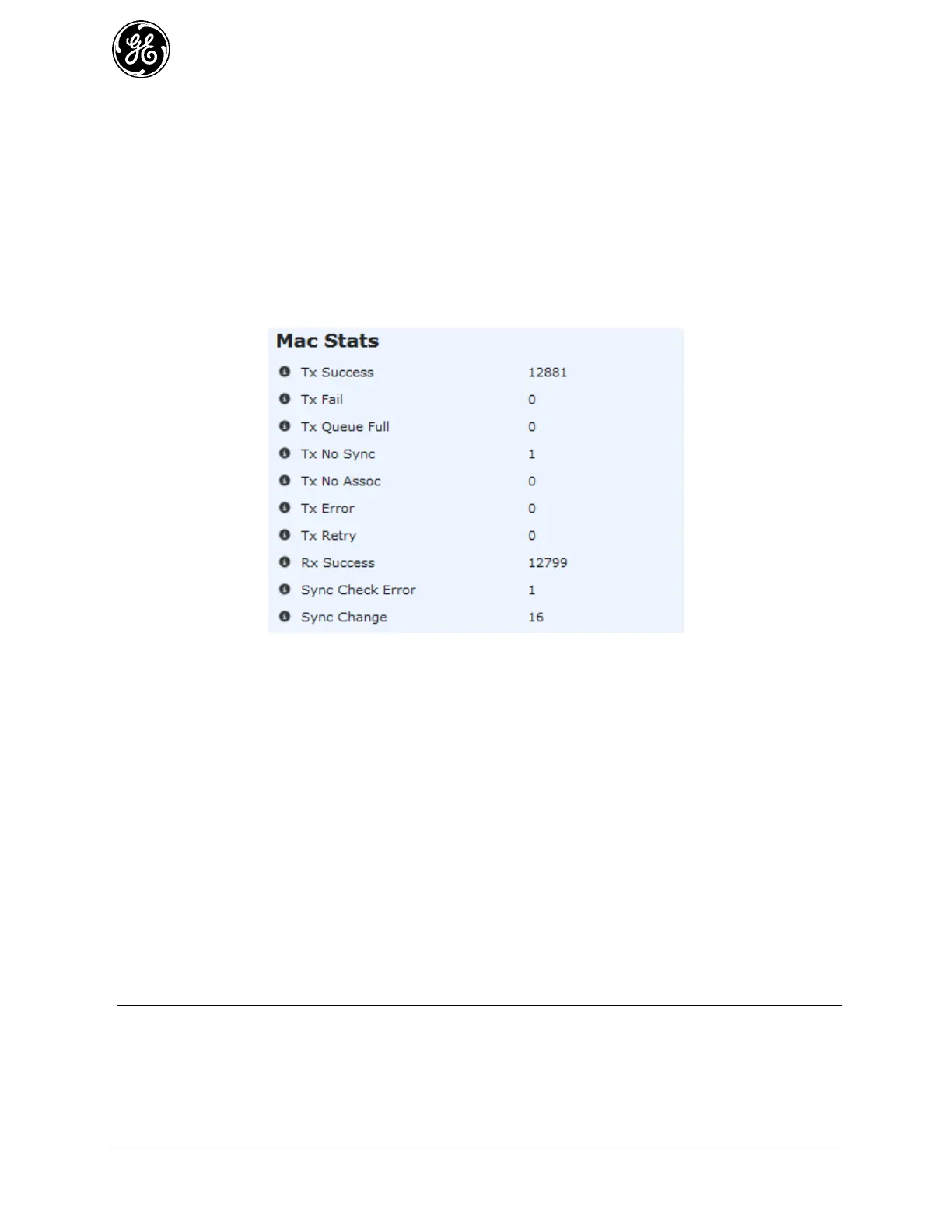

Figure 3-59. ISM 900 (NX) MAC Statistics
 Tx Success - Successful transmissions.
 Tx Fail - Failed transmissions, TTL expired or retry count exceeded.
 Tx Queue Full - Failed transmissions, MAC queue full.
 Tx No Sync - Number of packets dropped because the MAC is not synchronized
 Tx No Assoc - Packets dropped because the MAC is not associated
 Tx Error - Packets dropped for other reasons. Currently unused.
 Tx Retry - Re-transmission count due to previously unsuccessful transmission.
 Rx Success - Valid packet received.
 Sync Check Error - Lost synchronization.
 Sync Change - Synchronization changed or forced drop.
Connections Status
In AP mode the “Connected Remotes” and “Endpoints” information will be displayed in addition to the
Active Channel.
NOTE Clicking on the mac address in either connected remotes or endpoints will bring up more stats.
