296 MDS Orbit MCR/ECR Technical Manual MDS 05-6632A01, Rev. F

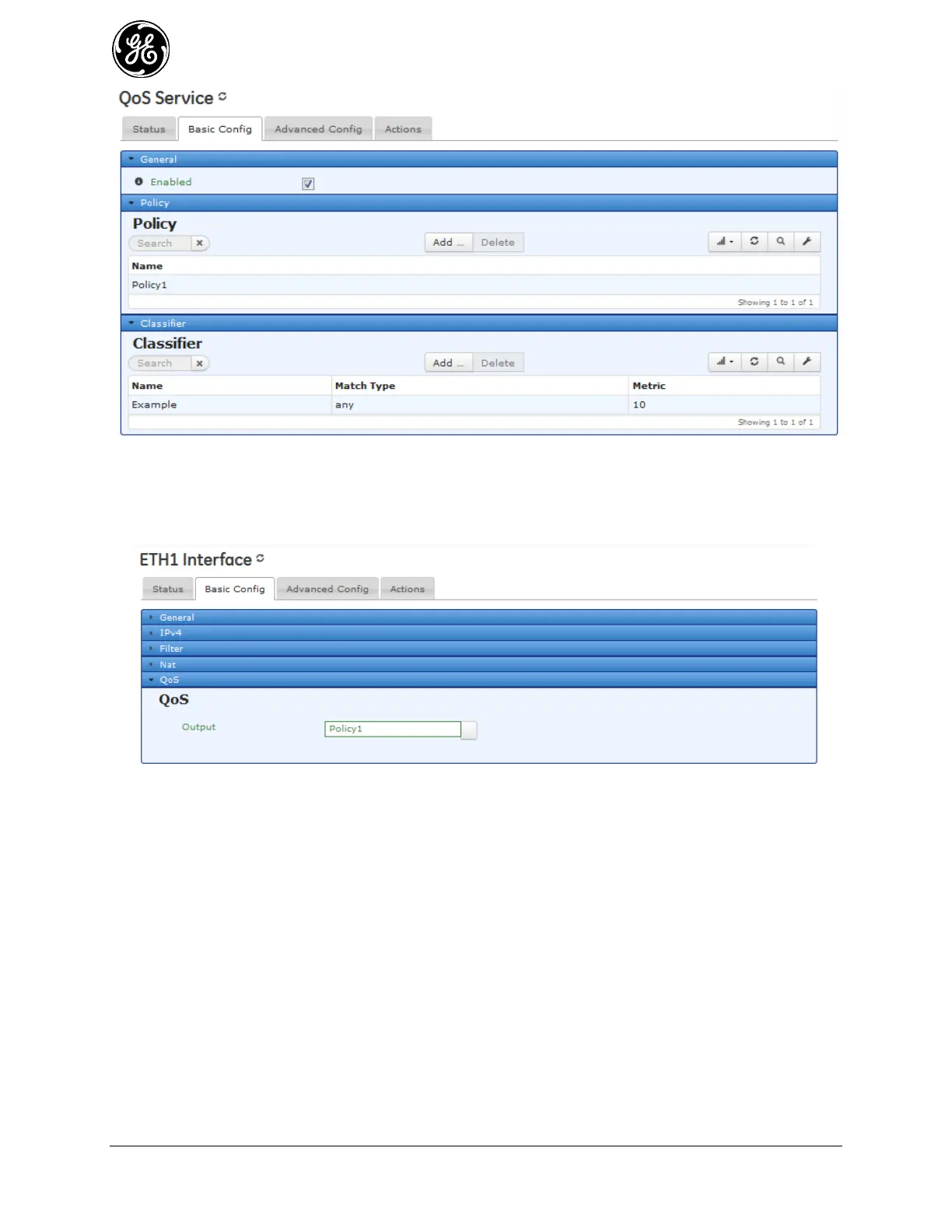

Figure 3-222. QoS menu
This policy has to be applied to an interface before it has any effect. Navigate to Interfaces and click on
the desired interface. Click on the QoS dropdown from the Basic Config tab and select the new QoS
policy to apply it to all traffic leaving that interface. Once configuration is complete, click Save.
Figure 3-223. Applying a QoS policy to an interface
Using the CLI
Example: Prioritize traffic with a particular ether-type above all other traffic
This example will create a QoS policy that uses a classifier to prioritize GOOSE messages above all
others.
First, ensure that QoS is enabled.
% set services qos enabled true
To set up the classifier:
% set services qos classifier GOOSE match M1 ethernet ether-type protocol goose
To set up the policy:
% set services qos policy Policy1 prioritization default-priority 5
% set services qos policy Policy1 prioritization class HIGH priority 1 classifier GOOSE
% set services qos policy Policy1 prioritization class STANDARD priority 5
