86 MDS Orbit MCR/ECR Technical Manual MDS 05-6632A01, Rev. F
In Broadcast Pkts - The number of packets, delivered by this sub-layer to a higher (sub-)
layer, which were addressed to a broadcast address at this sub-layer.
In Multicast Pkts - The number of packets, delivered by this sub-layer to a higher (sub-)
layer, which were addressed to a multicast address at this sub-layer.
In Discards - The number of inbound packets which were chosen to be discarded even though
no errors had been detected to prevent their being deliverable to a higher-layer protocol. One
possible reason for discarding such a packet could be to free up buffer space.
In Errors - For packet-oriented interfaces, the number of inbound packets that contained
errors preventing them from being deliverable to a higher-layer protocol.
In Unknown Protos - For packet-oriented interfaces, the number of packets received via the
interface which were discarded because of an unknown or unsupported protocol.
Out Octets - The total number of octets transmitted out of the interface, including framing
characters.
Out Unicast Pkts - The total number of packets that higher-level protocols requested be
transmitted, and which were not addressed to a multicast or broadcast address at this sub-layer,
including those that were discarded or not sent.
Out Broadcast Pkts - The total number of packets that higher-level protocols requested be
transmitted, and which were addressed to a broadcast address at this sub-layer, including those
that were discarded or not sent.
Out Multicast Pkts - The total number of packets that higher-level protocols requested be
transmitted, and which were addressed to a multicast address at this sub-layer, including those
that were discarded or not sent.
Out Discards - The number of outbound packets which were chosen to be discarded even
though no errors had been detected to prevent their being transmitted.
Out Errors - For packet-oriented interfaces, the number of outbound packets that could not be
transmitted because of errors.
3.5.3.4 WiFi Status When Configured as an AP:

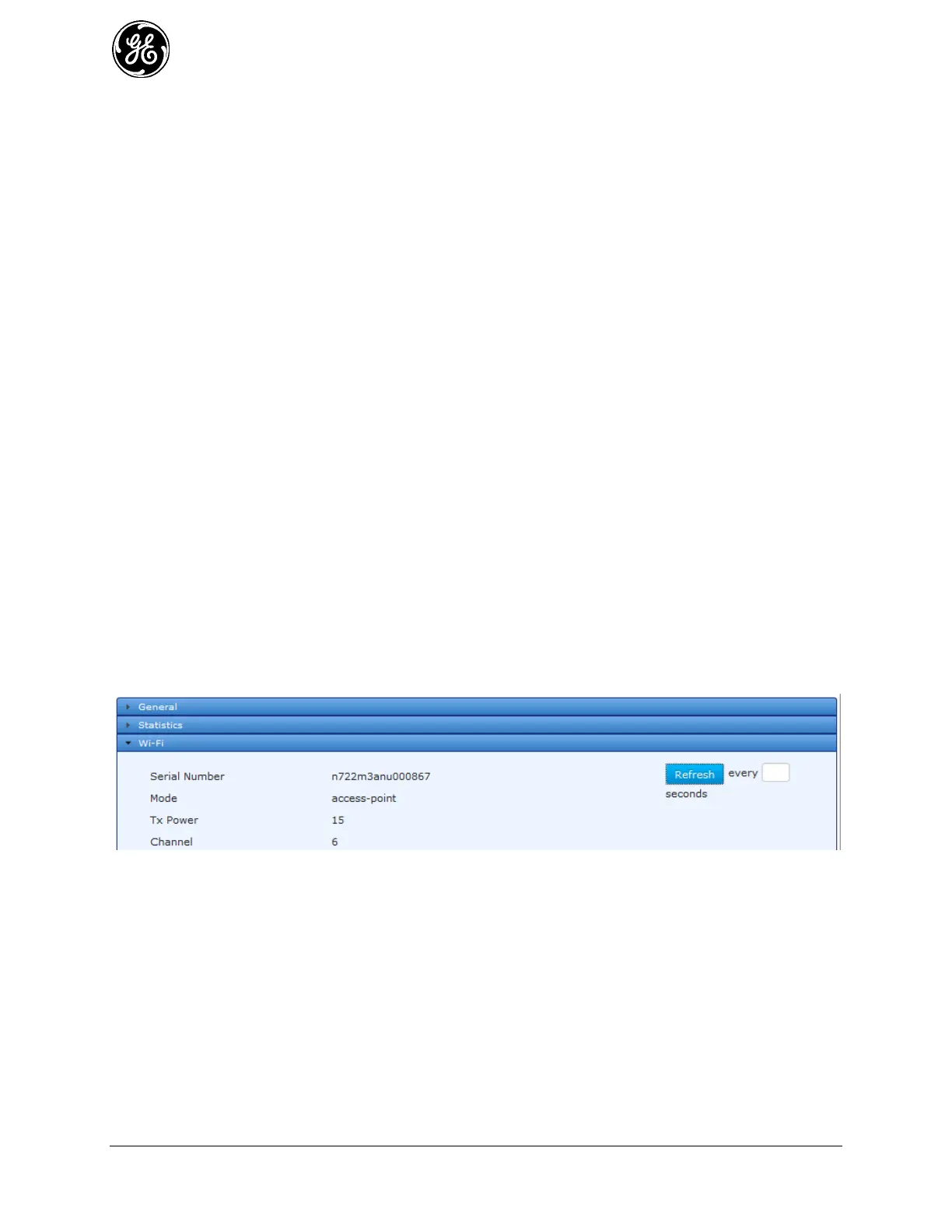

Figure 3-39. WiFi AP Status Information
Serial Number – Internal WiFi module serial number
Mode - WiFi Mode
- Station - makes connection to a WiFi Access Point
- Access Point – provides WiFi connections to multiple Stations
Tx Power - The transmission power of the WiFi interface – Valid Values 1-18 (dBm)
Channel – IEEE 802.11 channel number to operate on. Valid values 1-11.
Ap Status - link to information regarding the Ap linked to this station - as shown below
