MDS 05-6632A01, Rev. F MDS Orbit MCR/ECR Technical Manual 183
Server Address - For FTP, TFTP, and SFTP, the remote server's host name or IP address
File Path - For FTP, TFTP, and SFTP, the path to the destination file on the remote server
User Name - For FTP and SFTP, the user name on the remote server
Password - For FTP and SFTP, the password on the remote server
Control Port - For FTP, the TCP control port (advanced setting - use default)
Data Port - For FTP, the TCP data port (advanced setting - use default)
Block Size - For TFTP, the block size as defined in RFP 2348 (advanced setting - use default)
Timeout - For FTP, TFTP, and SFTP, the timeout in seconds (advanced setting - use default)
The following example shows how to have the device generate and export a configuration file (named
config-2016-02-04.xml) to a TFTP server running on a host (address 192.168.1.10) that is accessible from
the MCR (e.g. a locally connected host or remote host accessible via cellular interface). To start the
configuration file export from the CLI, enter the following command to upload the configuration file to an
external TFTP server:
> request system configuration-files export filename config-2016-02-04.xml manual-file-
server { tftp { address 192.168.1.10 } }
Monitoring - Export
Once the export of the configuration file is begun, the process may be cancelled by clicking the Cancel
Exporting button. The current status of the configuration file export process is displayed on the web
page. Note that the web page does not display the current status if the device has not been instructed to
export a configuration file (in other words, if the state is “inactive”).

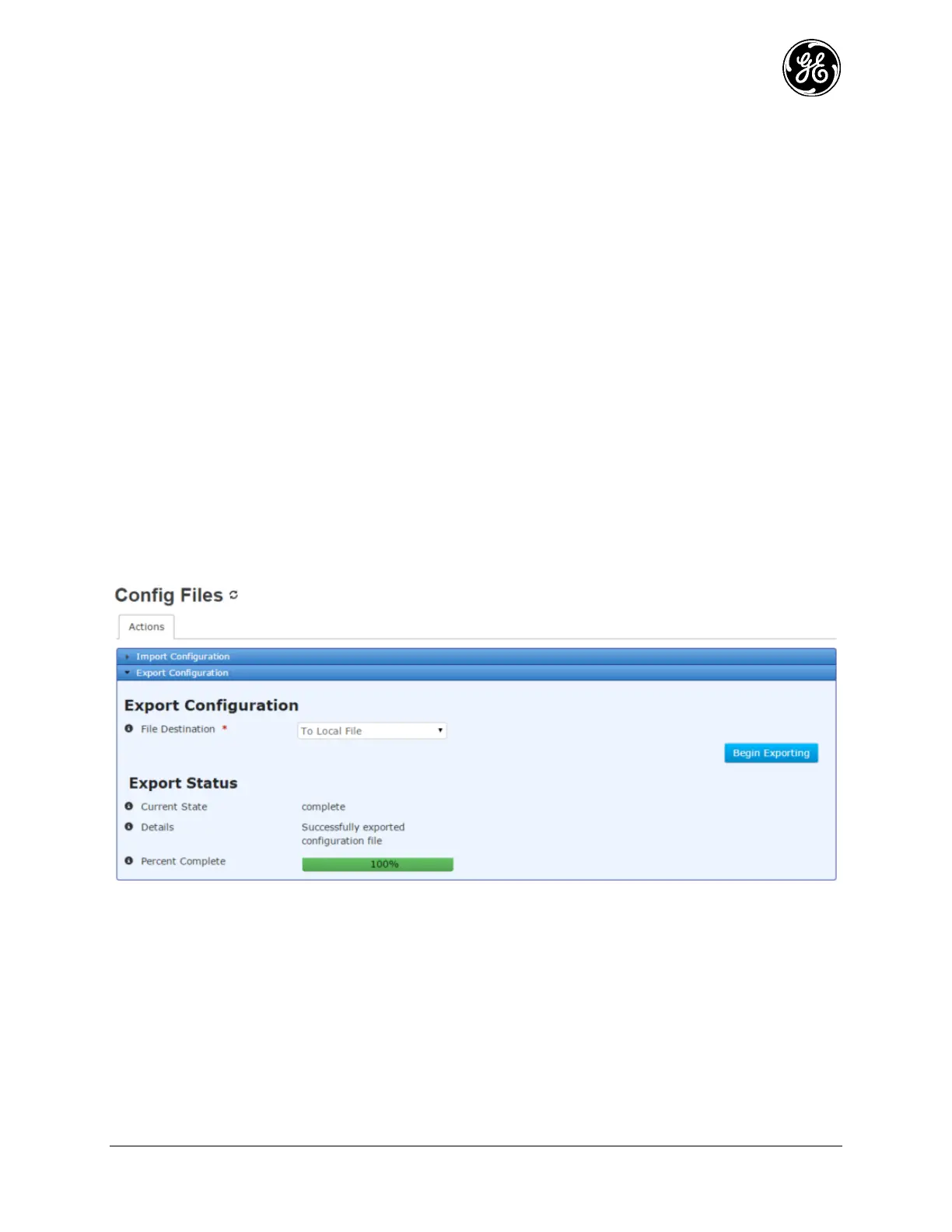

Figure 3-95. Export Configuration Monitoring
The export status contains the following items:
Current State – The status of the export configuration file task:
- inactive
- preparing
- transfering
- cancelling
- complete
- failure
