30 MDS Orbit MCR/ECR Technical Manual MDS 05-6632A01, Rev. F

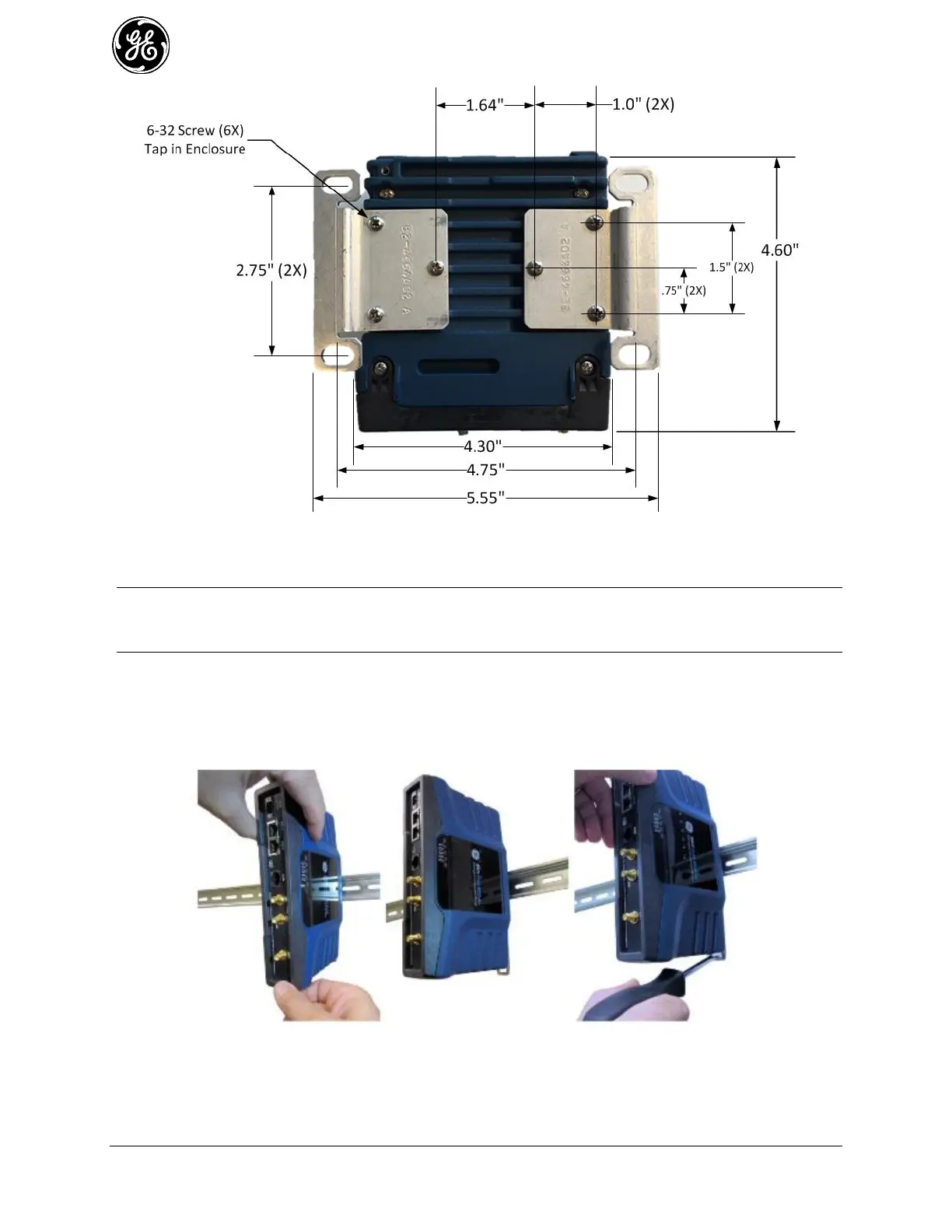

Figure 2-8. ECR Flat Mounting Bracket Dimensions
NOTE To prevent moisture from entering the unit, do not mount the case with the cable connectors
pointing up. Also, dress all cables to prevent moisture from running along the cables and into
the unit.
Optional DIN Rail Mounting 2.7.1
If ordered with the DIN rail mounting option, the unit is supplied with a DIN rail clip attached to the case.
The integrated bracket on the unit’s case allows for quick installation and removal from a DIN mounting
rail as shown in Figure 2-9.
Figure 2-9. DIN Rail Attachment and Removal
(Pull down tab to release from rail)
