136 MDS Orbit MCR/ECR Technical Manual MDS 05-6632A01, Rev. F
Remote’s AP Info (Remote Only):

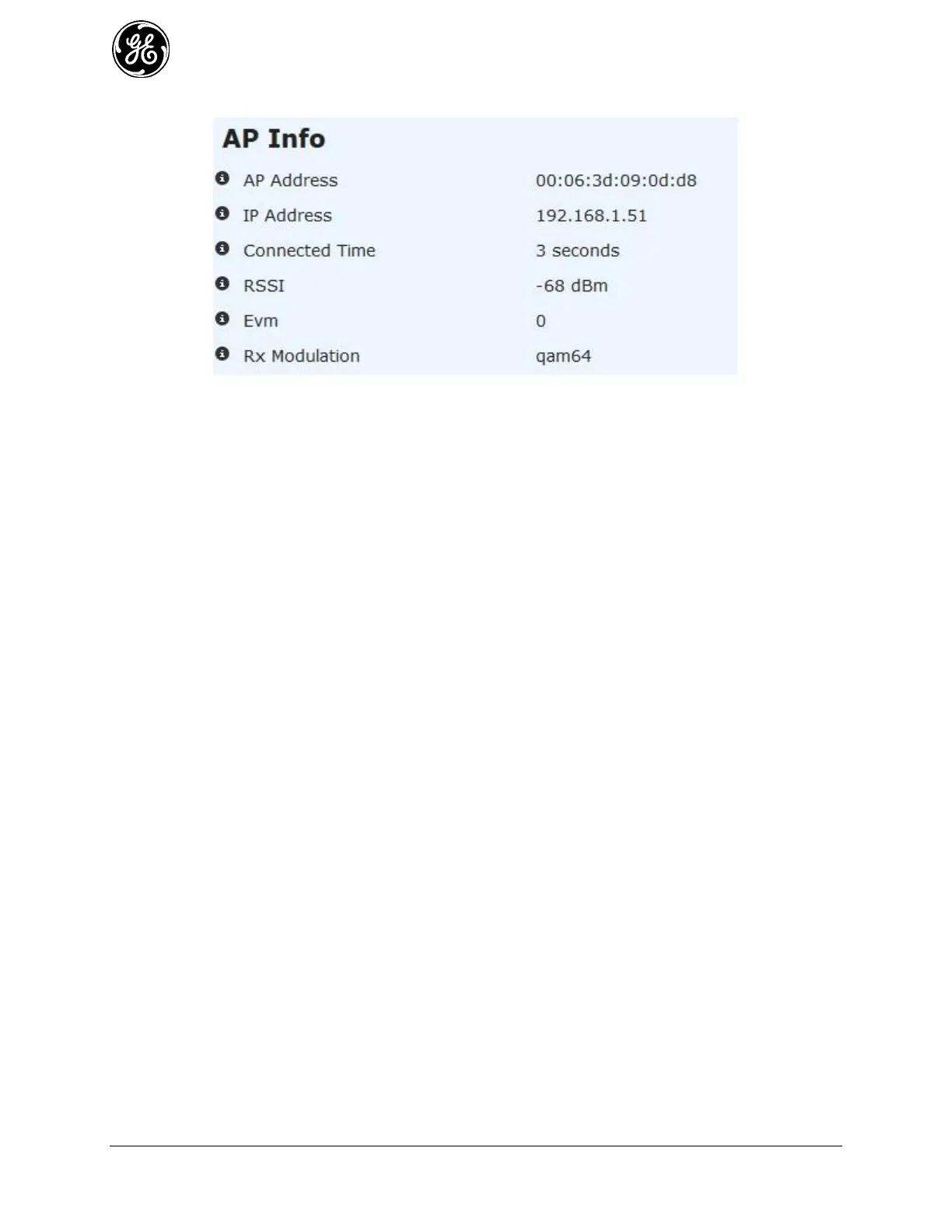

Figure 3-72. Licensed Narrowband (LN) Remote’s AP Information
 AP Address - MAC address of access point this device is linked to.
 IP Address - IP address of access point this device is linked to.
 Connected Time - Time elapsed in seconds since link established. After 4294967295 seconds,
the value displayed rolls over to 0.
 RSSI - The RSSI measured at the time of the last received packet. If using this reading to align
an antenna or gather link status information, we recommend setting the page refresh to 3
seconds.
 EVM - The Error Vector Magnitude measured at the time of the last received packet. For
more information, refer to refer to Important Notes and Information Regarding EVM
 Rx Modulation - The modulation measured at the time of the last received packet.
