MDS 05-6632A01, Rev. F MDS Orbit MCR/ECR Technical Manual 87
3.5.3.5 WiFi AP Status:

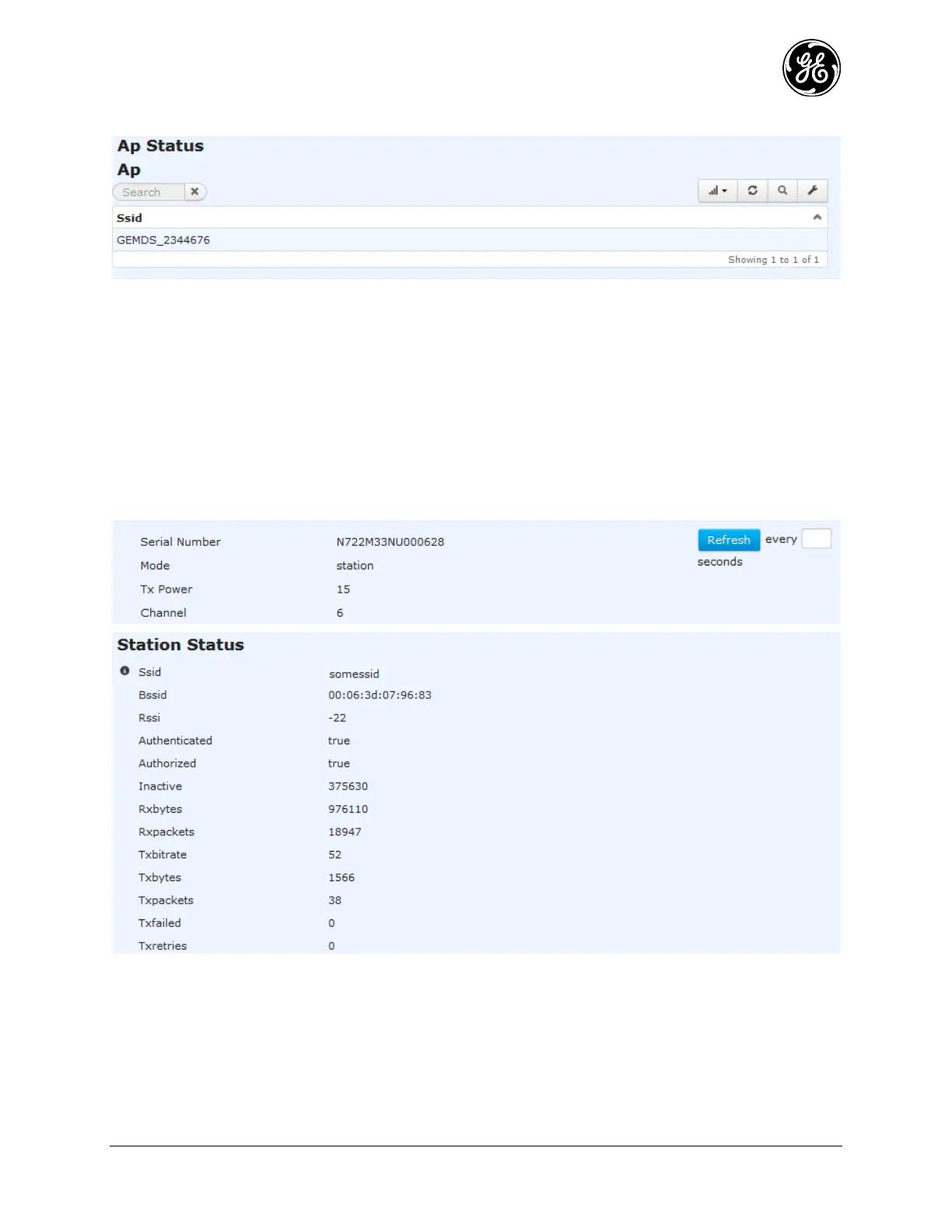

Figure 3-40. WiFi AP Status Information
 Mac - Hardware Id of connected device.
 Rssi - Received Signal Strength Indication - possible values are: -20 to -90 dBm
 Authenticated – indicates the client is valid to connect - True/False
 Authorized – indicates the client has valid logon credentials - True/False
 Inactive – milliseconds since last packet
 Rxbytes – received byte count
 Rxpackets – received packet count
3.5.3.6 WiFi Status When Configured as a Station:
Figure 3-41. WiFi Station Statistics Information
 Ssid - SSID of access point to which the unit is connected - up to 32 characters.
 Bssid – Basic SSID of access point to which the unit is connected - up to 32 characters
 Rssi - Received Signal Strength Indication - possible values are: -20 to -90 dBm
 Authenticated – indicates the client is valid to connect - True/False
 Authorized – indicates the client has valid logon credentials - True/False
 Inactive – milliseconds since last packet
