246 MDS Orbit MCR/ECR Technical Manual MDS 05-6632A01, Rev. F

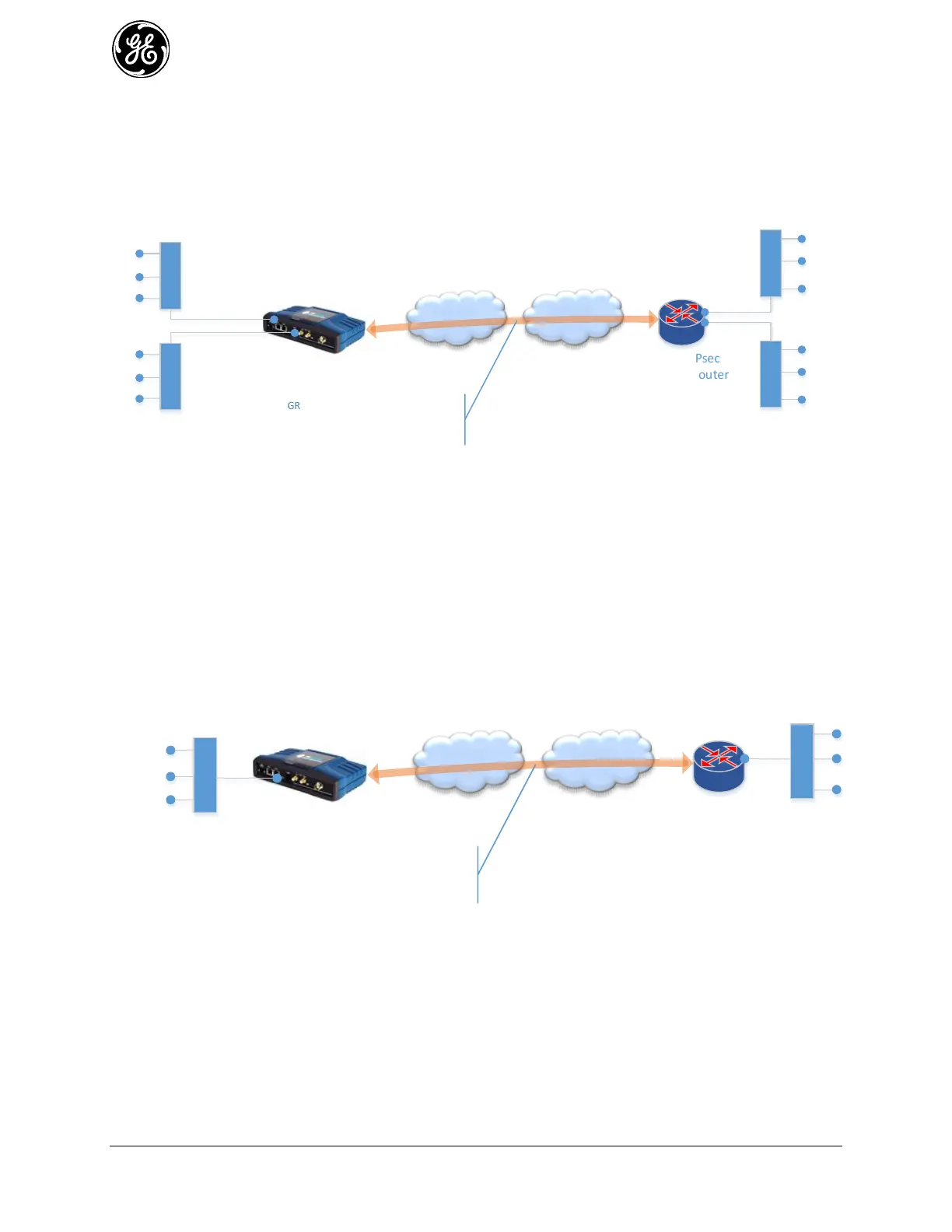

2. Site-to-Site GRE/IPsec L3VPN – This enables routing of traffic to/from one or more local LANs of
Orbit from/to one or more remote LANs on the other side of the Remote IPsec router through a
single GRE tunnel protected by transport mode IPsec connection.
Orbit
Remote IPsec
Gateway/Router
Local LAN#1
192.168.1.0/24
Remote LAN#1
192.168.3.0/24
Customer
Network/
Internet
Cellular
network
GRE tunnel protected by transport-
mode IPsec connection carrying traffic
between local and remote LANs
In this setup, there are one or more LANs behind Orbit and traffic from these LANs needs to be
routed towards a one or more remote LANs on the other side of the remote router through a
GRE tunnel protected by IPsec transport mode connection. The routes are added for remote LAN
networks on Orbit either statically (via manual configuration) or dynamically (by running routing
protocols like RIP/OSPF/BGP over GRE tunnel).
Local LAN#2
192.168.2.0/24
Remote LAN#2
192.168.4.0/24
3. Site-to-Site GRE/IPsec L2VPN – This enables bridging of traffic to/from one or more local LANs of
Orbit from/to one or more remote LANs on the other side of the Remote IPsec router through a
single GRE tunnel protected by transport mode IPsec connection. Orbit also supports VLAN trunking
over GRE tunnel for a case where there is more than one LAN behind Orbit and remote router.
Orbit
Remote IPsec
Gateway/Router
Local LAN
192.168.1.0/24
Remote LAN
192.168.1.0/24
Customer
Network/
Internet
Cellular
network
GRE tunnel protected by transport-
mode IPsec connection carrying traffic
between local and remote LANs
In this setup, there is single LAN behind Orbit and traffic from this LAN needs to be bridged with
single remote LAN on the other side of the remote router through a GRE tunnel protected by
IPsec transport mode connection. In this mode, the GRE tunnel is in Ethernet-over-GRE mode and
simulates a point-to-point layer-2 VPN enabling MAC visibility and learning between the two
sites. Orbit also supports VLAN trunking over the GRE tunnel in a case there is more than one
LAN behind Orbit and Remote router.
4. Dynamic Multipoint/Mesh VPN (DMVPN) - DMVPN combines multipoint GRE (mGRE) Tunnels,
IPSec encryption and NHRP (Next Hop Resolution Protocol) functionality to enable easier
configuration of hub-to-spoke VPN deployments. In addition, it enables formation of on-demand
dynamic tunnels between spokes for a full or partial mesh VPN network. The routes are added for
