272 MDS Orbit MCR/ECR Technical Manual MDS 05-6632A01, Rev. F

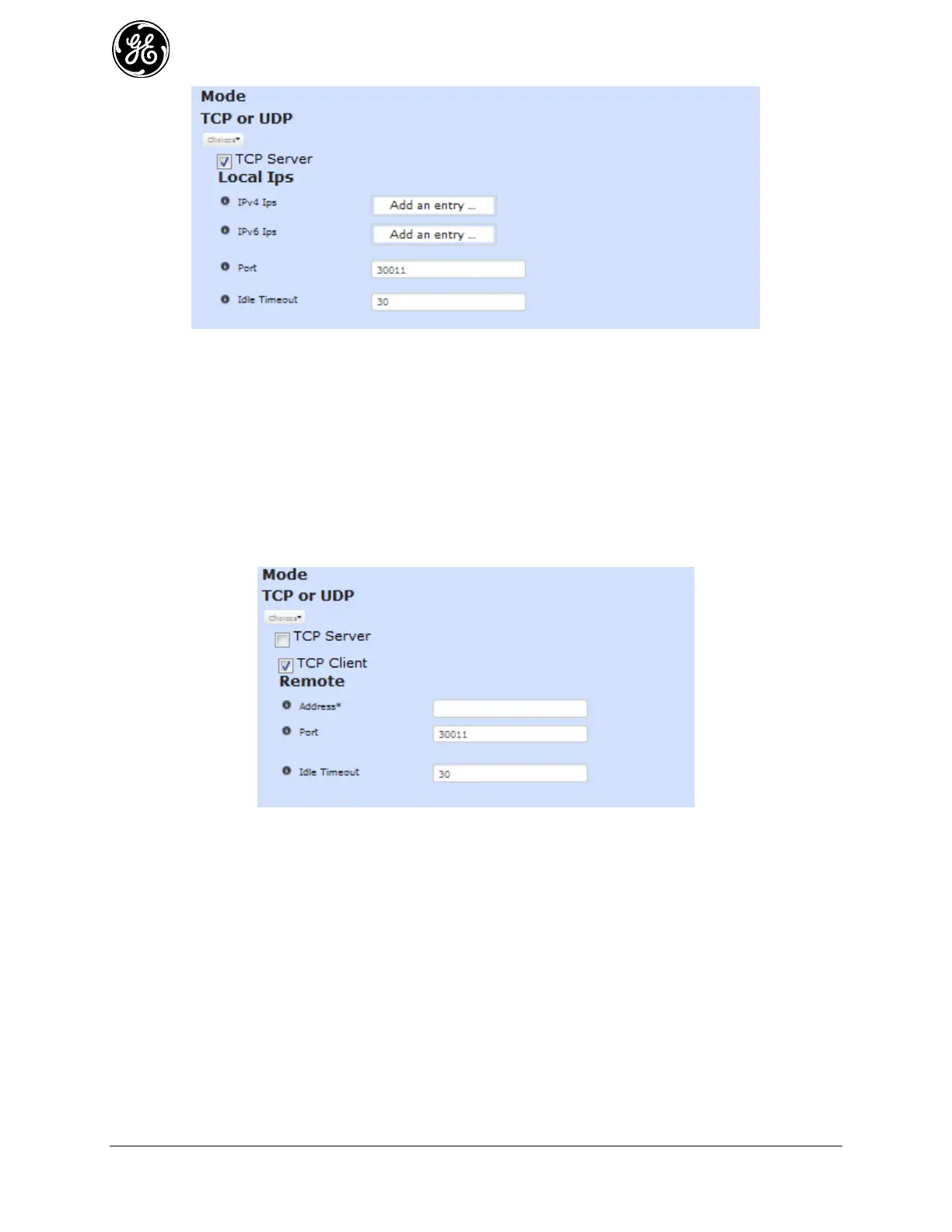

Figure 3-187. TCP Terminal Server Settings Screen
Local IPS
 Ipv4 IPS - Configure to IPv4 address or leave blank for all
 Ipv6 IPS - Configure to IPv6 address or leave blank for all
 Port – The local port of the server 0-65535 (30011 - DEFAULT)
 Idle Timeout - The time interval (in secs) after which a tcp connection is disconnected if there is no
data activity to/from the client (30 sec DEFAULT)
If TCP Client / Server is selected, options for both TCP Client and TCP Server are available below
displays the client side configuration.
Figure 3-188. TCP Terminal Client Settings Screen
Remote
 Address – The IPv4/IPv6 address used when sending serial data.
 Port – The local port of the server 0-65535 (30011 - DEFAULT)
 Idle Timeout - The time interval (in secs) after which a tcp connection is disconnected if there is no
data activity to/from the client (30 sec DEFAULT)s
Basic Setup of Modbus Terminal Server
Start the same initial settings as were done for UDP setup.
 Click Choices
 Click Modbus TCP
 Click Modbus TCP check box
