TROUBLE-SHOOTING
TROUBLE-SHOOTINGD
Finding the system that is causing the problems
The status described in the previous section is an overall system status showing the
most important status in the system. To verify the synchronization details per main-
frame, please refer to the chapter „System topology“ on page 327.
Checking the Perception setup
The following settings can all be found in the Perception Settings (see Fig. D.50).

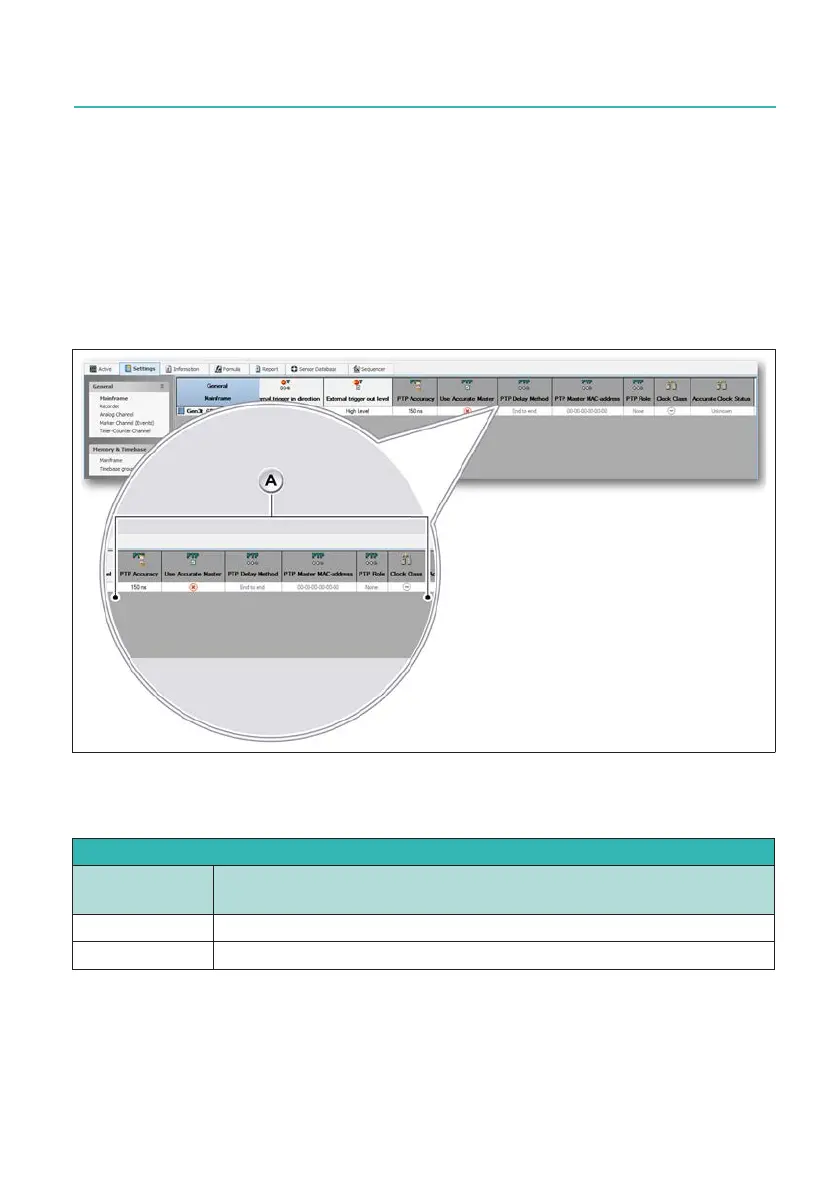

Fig. D.50 Perception General Mainframes settings
A PTP related settings in Perception General Mainframes settings
Sync source
Network port
used
Sync source setting
RJ45 IRIG GMR1000 (PTP1 RJ45)
Optical 1 Gbit IRIG GMR1000 (PTP2 SFP)
