Barcode reader head 95T EIR:

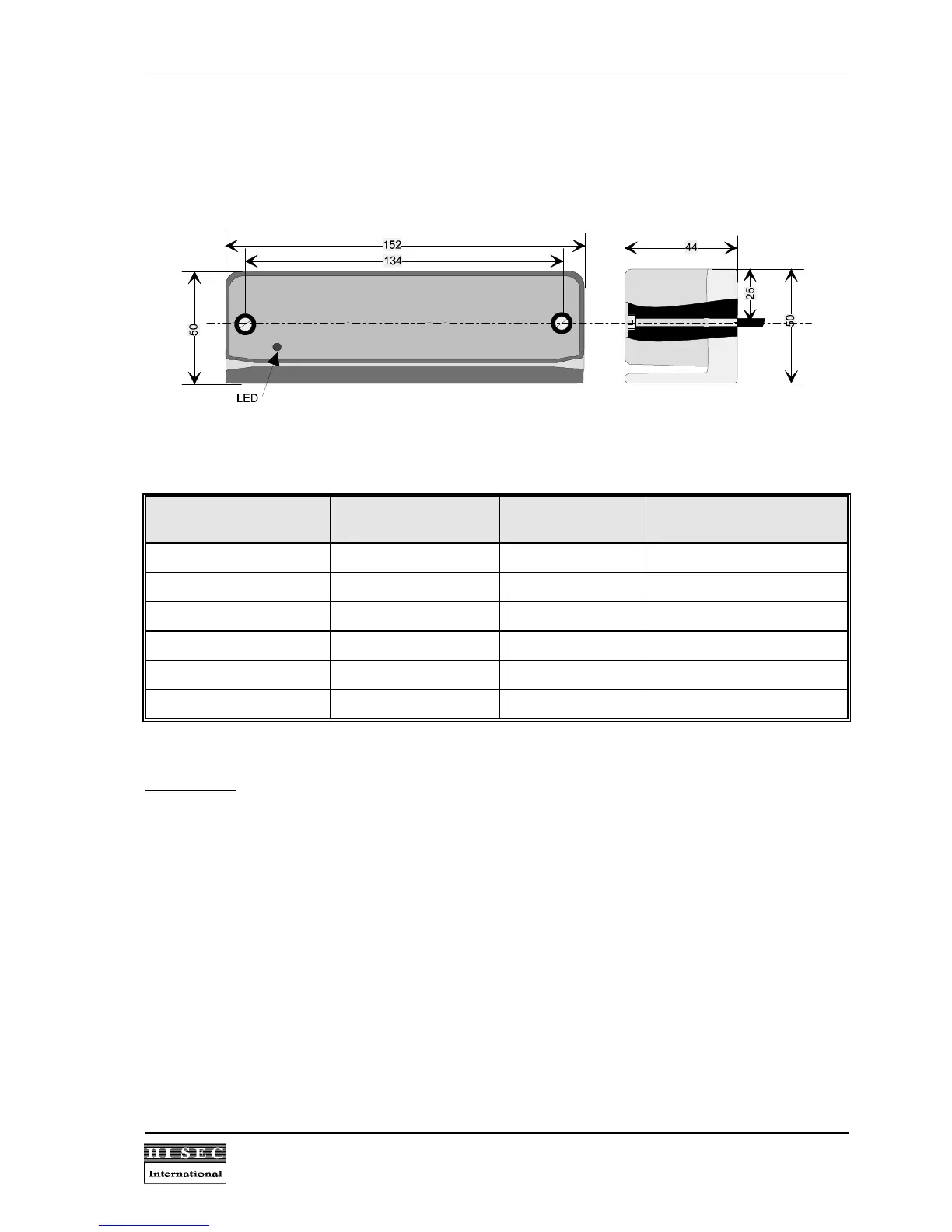

The bar code reader head can be fixed on the wall by the two holes in the reader as shown below.
Interconnection between terminal and Bar code reader head:
Function Cable from reader
95T EIR
Terminal no. in
95T ERC
Flat-cable from controller
90T RKP ERC
5 Volt Red 1 ( 5V ) 1 (red or blue)
Data Purple 2 ( D0 ) 2
Clock Green 3 ( D1 ) 3
0 Volt Black, Yellow, Orange 4 ( 0V ) 4
Card detect Not used Not used 5 Not used
Green lamp (door open) Brown 6 ( LED 2 ) 6
Technical data
Stock number:
Bar code reader head
....... ......... .......... .......... .......... ..........
95T EIR
Max. number of digits on the card
......... .......... .......... .......... ..........
16
Card formats
.................... .......... ......... .......... .......... .......... ..........
Code 39 (only numeric)
Interleaved 2 of 5
and others.
Supply voltage
.................. .......... ......... .......... .......... .......... ..........
5V DC (from terminal)
Current consumption
........ .......... ......... .......... .......... .......... ..........
Typ. 100 mA
