6.9 Status Out
98

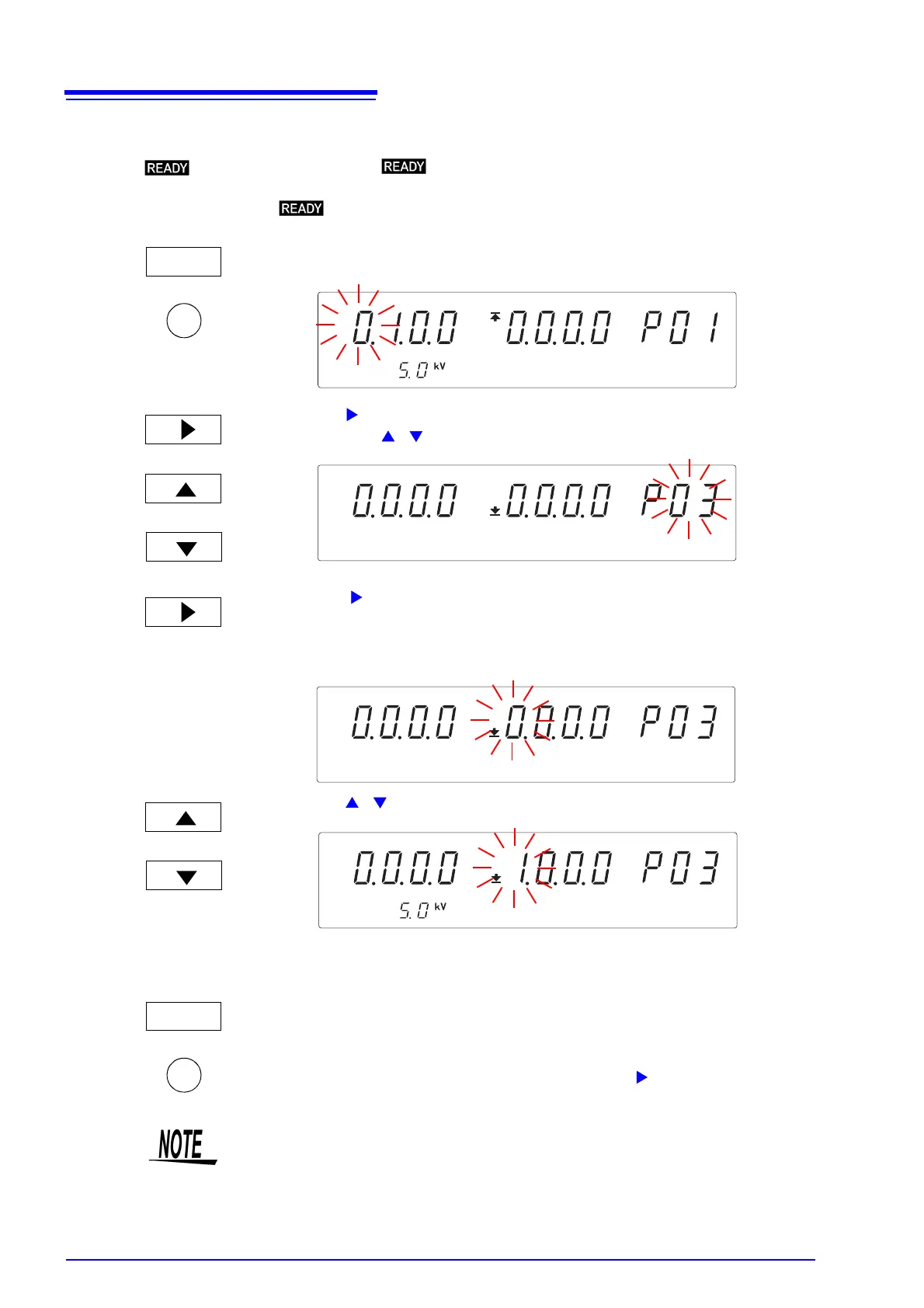

Setting output conditions
1.
( is lit)
Make sure the lamp is lit on the screen.
* will not be displayed during the Double Action setting.
2.
Press the STOP key while holding down the SHIFT key to display the
optional screen (page 1).
3.
Press the key to move the flashing cursor to the position of page, and
then press the
/ keys to display the optional screen (page 3).
4.
Press the key to move the flashing cursor to the Grid showing the
conditions to be set.
The diagram shows an example of setting the interlock mode.
For details, see"Appendix2 List of Optional Functions" (p. A5)
5.
Press the / keys to select the mode.
0: Remove condition from status out condition
1: Set the condition
6.
Press the STOP key while holding down the SHIFT key to complete the
setting value.
The instrument reverts to the READY state.
To continue to the setting for the next item, press the key.
The status out relay connection will turn ON as long as any one of the conditions
is met.
SHIFT
STOP
+
or
or
SHIFT
STOP
+
