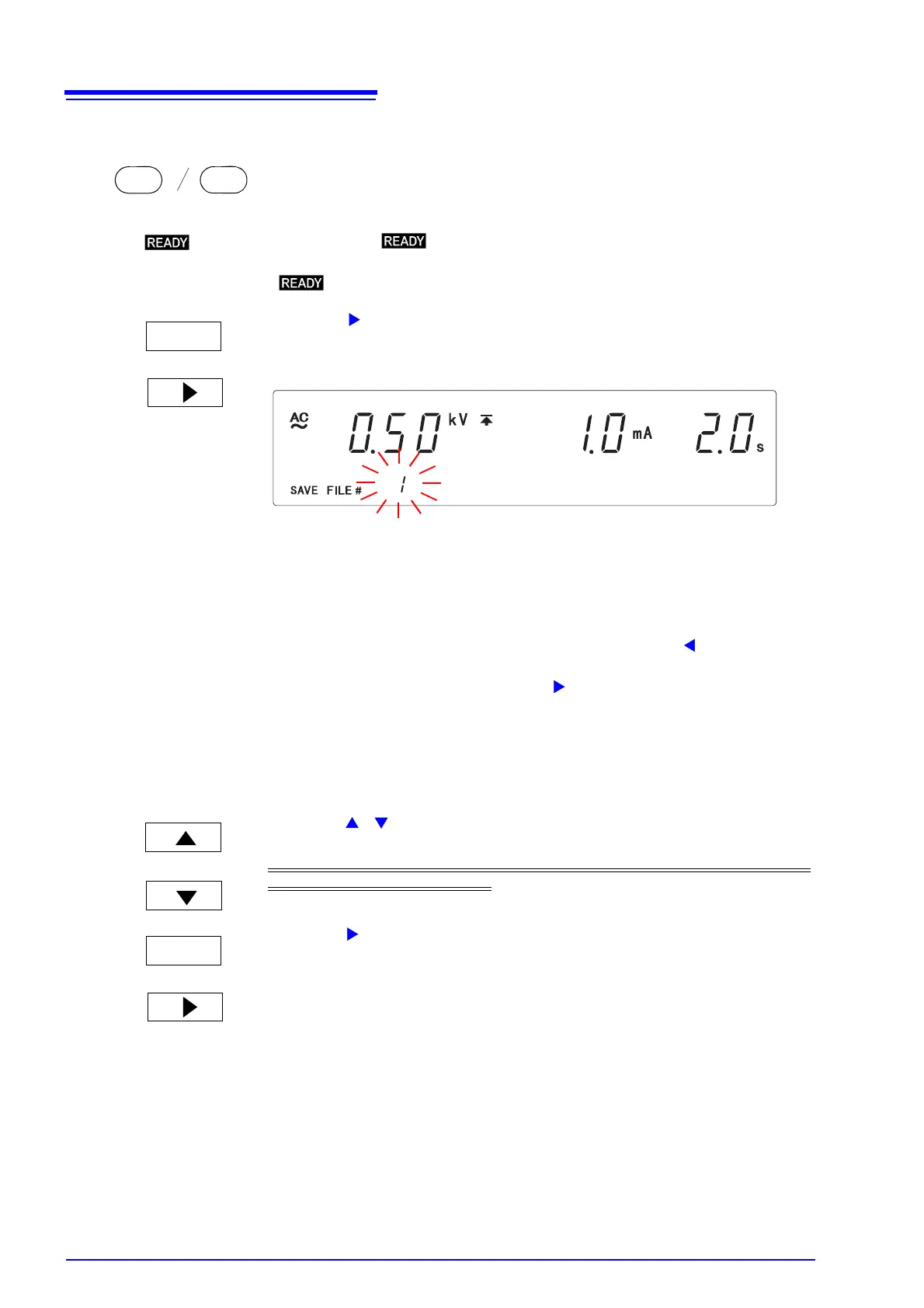

7.1 Saving the Test Conditions
100
Procedure for Saving
1.
Setting test conditions to be saved for the withstand-voltage test or insu-
lation-resistance test.
Withstand-voltage test : "3.1 Setting the Test-Conditions" (p. 31)
Insulation-resistance test : "4.1 Setting the Test Conditions" (p. 49)
2.
( is lit)
Make sure the lamp is lit on the screen.
* will not be displayed during the Double Action setting.
3.
Press the key while holding down the SHIFT key to display the save
screen.
File No. of test conditions selected previously will be displayed.
<Ex.>
File No. of previously selected file: 1
test type: AC withstand-voltage test, test-voltage: 0.5 kV
upper-limit test value: 1.0 mA, test-time: 2.0 s
• To confirm the test-frequency and initial ramp-up value → key
• To confirm the lower-limit test value → key
• To confirm the ramp-up time and ramp-down time → ON/OFF key
• To confirm the contact check upper (lower)-limit voltage → LOCK key
(LOCAL key)
4.
Press the / keys to select the File No. to be saved.
All saved data will overwrite the old data. Confirm whether it is all right to delete
previously saved test conditions.
5.
Press the key while holding down the SHIFT key to save the test con-
ditions.
The instrument reverts to the READY state.
Press the STOP key to cancel saving.
W
I
SHIFT
+
or
SHIFT
+
