8.6 Timing Chart
117
8
At forced termination
When the evaluation status during forced completion under the optional function
mode is not ON, and when the STOP key is pressed to forcibly terminate testing,
the instrument does not change to either PASS or FAIL status, as test screening
is not performed. In this case, all evaluation signals will indicate Hi.
When this status is held even during HOLD function, it will remain Hi under the
HOLD is cancelled. In the absence of status indicators ( / / /
) -- in the SETTING state, when set values are being saved or loaded, or
when settings are being made for the optional functions -- all signals become
HIGH level.

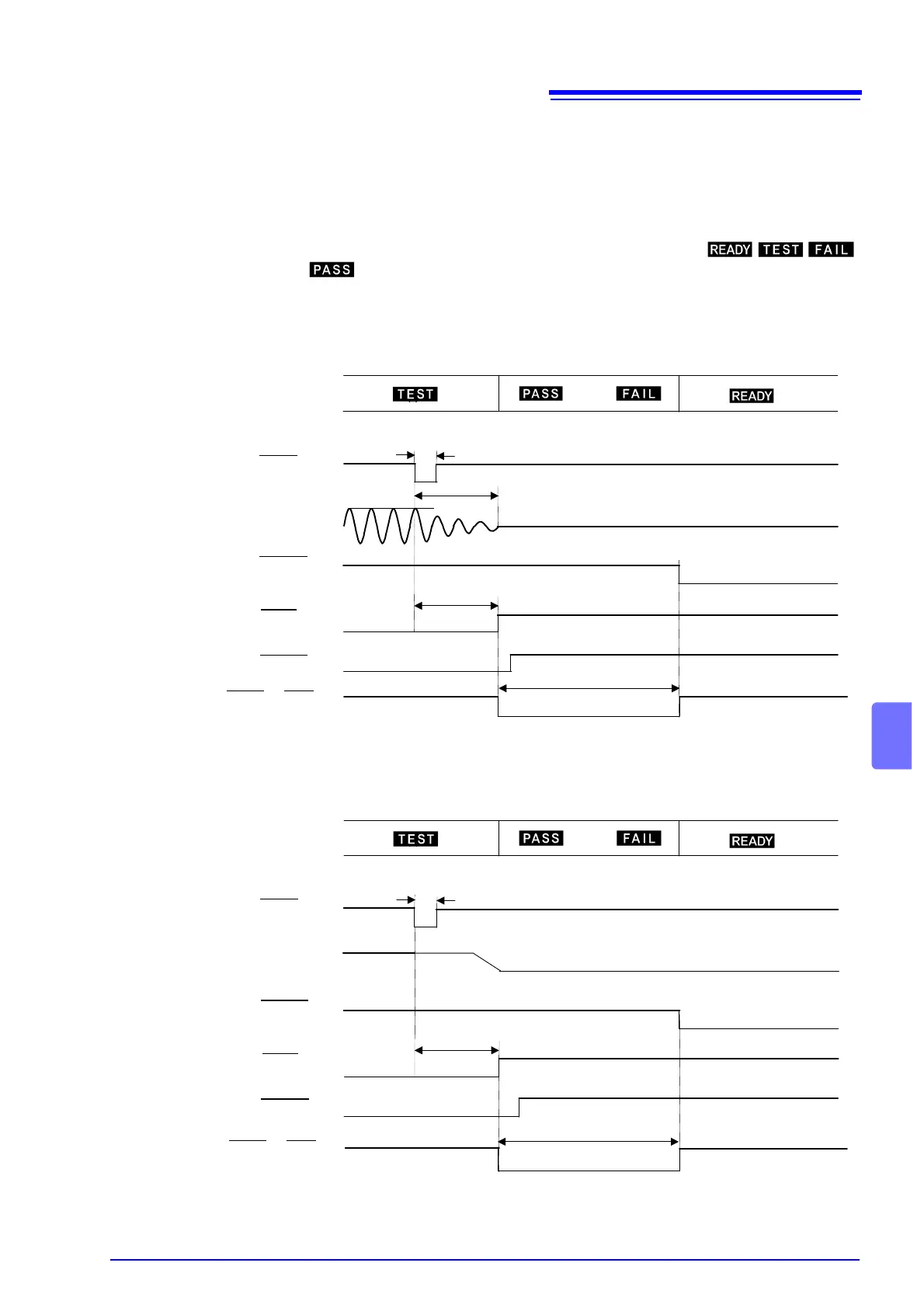

Withstand-voltage test (When the hold function is not used)
Insulation-resistance test (When the hold function is not used)


READY
TEST
H.V.ON
PASS or FAIL
STOP
40 ms min.
ramp-down time
ramp-down time
Approx. 300 ms
N
ote: When there is an evaluation result for a forced termination
or
Voltage
Output


40 ms min.
READY
TEST
H.V.ON
STOP
N
ote: When there is an evaluation result for a forced termination
30 ms max.
Approx. 300 ms
or
Voltage
Output
PASS
or FAIL
