9.4 Message Reference
184

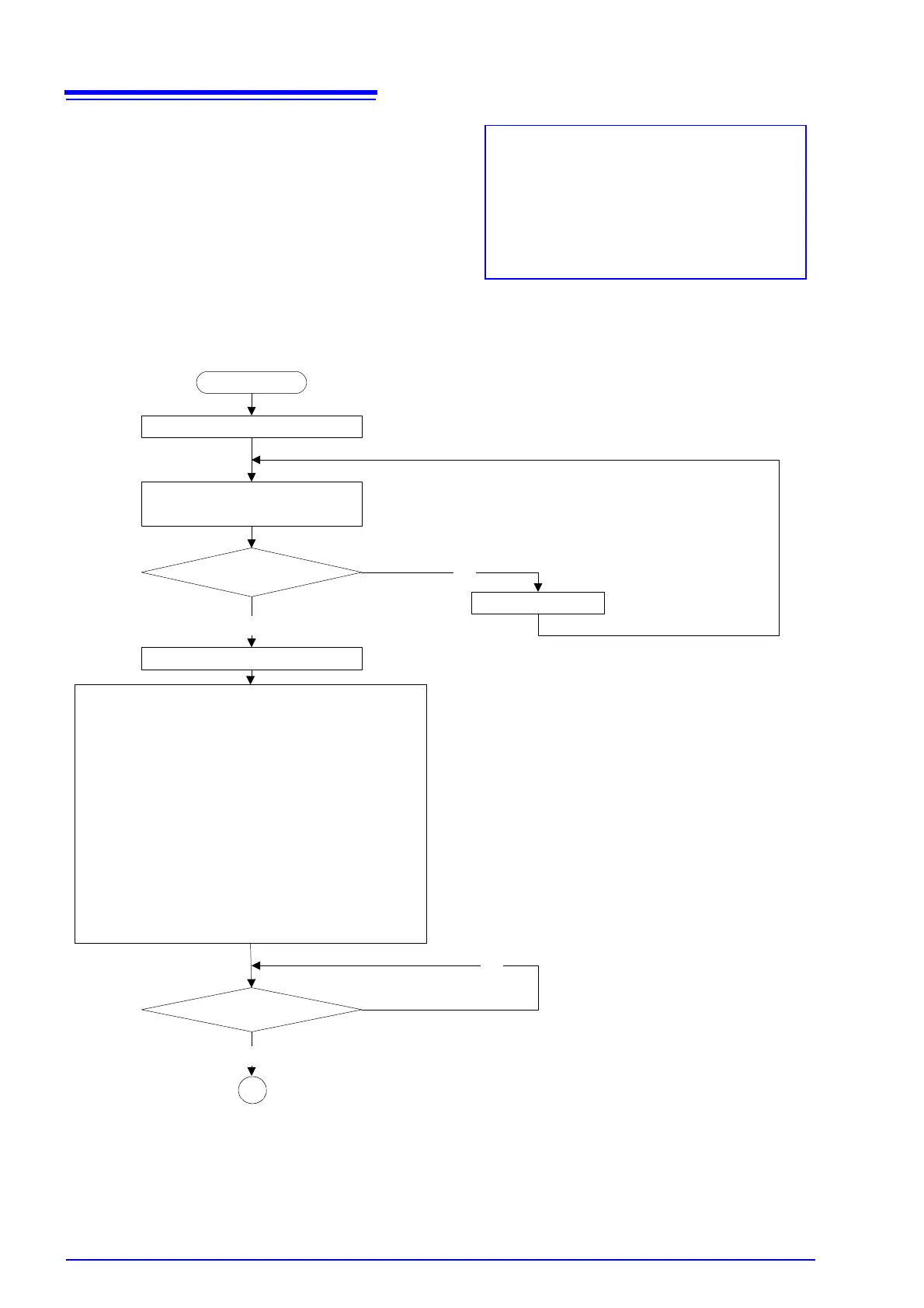

Open communication line
No
Response=
WREADY or IREADY?
Confirm status:
WREADY or IREADY
HOLD release
Yes
Test setting
Header : OFF
Upper-limit test value ON/OFF: OFF
Lower-limit test value : 1.00 MΩ
Test-voltage : 500 V
(Upper-limit test value : 10.00 MΩ)
(Upper-limit test value ON/OFF: ON)
Test time ON/OFF : ON
Test time : 10.0 s
Delay time ON/OFF : ON
Delay time : 1.0 s
Upper-limit voltage for contact check ON/OFF: ON
Lower-limit voltage for contact check ON/OFF: ON
Transmission ":STAT?"
Transmission ":STOP"
Transmission ":HEAD OFF"
Transmission ":INS:RUPP OFF"
Transmission ":CONF:INS:RLOW 1.00"
Transmission ":CONF:INS:VOLT 500"
(Transmission ":CONF:INS:RUPP 10.00")
(Transmission ":INS:RUPP ON")
Transmission ":INS:TIM ON"
Transmission ":CONF:INS:TIM 10.0"
Transmission ":INS:DEL ON"
Transmission ":CONF:INS:DEL 1.0"
Transmission ":INS:CNHI ON"
Transmission ":INS:CNLO ON"
No
Any key input?
Start
Select the Test mode： I mode
Transmission ":MODE MINS"
Yes
Basic settings and measurements of insulation-
resistance test
Set the test settings of 3174 as follows.
• Test-voltage : 500 V
• Lower-limit test value: 1.00 M
Ω (Upper-limit value: 10.00 MΩ)
* When the figure in the bracket show the upper-limit value is
also set.
• Test time : 10.0 s
• Delay time : 1.0 s
• Upper-limit voltage for contact check: ON
• Lower-limit voltage for contact check: ON
Execute the test once, and show the data on the display.
Pre-set the contents of the Optional Function Set-
ting as follows.
• Double Action: 0 (OFF)
• Interface Command "START": 1 (Start com-
mand valid, changing the voltage supplied
using keys not possible)
• PC interface: Set the PC interface to be used.
When GP-IB is used, set the GP-IB address.
* Turn it off once.
2
To Next Page
