Appendix1 Remote Control Box
A2

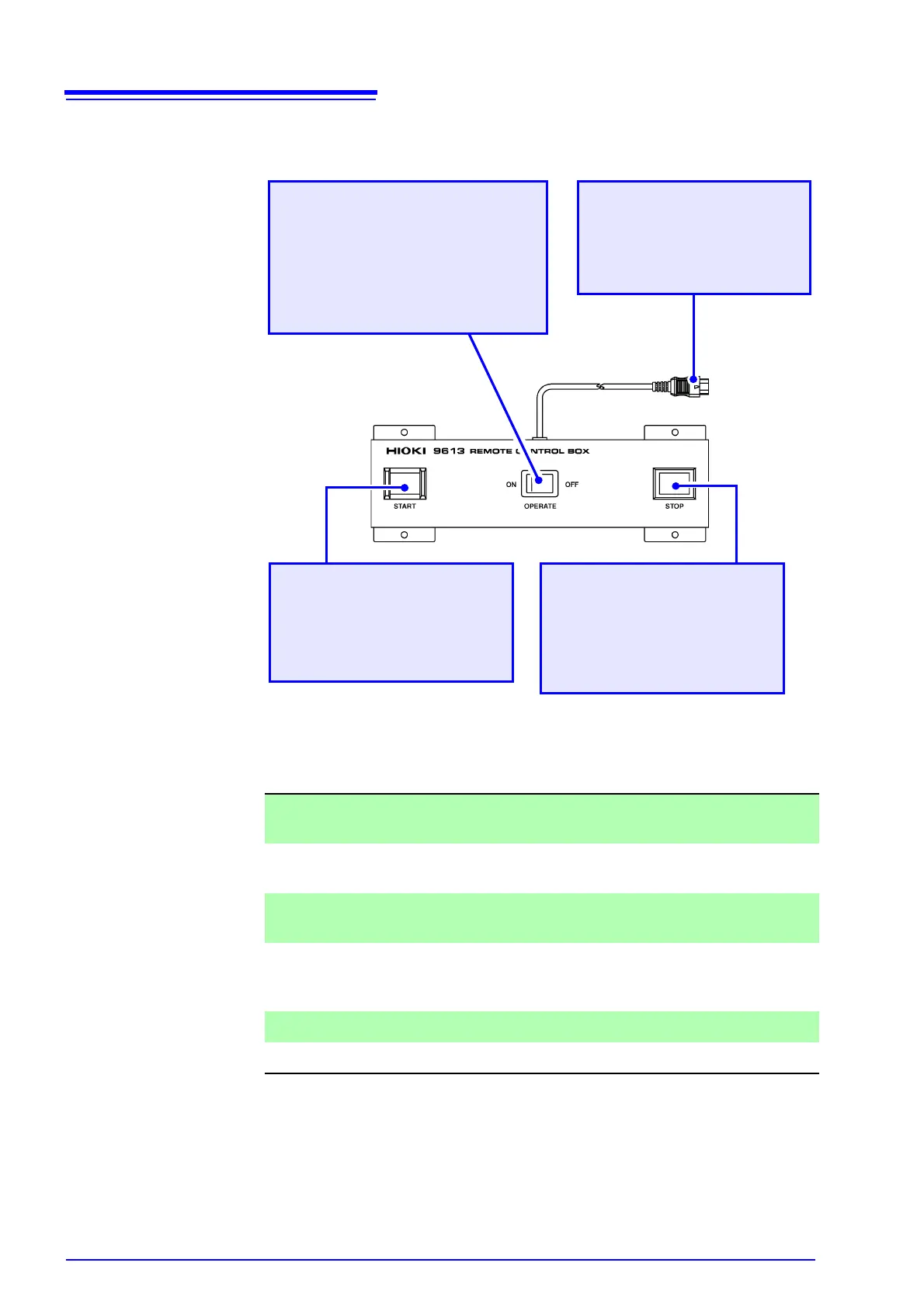

The 9613 Remote Control Box (Single)
Specifications
Operating temperature
and humidity
0 to 40°C (32 to 104°F), 80%RH or less (no conden-
sation)
Storage temperature
and humidity
-10 to 50°C (14 to 122°F), 90%RH or less (no con-
densation)
Operating environ-
ment
Indoors, Up to 2000 m (6562-ft.)
Dimensions Approx. 193W x 50H x 30D mm
(7.60”W x 1.97”H x 1.18”D)
(not including protrusions)
Mass Approx. 500 g (17.6 oz.)
Cord length Approx. 1.5 m (59.06”)
Remote Control Connection
Plug
Connect to the remote control
connection terminal on the in-
strument.
OPERATE switch
Used to enable remote-control opera-
tion. When this switch is ON, the
START and STOP keys for remote
control are active.
Changing this switch during testing
will forcibly terminate the test.
STOP switch
Stop a test.
Works in the same manner as the
STOP key on the instrument. The
STOP switch is lit during a test or
when a voltage is being output.
START switch
Start a test.
Works in the same manner as the
START key on the instrument.
