Appendix1 Remote Control Box
A3
Appendix
Index
The 9614 Remote Control Box (Dual)
The 9614 Remote Control Box (Dual) comes with two START switches which
must both be pressed before the test can start, thus making it a safer way to con-
duct a test. Combine with the Momentary Out Optional Function for better safety.
See "6.1.2 Momentary Out" (p. 80)
Specifications
Operating tempera-
ture and humidity
0 to 40°C (32 to 104°F), 80%RH or less (no con-
densation)
Storage temperature
and humidity
-10 to 50°C (14 to 122°F), 90%RH or less (no con-
densation)
Operating environment Indoors, Up to 2000 m (6562-ft.)
Dimensions Approx. 270W x 50H x 30D mm
(10.63”W x 1.97”H x 1.18”D)
(not including protrusions)
Mass Approx. 700 g (24.7 oz.)
Cord length Approx. 1.5 m (59.06”)

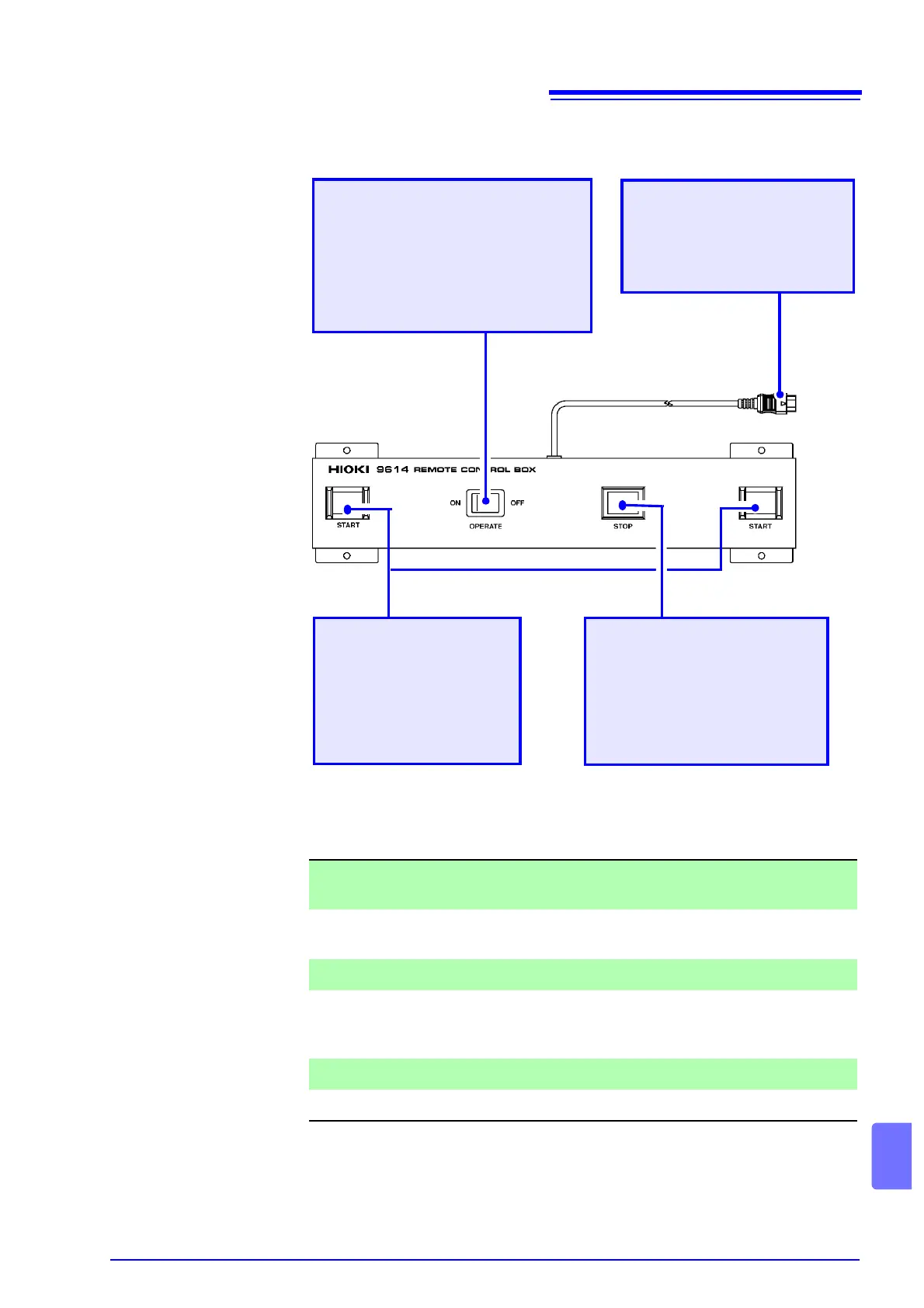

OPERATE switch
Used to enable remote-control opera-
tion. When this switch is ON, the
START and STOP keys for remote
control are active.
Changing this switch during testing
will forcibly terminate the test.
START switch
When both keys are
pressed simultaneously,
the test will start.
Works in the same manner
as the
START key on the
instrument.
STOP switch
Stop a test.
Works in the same manner as the
STOP key on the instrument. The
STOP switch is lit during a test or
when a voltage is being output.
Remote Control Connection
Plug
Connect to the remote control
connection terminal on the in-
strument.
