Appendix2 List of Optional Functions
A6

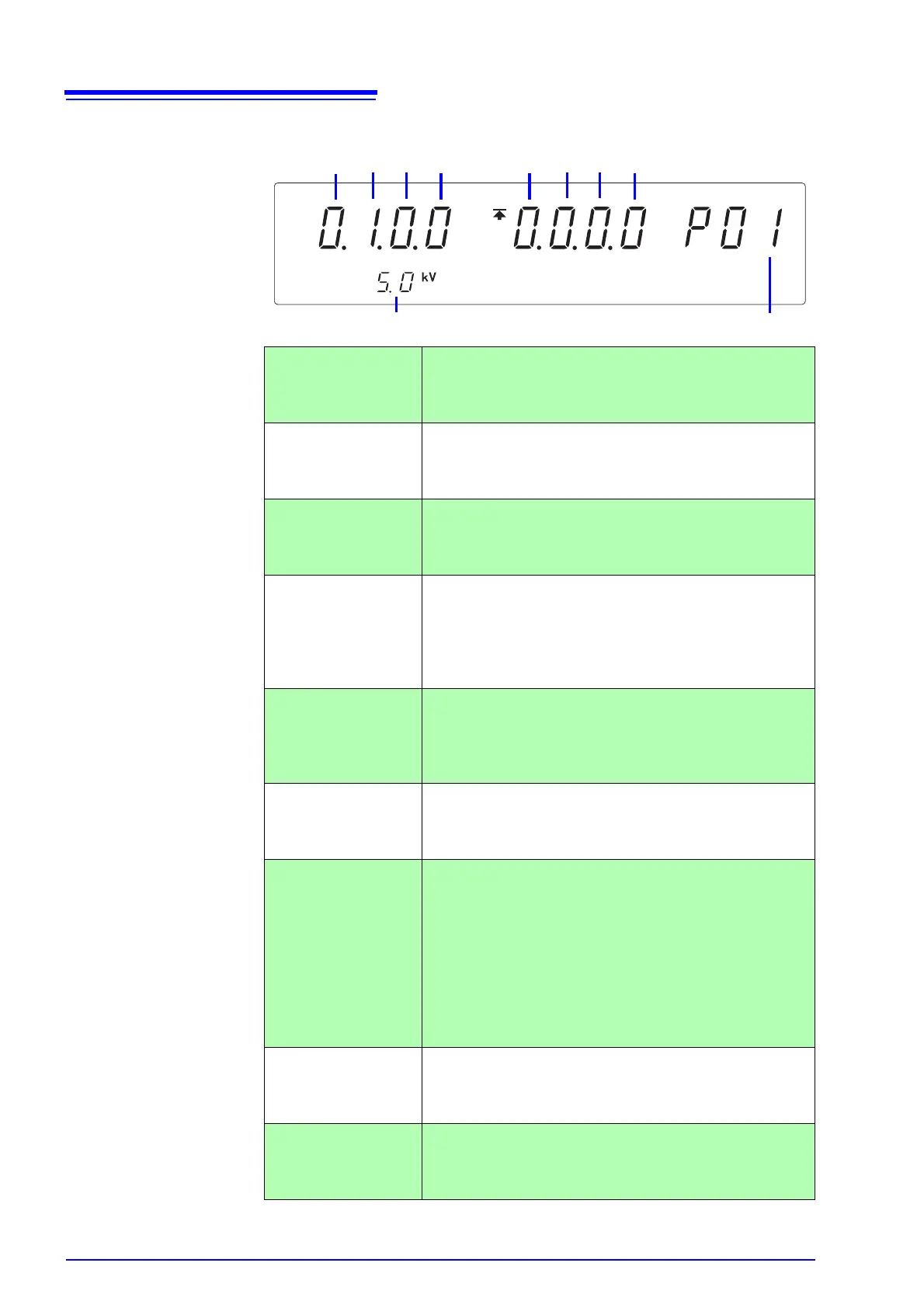

Optional Screen (page 1)
(1) Pass hold
function
This status will be retained in a PASS status. Use this
setting to confirm test evaluations and evaluation values.
0: OFF (Initial setting)
1: ON
(2) Fail hold function
This status will be retained in a FAIL status. Use this set-
ting to confirm test evaluations and evaluation values.
0: OFF
1: ON (Initial setting)
(3) STOP hold
function
Retains the value when the test has been forcibly termi-
nated by pressing the
STOP key during the test.
0: OFF (Initial setting)
1: ON
(4) Momentary output
The momentary out function allows voltage output only
while the
START key is held down.
The
START key on the remote control or the START sig-
nal via external I/O has the same effect.
0: OFF (Initial setting)
1: ON
(5) Double action
Enable this function to allow testing to start only when
the
START key is pressed within about 0.5 seconds after
the
STOP key.
0: OFF
1: ON (Initial setting)
(6) Fail mode
Enable this function to restrict hold release to the
STOP
key on the main instrument.
0: OFF (Initial setting)
1: ON
(7) Interface
command
"START"
Used to make interface command “START” valid or non-
valid.
0: Start command invalid (Initial setting),
changing the voltage supplied using keys not possible
1: Start command valid,
changing the voltage supplied using keys not possible
2: Start command invalid,
changing the voltage supplied using keys possible
3: Start command valid,
changing the voltage supplied using keys possible
(8) Inter-lock function
Enable this function to activate the external I/O interlock
terminals.
0: OFF (Initial setting)
1: ON
(9) Output-voltage re-
stricting value
Enable this function to set the upper-limit value for the
output voltage (Withstand-voltage test only).
0.2 to 5.0 kV (Can be set in 0.1-kV steps)
(Initial setting: 5.0 kV)
