Appendix2 List of Optional Functions
A7
Appendix
Index

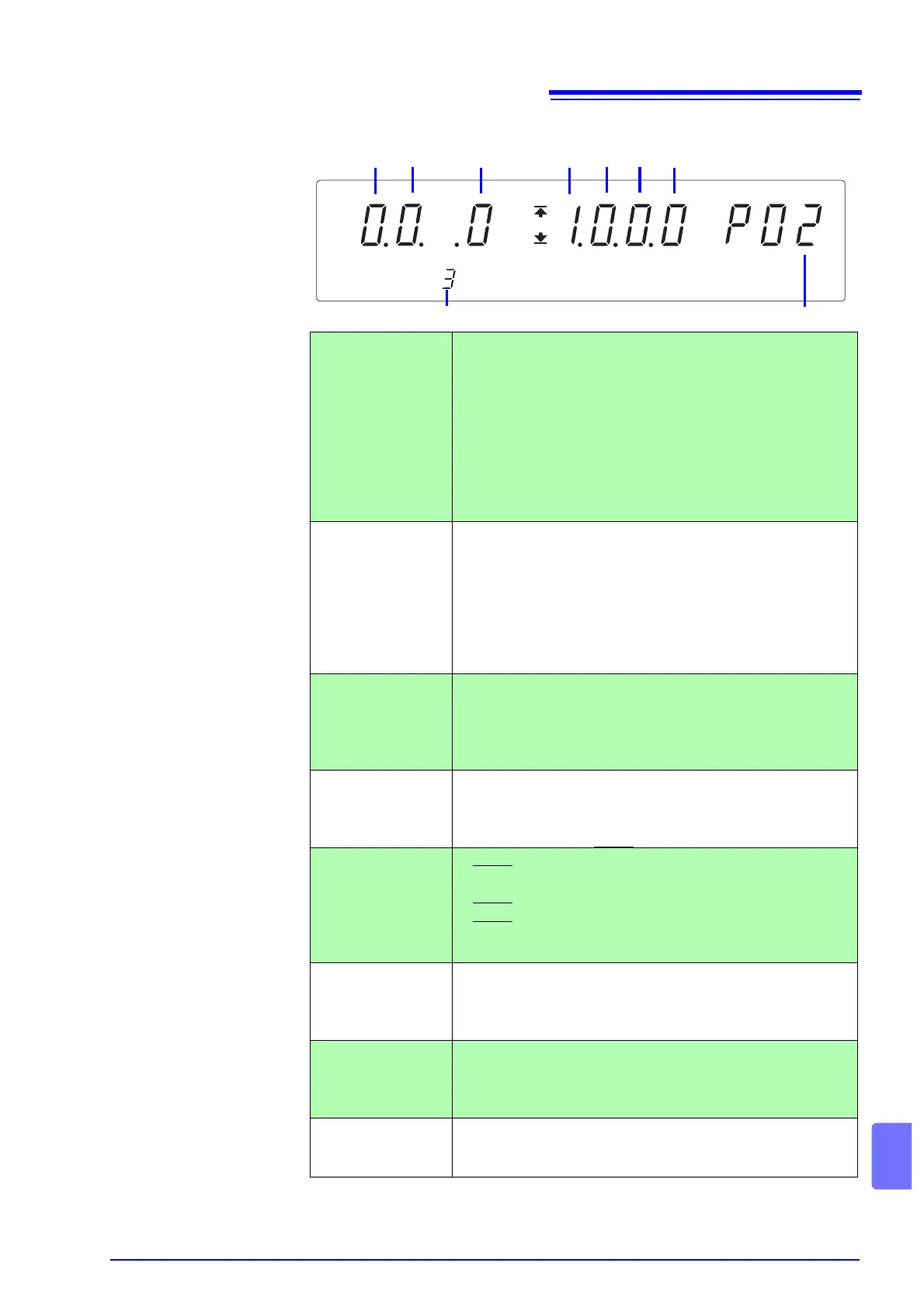

Optional Screen (page 2)
(10) Insulation-re-
sistance test
measurement
range
Select whether you want to use a fixed or an automatic
range as the insulation-resistance test measurement
range. The fixed ranges are automatically selected de-
pending on the preset lower-limit value. Auto range switch-
es between ranges depending on the measured value, but
it takes time to display this value, since it is displayed after
the range is switched. (This takes approximately 1.3 sec-
onds.)
0: Fixed range (Initial setting)
1: Auto range
(11) Insulation-re-
sistance test
termination
mode
When performing an insulation-resistance test, set whether
you want to conduct the test for the set test time regardless
of the decision, terminate the test when PASS screening is
performed, or terminate the test when FAIL screening is
performed. This mode is effective when the test time is set.
0: Test for set time (Initial setting)
1: Terminate test at PASS screening
2: Terminate test at FAIL screening
(13) PC interface
Enable this function to select a PC interface to be used.
When GP-IB is selected, set the GP-IB address.
0: RS-232C (9600 bps) (Initial setting)
1: RS-232C (19200 bps)
2: GP-IB
(14) START pro-
tection func-
tion
Select whether START is to be invalid during the discharge
time upon completion of each test.
0: OFF
1: ON (Initial setting)
(15) TEST-signal
output
Set the external I/O TEST signal output period.
0: TEST signal ON, while all test time including ramp-up
and ramp-down time (Initial setting)
1: TEST signal ON, while set test time
2: TEST signal ON, only while ramp-up and ramp-down
time
(16) Evaluation
output in a
forced termi-
nation
Determines whether to evaluate the test or not when the
test is forcibly terminated by the STOP key.
0: No evaluation in a forced termination (Initial setting)
1: Evaluate even in a forced termination
(17) Test Continu-
ation status
Determines whether to continue testing or not when the
evaluation is FAIL.
0: Stop the test when evaluation is FAIL (Initial setting)
1: Continue the test with FAIL evaluation
(18) GP-IB
address
Sets address to be used when GP-IB is chosen in the PC
interface.
GP-IB address: 0 to 30 (Initial setting: 3)
Page No.
(18)
To Next Page
