Appendix2 List of Optional Functions
A8

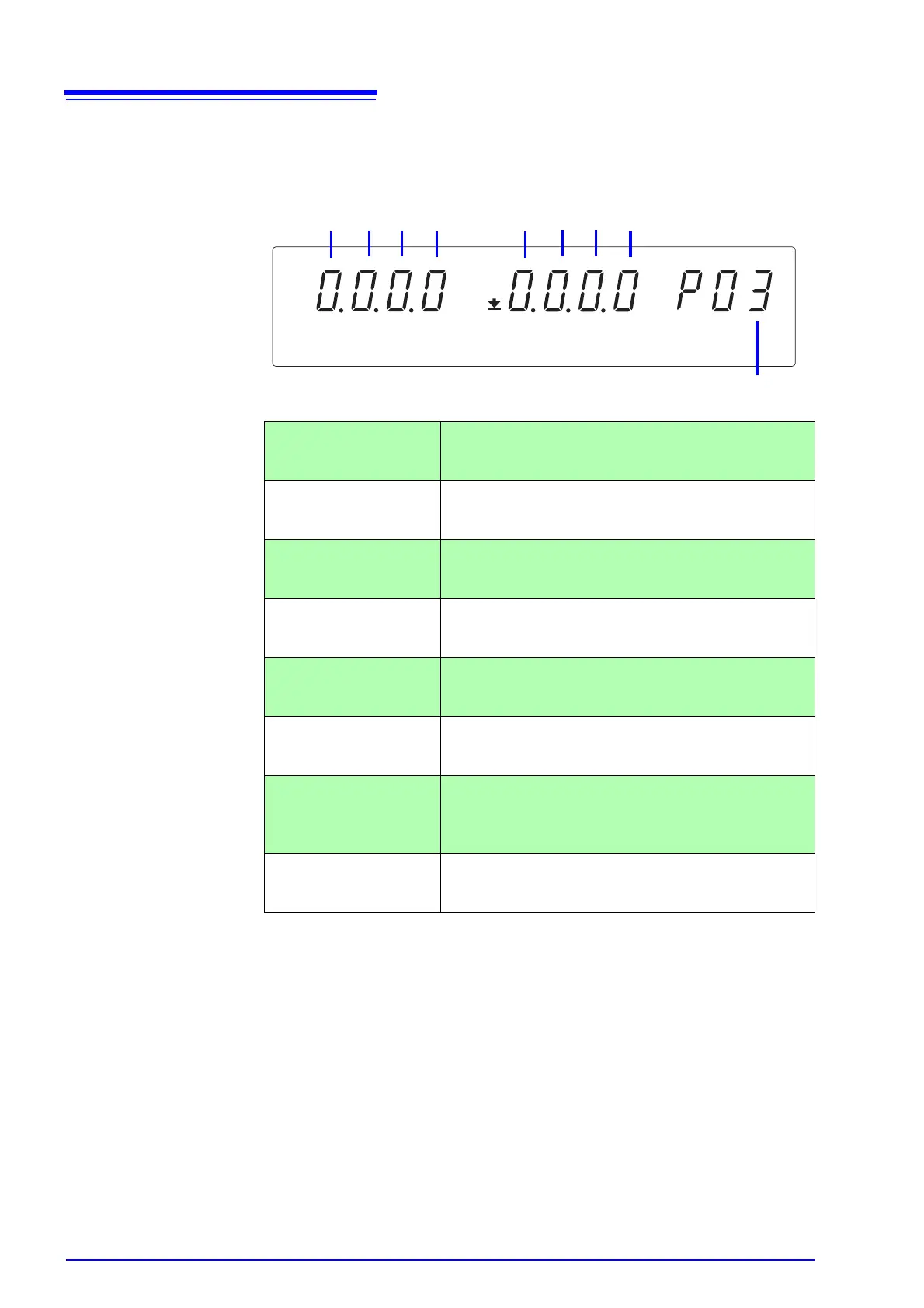

Optional Screen (page 3)
See "6.9 Status Out" (p. 96)
(19) H.V.ON
High voltage supply
0: OFF (Initial setting)
1: ON
(20) TEST
Test in progress
0: OFF (Initial setting)
1: ON
(21) PASS
PASS state
0: OFF (Initial setting)
1: ON
(22) FAIL
FAIL state
0: OFF (Initial setting)
1: ON
(23) INT.LOCK
Interlock state
0: OFF (Initial setting)
1: ON
(24) READY
READY state
0: OFF (Initial setting)
1: ON
(25) EXT.CONT
When controlled externally.
(“
EXT” lights up on the screen)
0: OFF (Initial setting)
1: ON
(26) POWER-ON
When the power is switched on.
0: OFF (Initial setting)
1: ON
Page No.
(19)
(20)
(22)
(21)
(23)
(24)
(26)
(25)
