Appendix2 List of Optional Functions
A9
Appendix
Index

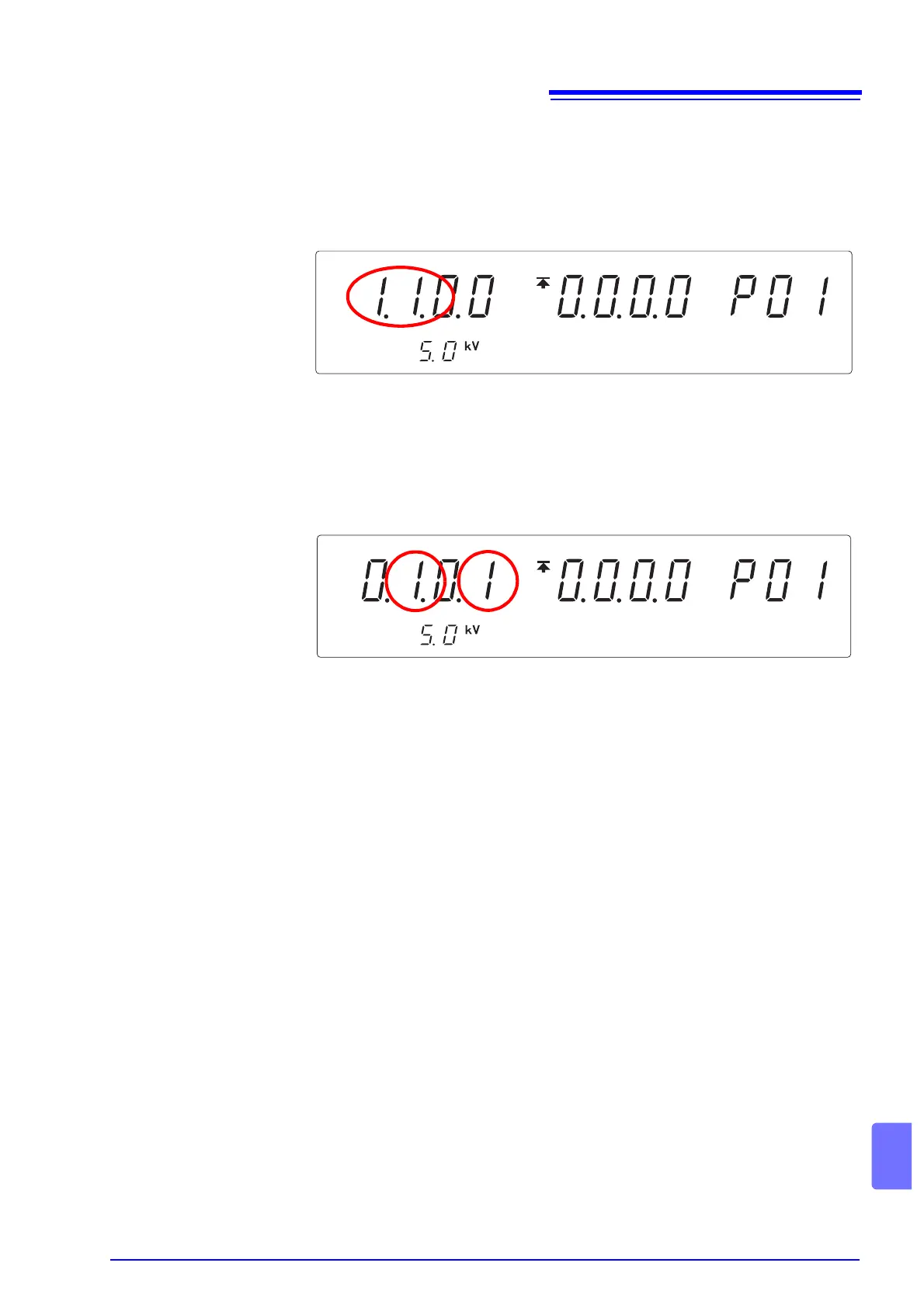

Example of a setting for optional functions
The following describes how 3174 optional functions are used for testing.
Various combinations of optional functions are possible for testing.
<Ex. 1>
To confirm the
test results
PASS Hold Function : 1 (ON)
FAIL Hold Function :
1 (ON)
PASS or FAIL state is held, allowing inspection of test results.
<Ex. 2>
Safe testing by
remote control
FAIL Hold Function : 1 (ON)
Momentary Out :
1 (ON)
Hold down the
START key during the test, as the Momentary-Out function is set.
The 9614 Remote Control Box (Dual) must be operated with both hands during
the test. This prevents high-voltage devices such as the probe and tested object
from coming into contact with the hands.
The FAIL Hold function must be cancelled using the
STOP key on the instru-
ment, as the FAIL Hold is set. The use of the FAIL mode enables the FAIL state
to be set.
