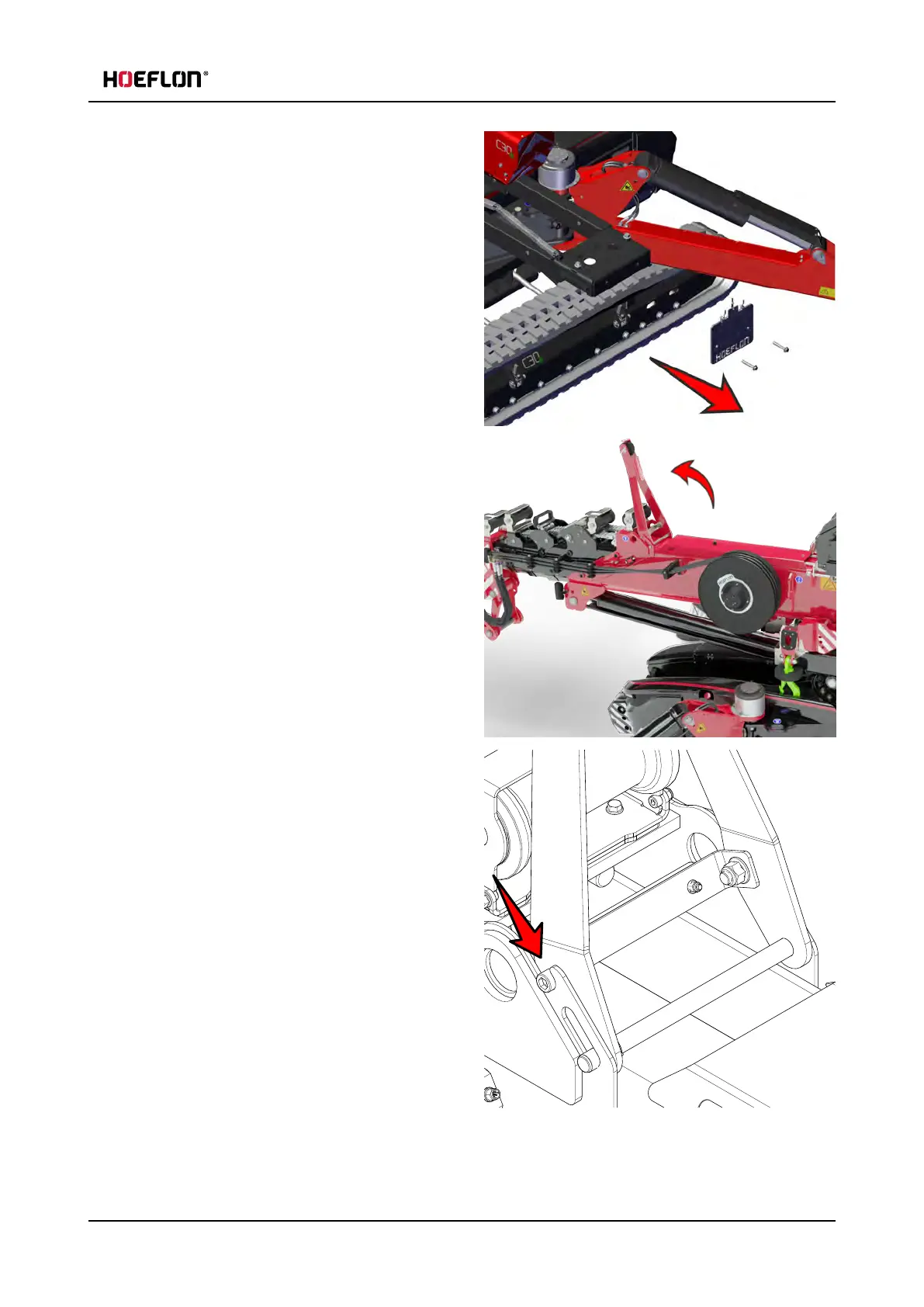

8.13 Removing and installing the counterweight
6. Remove the counterweight retainer plate.
7. Fully retract the frame of the counterweight.
8. Remove the nut from the counterweight lifting
bar.
9. Turn the counterweight lifting bar out.
10. Push the counterweight lifting bar so that it locks
in position.
User guide - C30e Compact crane 119
