QDR

4500 Technical Manual

3-20

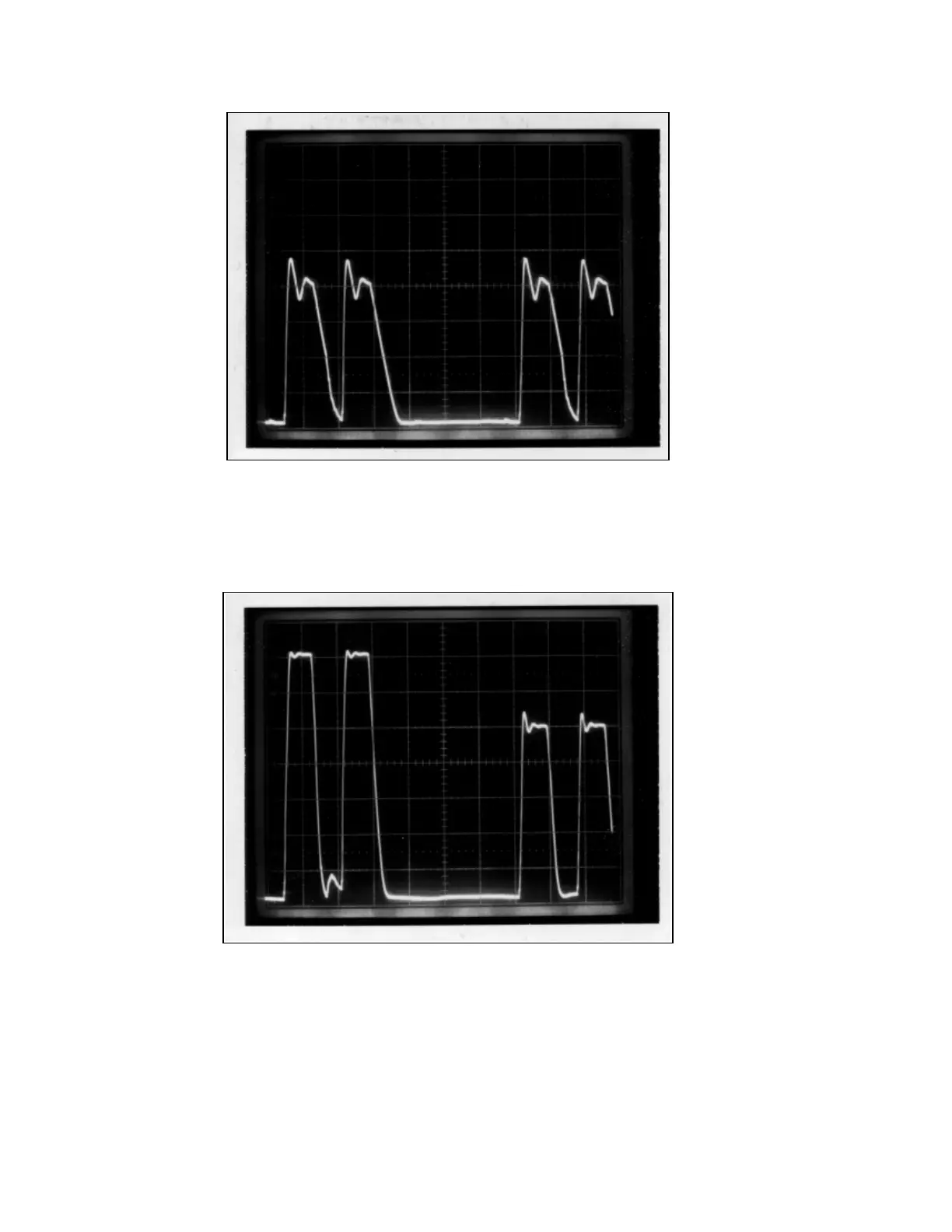

Figure 3-17. Peak Potential Mode 4

10.

Press <F1> to turn on the X-rays.

11.

Observe the oscilloscope. You should see a trace similar to Figure 3-18, alternating

pulses, approximately 4ms in duration, with a peak amplitude of 14v and 10v

respectively (corresponding to 140kVp and 100kVp inside the tank).

Figure 3-18. Peak Potential Mode 3

If the scope trace seen in either Figure 3-17 or Figure 3-18 is not as shown, the system may have

a faulty X-ray Controller or tank.

Note:

Enter this information into

The Radiation Measurement Report

(see page 3-28).
