Load components from Project
Loading IOLINK
148 Experion C300 Controller User's Guide R301.1
Honeywell 11/06
Step Action Result
TIP

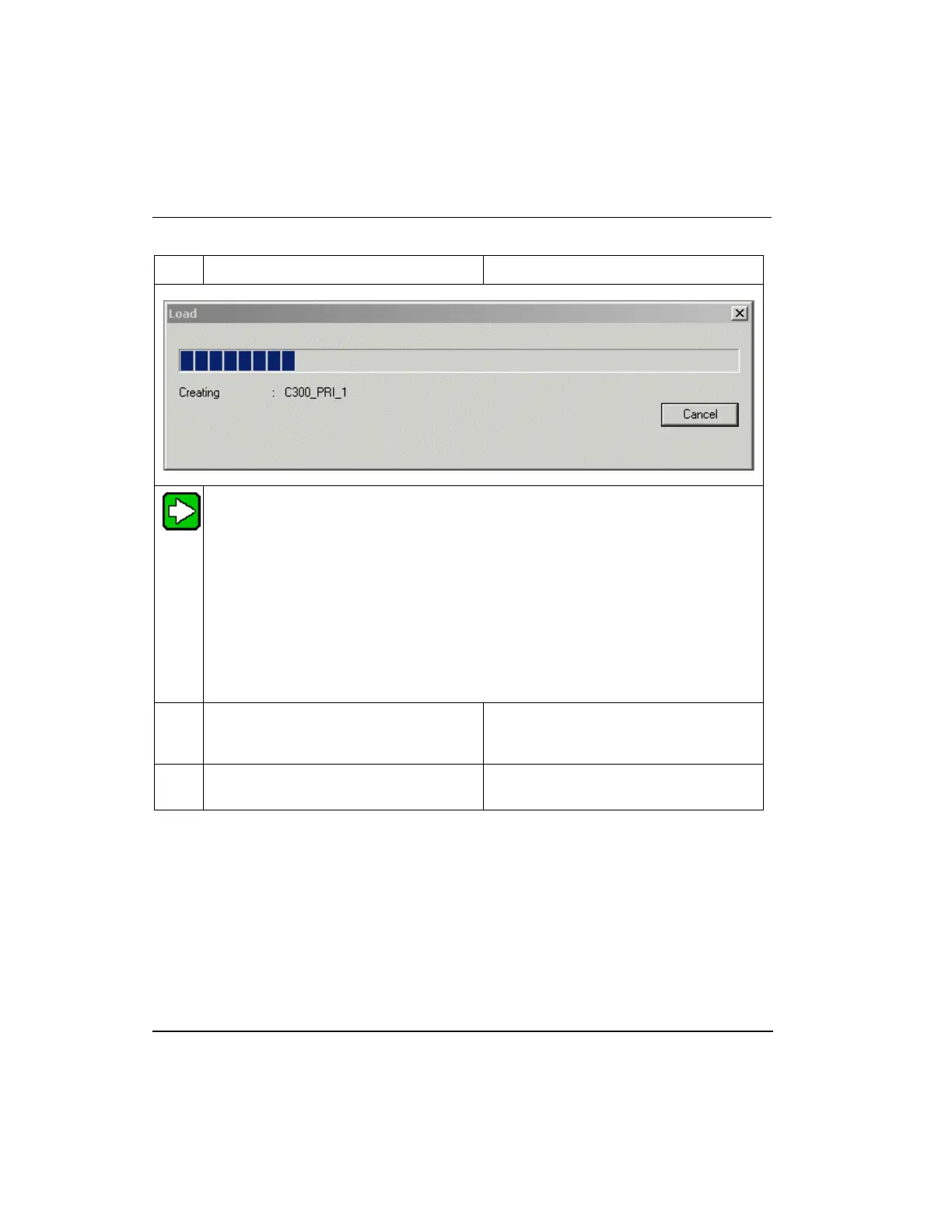

You can also check load progress through the four-character display on the faceplate
of the C300 module. The display changes from NODB to NOEE to IDLE upon a
successful Load.
If errors are detected, they will be displayed in the Load progress dialog and you will
be asked if you want to continue the load or cancel, depending on the nature of the
error. We suggest that you cancel the load and identify and fix the errors. Each
message contains a brief description and includes an error code in parentheses. Note
the last number in the string. In some cases, more information about the code number
may be included in the Control Builder Notifications Reference document in
Knowledge Builder.
4
Once the load completes and the dialog
box closes, click the Monitoring tab.
C300 icon now appears in Monitoring
tab. The default state for a loaded C300
is IDLE or color code blue.
5
Repeat this procedure for other control
components as required.
Loading IOLINK
Use the following general procedure to load an I/O Link (IOLINK) block. The load
procedure is similar for all I/O interface-related components.
Prerequisites
• Control Builder is running
• The C300 Controller block is loaded.
