5 Installation and commissioning
116
HSD S.p.A. © - h0104k01a.fm120718

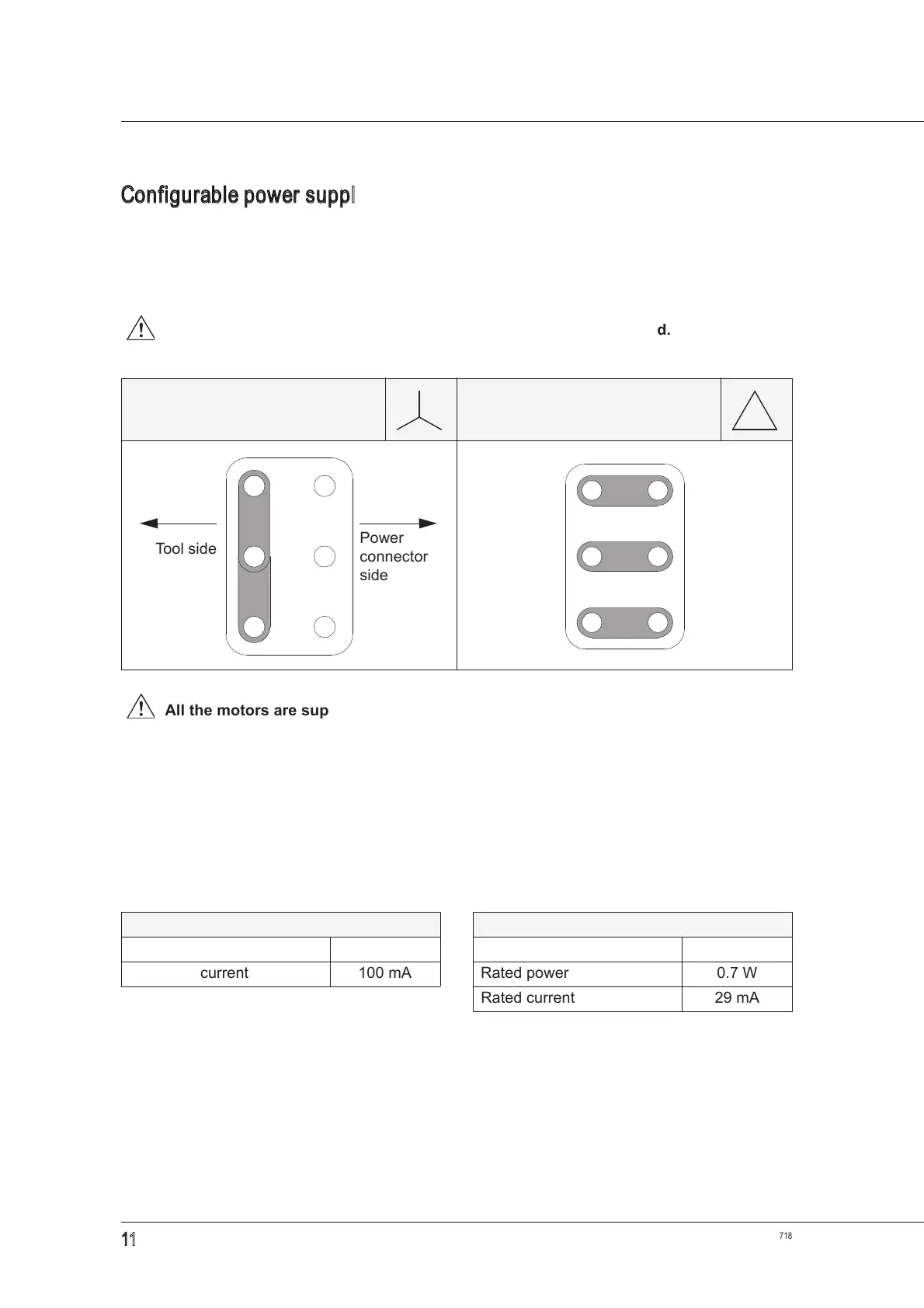

Configurable power supply terminal board 220/380V
Certain versions are available with power supply terminals suitable for star or delta configuration,
to be used with rated supply voltages of 380V or 220V. The position of the configurable terminal
board is shown in paragraph
3.4.7 “Variations with configurable power supply terminal board 220/
380V”
.
Before installing, check the type of connection in the terminal board.
All the motors are supplied with a star connection.
5.8.4 Tool release button
The button is located on the electrical connectors box, as shown in paragraphs 3.4.5 “Variations
with HSD electric connectors”
, 3.4.6 “Variations with MIL standard electric connectors” and 3.4.7
“Variations with configurable power supply terminal board 220/380V”
.
The button is only fitted in versions with electrical connectors.
When the button is pressed, the button power supply pin is connected to the button output pin (see
the
“Signal connector diagram (fixed part)” paragraphs on page 113 or page 115, depending on the
type of connector).
STAR CONNECTION
(rated voltage 380V)
FACTORY PARAMETERS
DELTA CONNECTION
(rated voltage 220V)
Button characteristics Lamp characteristics
Rated voltage 24V DC Rated voltage 24VDC
Maximum current 100 mA Rated power 0.7 W
Rated current 29 mA
Tool side
Power
connector
side
