HSD ES779 - With Motor Rating Plate FNZ4102319

3 Technical specifications and main parts
42
HSD S.p.A. © - h0102k01a.fm120718

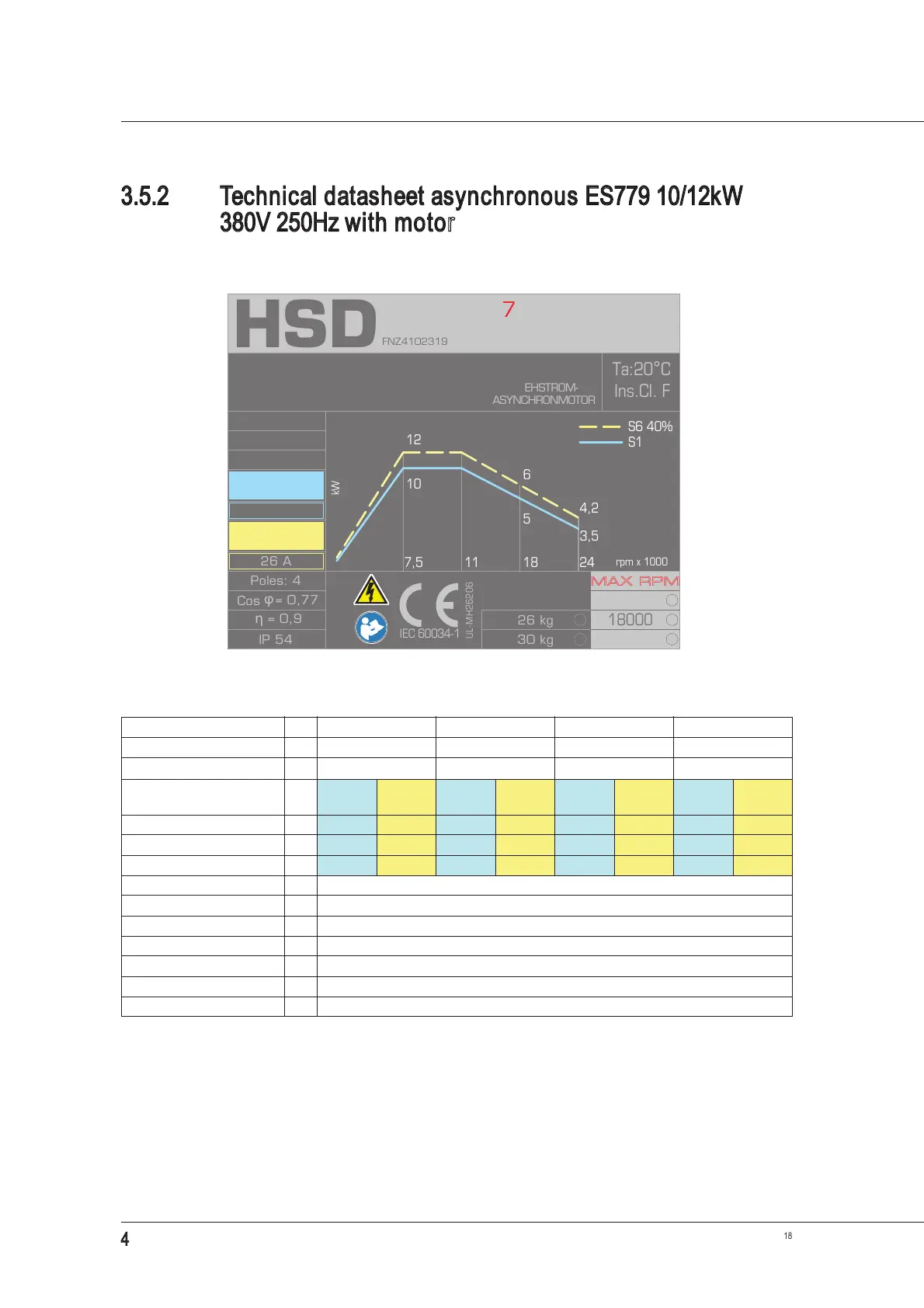

3.5.2 Technical datasheet asynchronous ES779 10/12kW
380V 250Hz with motor rating plate FNZ4102319
Motor rating plate
FNZ4102319 (SP.119.080.46.AL)
Rated voltage V 380 380 380 380
Rated frequency Hz 250 367 600 800
Rated speed*
*
The maximum speed is specified in the “MAX RPM” box of the motor rating plate affixed to the product.
rpm 7,500 11,000 18,000 24,000
Duty type
S1
cont
S6
40%
S1
cont
S6
40%
S1
cont
S6
40%
S1
cont
S6
40%
Rated power kW
10 12 10 12 5 6 3.5 4.2
Rated torque Nm
12.7 15.3 8.7 10.4 2.7 3.2 1.4 1.7
Rated current A
22 26 22 27.5 10 12 8 10
Rated efficiency K 0.9
Power factor cos M 0.77
Number of poles 4
Insulation class F
Cooling Liquid
Short-nose version kg 26
Long-nose version kg 30
ES779 4P 10 kW
Flüssigkeitsgekühlt Liquid cooling
HSD S.p.A. www.hsd.it
Via della Meccanica, 16
61122 PESARO (Italy)
380V
250Hz
7500 rpm
S1 continuous
10 kW
S6 40%
12 kW
22 A
24000
MAX RPM
ASYNCHRONOUS
3-PHASE MOTOR
DREHSTROM-
ASYNCHRONMOTOR
Poles: 4
= 0,9
IP 54
26 kg
Cos
= 0,77
425,7
10
3,5
4,2
12
rpm x 1000
kW
S6 40%
S1
18
30 kg
26 A
FNZ4102319
18000
11
5
6
Ta:20 ° C
Ins.Cl. F
η
φ
UL-MH26206
IEC 60034-1
HSD
