HSD ES779 - ES789, with Free Cables, with Fixing Bores

3 Technical specifications and main parts
34
HSD S.p.A. © - h0102k01a.fm120718

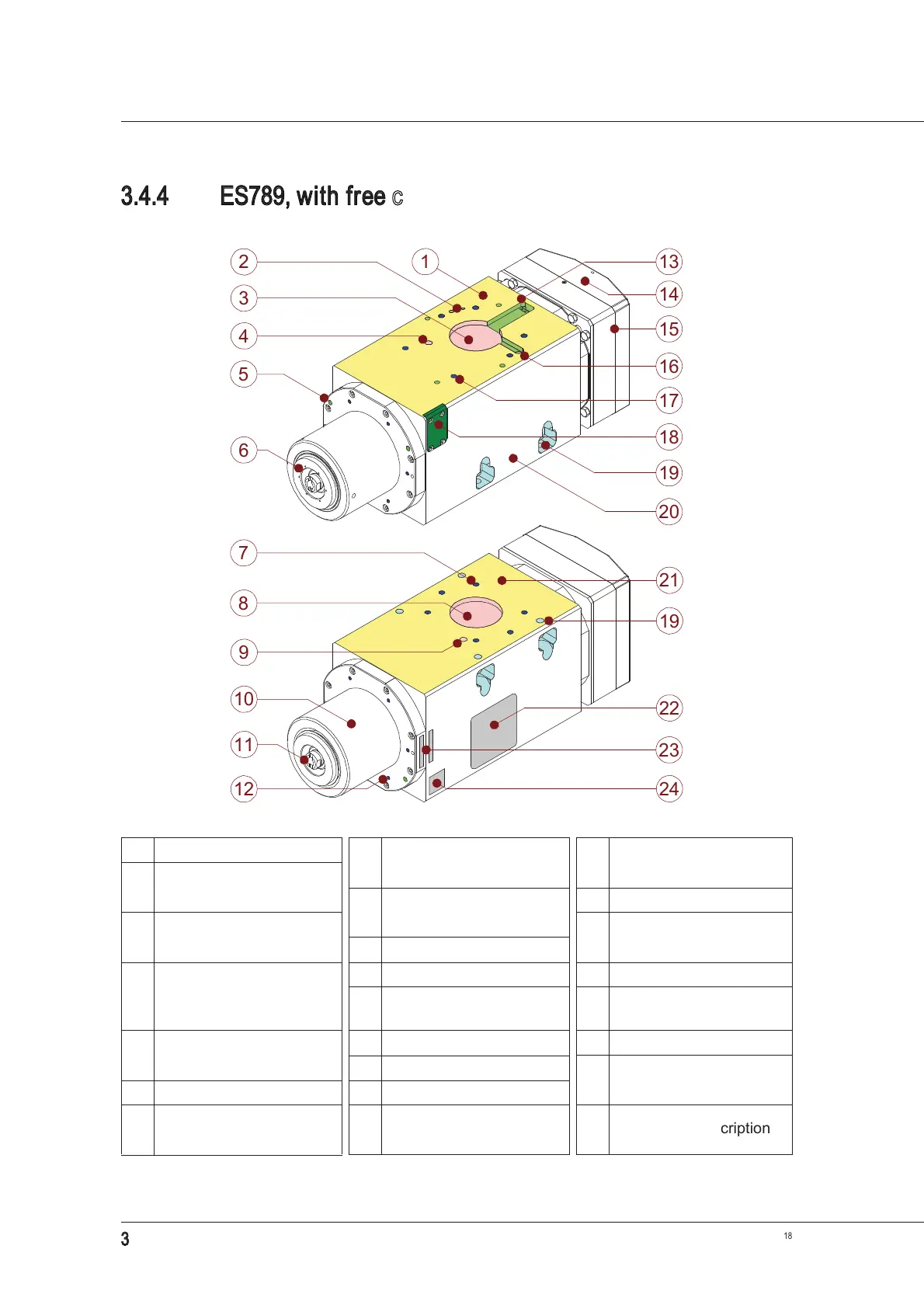

3.4.4 ES789, with free cables, with fixing bores
1 Support surface
8
Positioning bore Ø60 H8
depth 6
17
6 fixing bores M8 thread
depth 12
2
6 inlet/outlet holes for
compressed air and fluids
9
Positioning bore Ø8 H7
depth 10
18 Encoder compartment
3
Positioning bore Ø60 H8
depth 6
19
4 through fixing bores
Ø8.5
10 Nose
4
Positioning bore Ø8 H7
depth 10
11 HSK collet 20 Casing
12
6 fixing holes M5 for
accessories
21 Support surface
5
2 bores* for tool
lubricant-coolant outlet
*
M6 or G1/8”, depending on the version; check the technical data sheet.
13 Motor cable positioning 22 Motor rating plate
14 Sensors area
23
Serial
(or register) number
6 Shaft 15 Cylinder
7
6 fixing bores M8 thread
depth 12
16 Sensor cable positioning 24 Tool holder description
3
2 1 13
17
16
18
19
20
15
14
4
6
8
7
12
21
19
23
24
22
11
10
9
5
