HSD ES779 - Technical Datasheet Asynchronous ES779 13.5;16.2 Kw 380 V 400 Hz

3 Technical specifications and main parts
52
HSD S.p.A. © - h0102k01a.fm120718

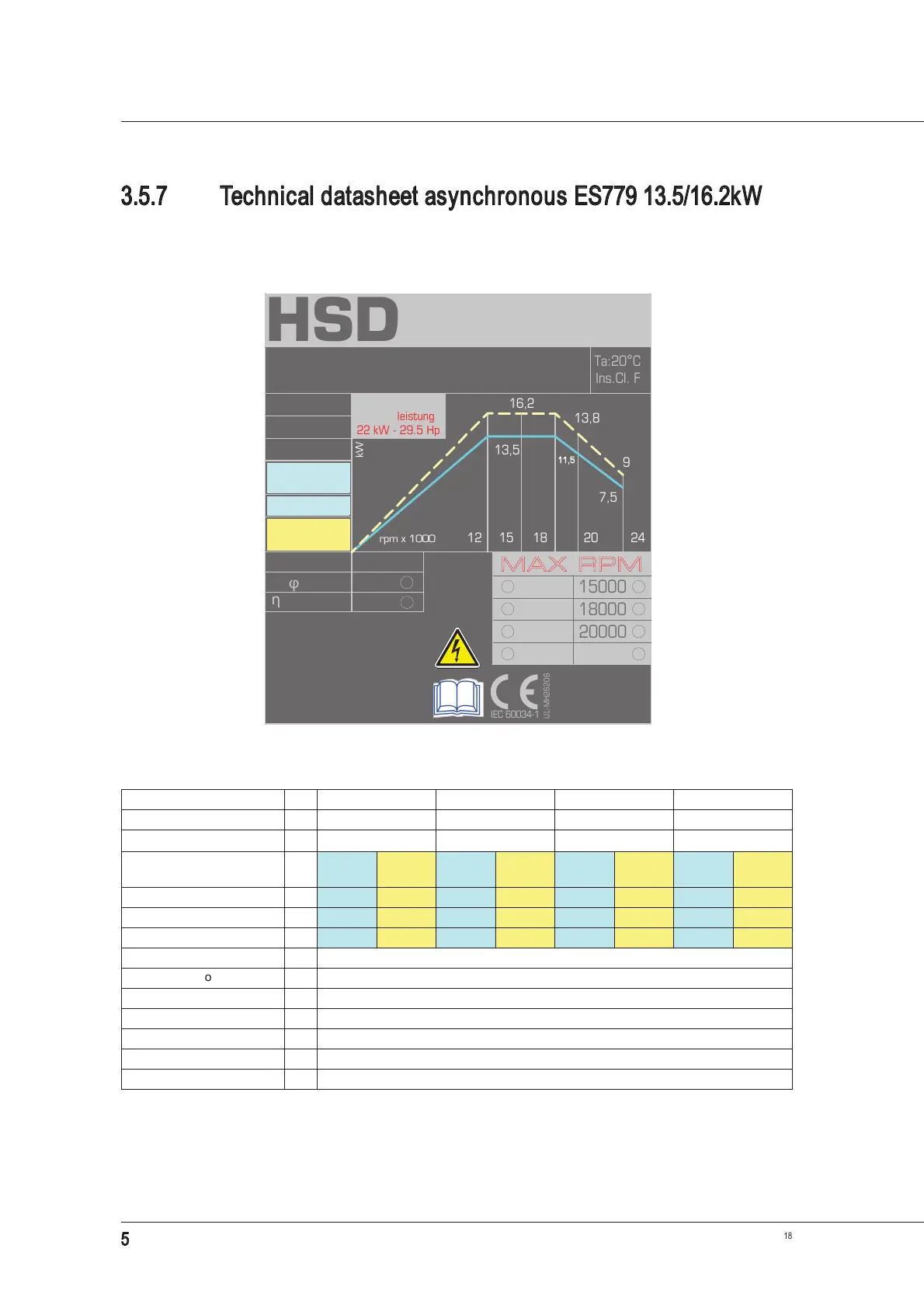

3.5.7 Technical datasheet asynchronous ES779 13.5/16.2kW
380V 400Hz
Motor rating plate
H1423H0378 (SP.120.080.4S)
Rated voltage V 380 380 380 380
Rated frequency Hz 400 600 667 800
Rated speed*
*
The maximum speed is specified in the “MAX RPM” box of the motor rating plate affixed to the product.
rpm 12,000 18,000 20,000 24,000
Duty type
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
Rated power kW
13.5 16.2 13.5 16.2 11.5 13.8 7.5 9
Rated torque Nm
10.7 12.9 7.2 8.6 5.5 6.6 3.0 3.6
Rated current A
29.0 35.0 29.0 35.0 25.0 30.0 16.5 19.8
Rated efficiency K 0.85
Power factor cos M 0.82
Number of poles 4
Insulation class F
Cooling Liquid
Short-nose version kg 26
Long-nose version kg 30
400Hz
12000 rpm
380V
MAX RPM
Poles: 4
26 Kg
H1423H0378
ES 779L 4P 16,20kW H1
HSD S.p.A www.hsd.it
Via della Meccanica,16
61122 PESARO (Italy)
ASYNCHRONOUS
3-PHASE MOTOR
DREHSTROM-
ASYNCHRONMOTOR
24000
Liquid cooling
Flussigkeitsgekuhlt
..
..
IP 54
30 Kg
S6 60%
16,2 kW - 22 Hp
S1 continuous
13,5
kW-18,1Hp
Cos = 0,82
= 0,85
29 A
Peak Power
Spitzenleistung
22 kW - 29.5 Hp
20000
18000
rpm x 1000
kW
16,2
12
20
1
1,5
13,5
2418
7,5
9
13,8
15000
15
UL-MH26206
IEC 60034-1

η
φ
HSD
Ta:20 ° C
Ins.Cl. F
