HSD ES779 - Technical Datasheet Asynchronous ES789 25;30 Kw 380 V 333 Hz

3 Technical specifications and main parts
86
HSD S.p.A. © - h0102k01a.fm120718

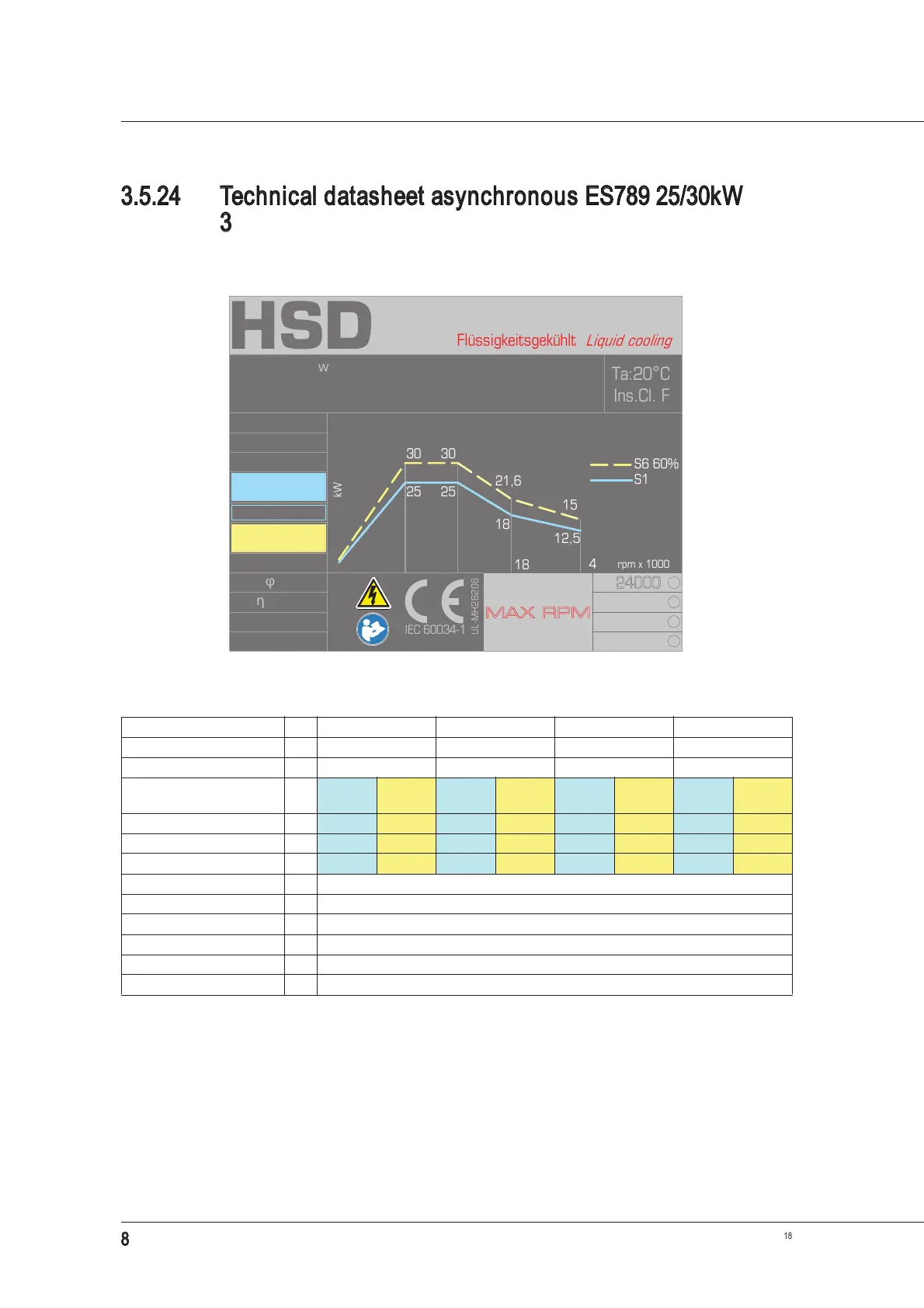

3.5.24 Technical datasheet asynchronous ES789 25/30kW
380V 333Hz
Motor rating plate
FNZ4101769 (SP.119.150.43)
Rated voltage V 380 380 380 380
Rated frequency Hz 333 466 600 800
Rated speed*
*
The maximum speed is specified in the “MAX RPM” box of the motor rating plate affixed to the product.
rpm 10,000 14,000 18,000 24,000
Duty type
S1
cont
S6
40%
S1
cont
S6
40%
S1
cont
S6
40%
S1
cont
S6
40%
Rated power kW
25 30 25 30 18 21.6 12.5 15
Rated torque Nm
23.9 28.6 17.1 20.5 9.5 11.5 5 6
Rated current A
50 62 53 61 36 48 27 33
Rated efficiency K 0.92
Power factor cos M 0.78
Number of poles 4
Insulation class F
Cooling Liquid
Weight kg 36
ES789L 4P 25,00kW
FNZ4101769
HSD S.p.A. www.hsd.it
Via della Meccanica, 16
61122 PESARO (Italy)
380V
333Hz
10000 rpm
S1 continuous
25kW - 34Hp
S6 40%
30kW - 40,8Hp
50 A
24000
MAX RPM
ASYNCHRONOUS
3-PHASE MOTOR
DREHSTROM-
ASYNCHRONMOTOR
Poles: 4
= 0,92
IP 54
36 kg
Cos
= 0,78
10
14
24
25
21,6
12,5
15
30
rpm x 1000
kW
S6 60%
S1
18
18
25
30
Flüssigkeitsgekühlt
Liquid cooling
HSD
η
φ
UL-MH26206
IEC 60034-1
Ta:20 ° C
Ins.Cl. F
