HSD ES779 - Technical Datasheet Asynchronous ES789 15;18 Kw 380 V 400 Hz with Motor Rating Plate FNZ4100709

3 Technical specifications and main parts
76
HSD S.p.A. © - h0102k01a.fm120718

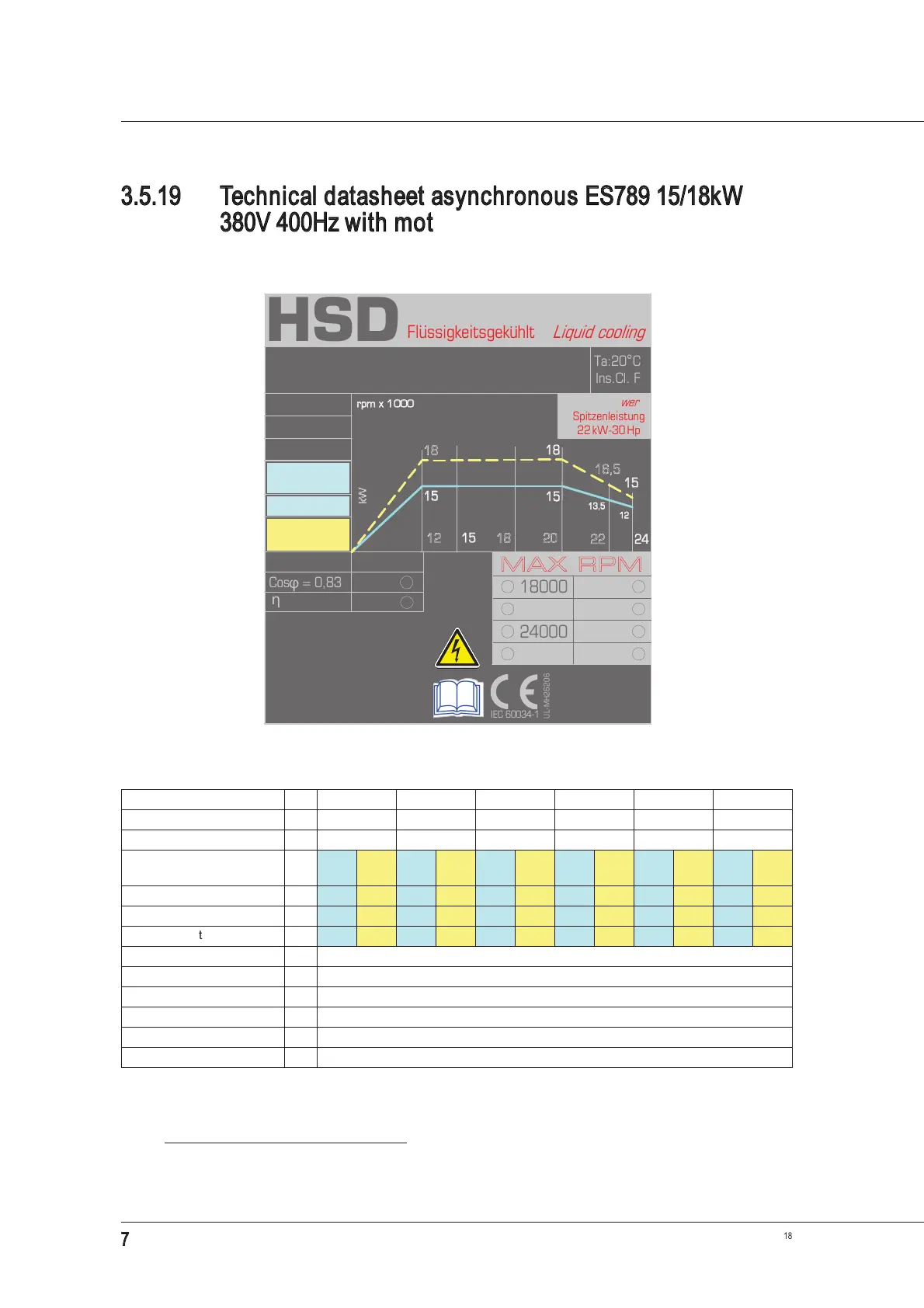

3.5.19 Technical datasheet asynchronous ES789 15/18kW
380V 400Hz with motor rating plate FNZ4100709*
Motor rating plate
FNZ4100709 (SP.120.150.4R)
*
Discontinued. Replaced by another version. Refer to paragraph
3.5.17 “Technical datasheet asynchronous
ES789 15/18kW 380V 400Hz with motor rating plate FNZ4101849”
.
Rated voltage V 380 380 380 380 380 380
Rated frequency Hz 400 500 600 667 733 800
Rated speed*
*
The maximum speed is specified in the “MAX RPM” box of the motor rating plate affixed to the product.
rpm 12,000 15,000 18,000 20,000 22,000 24,000
Duty type
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
Rated power kW
15 18 15 18 15 18 15 18 13.5 16.5 12 15
Rated torque Nm
12 14.3 9.5 11.5 8 9.5 7.1 8.6 5.8 7.1 4.7 6
Rated current A
30 37 32 39 31 39 31 38 30 29 26 29
Rated efficiencyK 0.85
Power factor cosM 0.83
Number of poles 4
Insulation class F
Cooling Liquid
Weight kg 36
400Hz
12000 rpm
380V
22000
MAX RPM
16,5
S1 continuous
15 kW-20,1 Hp
Poles: 4
S6 60%
18 kW-24,1 Hp
30 A
= 0,84
Kg
36 Kg
IP 54
FNZ4100709
ES 789L 4P 15,00kW
18 20
22
12
18
HSD S.p.A www.hsd.it
Via della Meccanica,16
61122 PESARO (Italy)
ASYNCHRONOUS
3-PHASE MOTOR
DREHSTROM-
ASYNCHRONMOTOR
kW
Peak Power
Spitzenleistung
22 kW-30 Hp
15
rpm x 1000
18
Liquid cooling
Flussigkeitsgekuhlt
..
..
24000
18000
24
15
13,5
15
15
12
Cos = 0,83
UL-MH26206
IEC 60034-1

η
φ
HSD
Ta:20 ° C
Ins.Cl. F
