HSD ES779 - ES789, with Free Cables, with Fixing Grooves

3 Technical specifications and main parts
HSD S.p.A. © - h0102k01a.fm120718
33

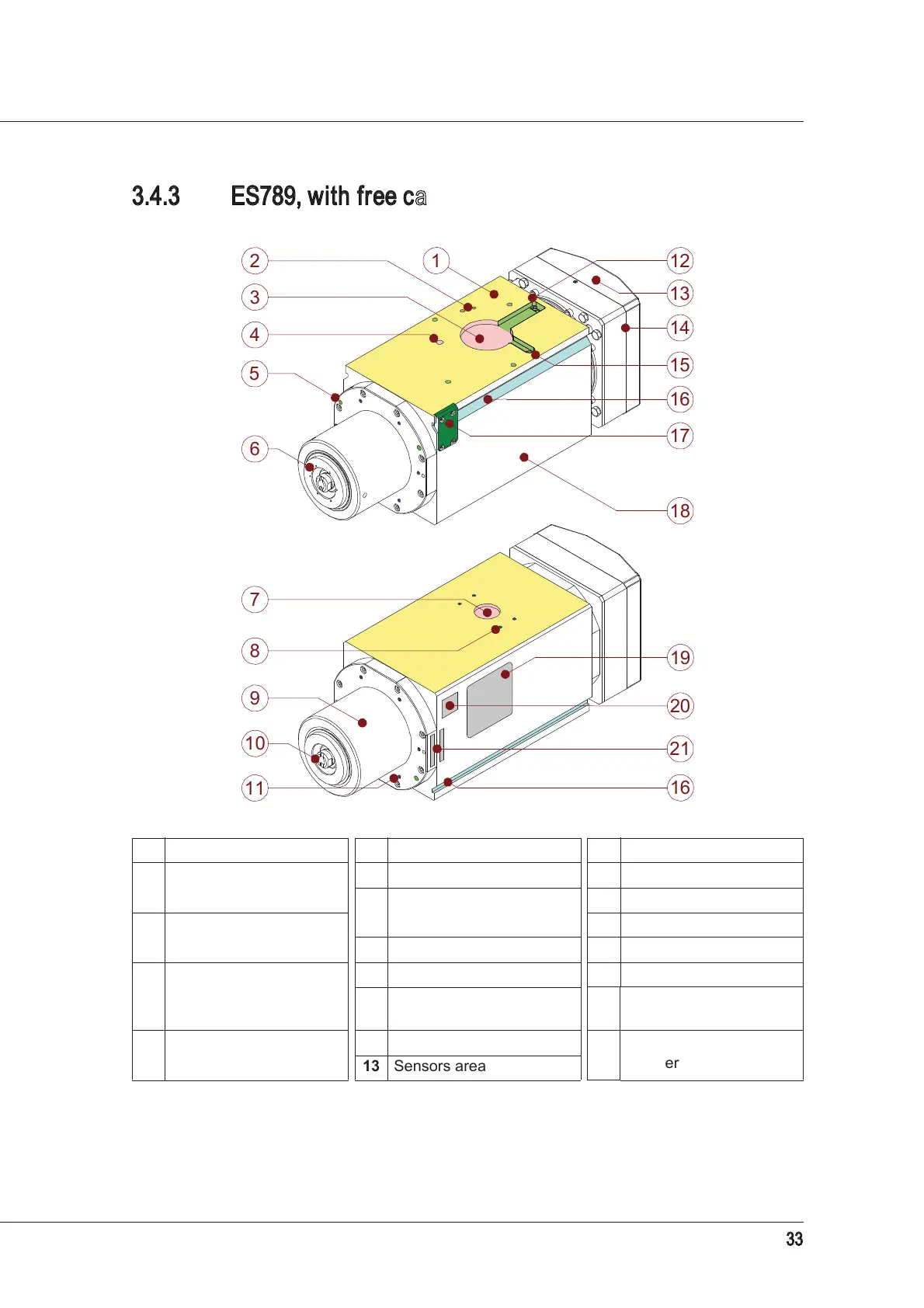

3.4.3 ES789, with free cables, with fixing grooves
1 Support surface 6 Shaft 14 Cylinder
2
6 inlet/outlet holes for
compressed air and fluids
7 Bore Ø30 H8 depth 4 15 Sensor cable positioning
8
4 bores M5 thread depth 6
for accessories
16 Fixing groove
3
Positioning bore Ø60 H8
depth 6
17 Encoder compartment
9 Nose 18 Casing
4
Positioning bore Ø8 H7
depth 10
10 HSK collet 19 Motor rating plate
11
6 fixing holes M5 for
accessories
20 Tool holder description
5
2 bores* for tool
lubricant-coolant outlet
*
M6 or G1/8”, depending on the version; check the technical data sheet.
12 Motor cable positioning
21
Serial (or register)
number
13 Sensors area
3
2 1 12
16
15
17
18
14
13
4
6
7
11
20
21
16
19
10
9
8
5
