HSD ES779 - Variations with HSD Electric Connectors

3 Technical specifications and main parts
HSD S.p.A. © - h0102k01a.fm120718
35

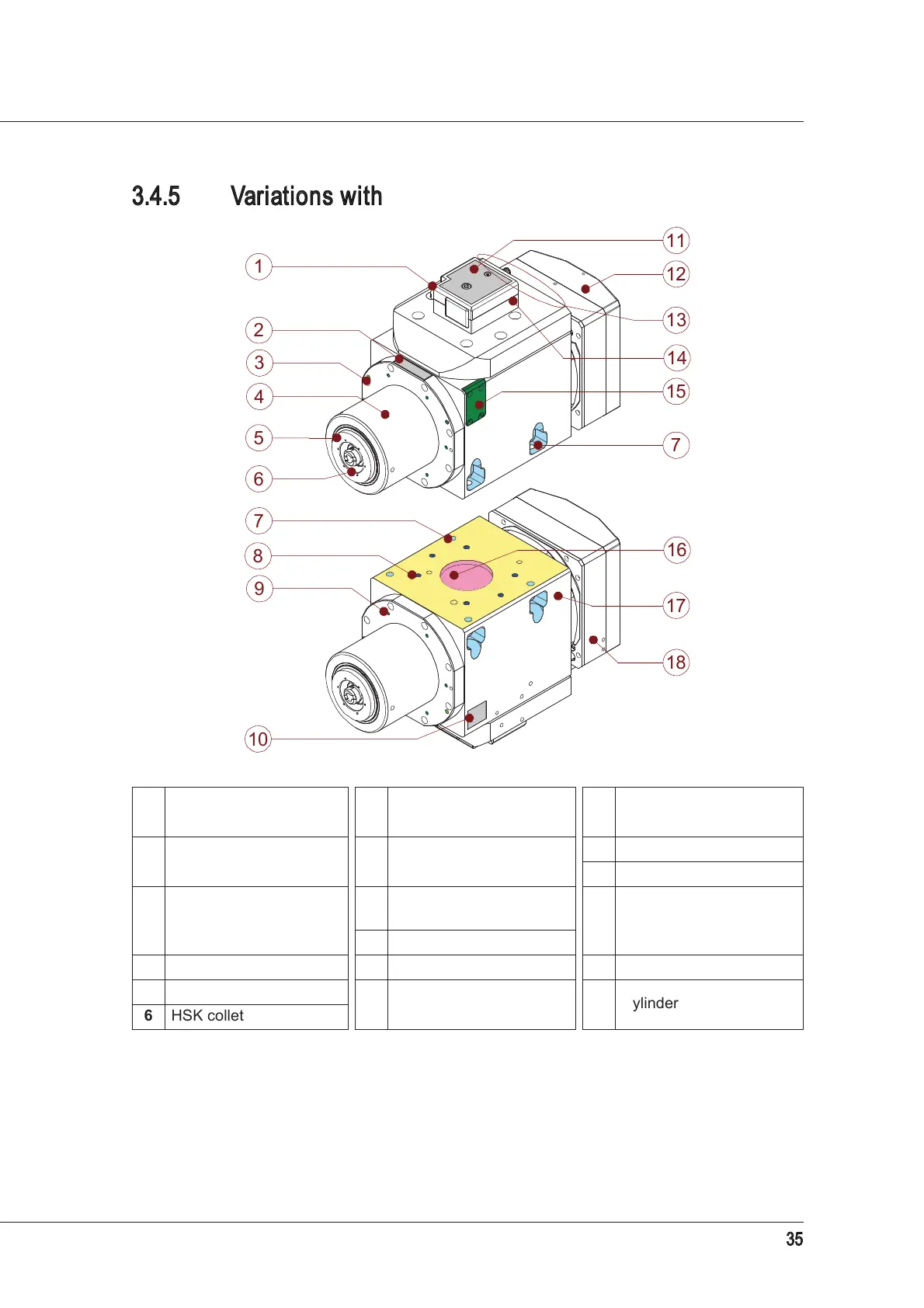

3.4.5 Variations with HSD electric connectors
1
Button for manual tool
release
7
4 through fixing bores
Ø8.5
13
Hydraulic/Pneumatic
connectors
2
Serial (or register)
number
8
6 fixing bores M8 thread
depth 12
14 HSD electric connector
15 Encoder compartment
3
2 bores* for tool
lubricant-coolant outlet
*
M6 or G1/8”, depending on the version; check the technical data sheet.
9
6 fixing holes M5 for
accessories
16
Positioning bore Ø60 H8
depth 6
10
Tool holder description
4 Nose 11 Motor rating plate 17 Casing
5 Shaft
12 Sensors area 18 Cylinder
6 HSK collet
11
2
3
4
5
6
7
8
16
18
12
15
7
17
13
10
9
1
14
