9.3.4 Adjusting sensors S1 and S4 for HSK versions
The adjustment gauge kit is needed when adjusting HSK sensors S1 and S4.
To know the kit codes, refer to appendix
B “Spare parts”.
Gauge kit for adjusting HSK sensors S1 and S4
The kits contain gauges to be used as normal tool-holders, and possibly thickness spacers to be
used along with the gauges.
The gauges and thickness spacers are identified by the sensor status and corresponding
adjustment position shown on their surface or on the pack label.

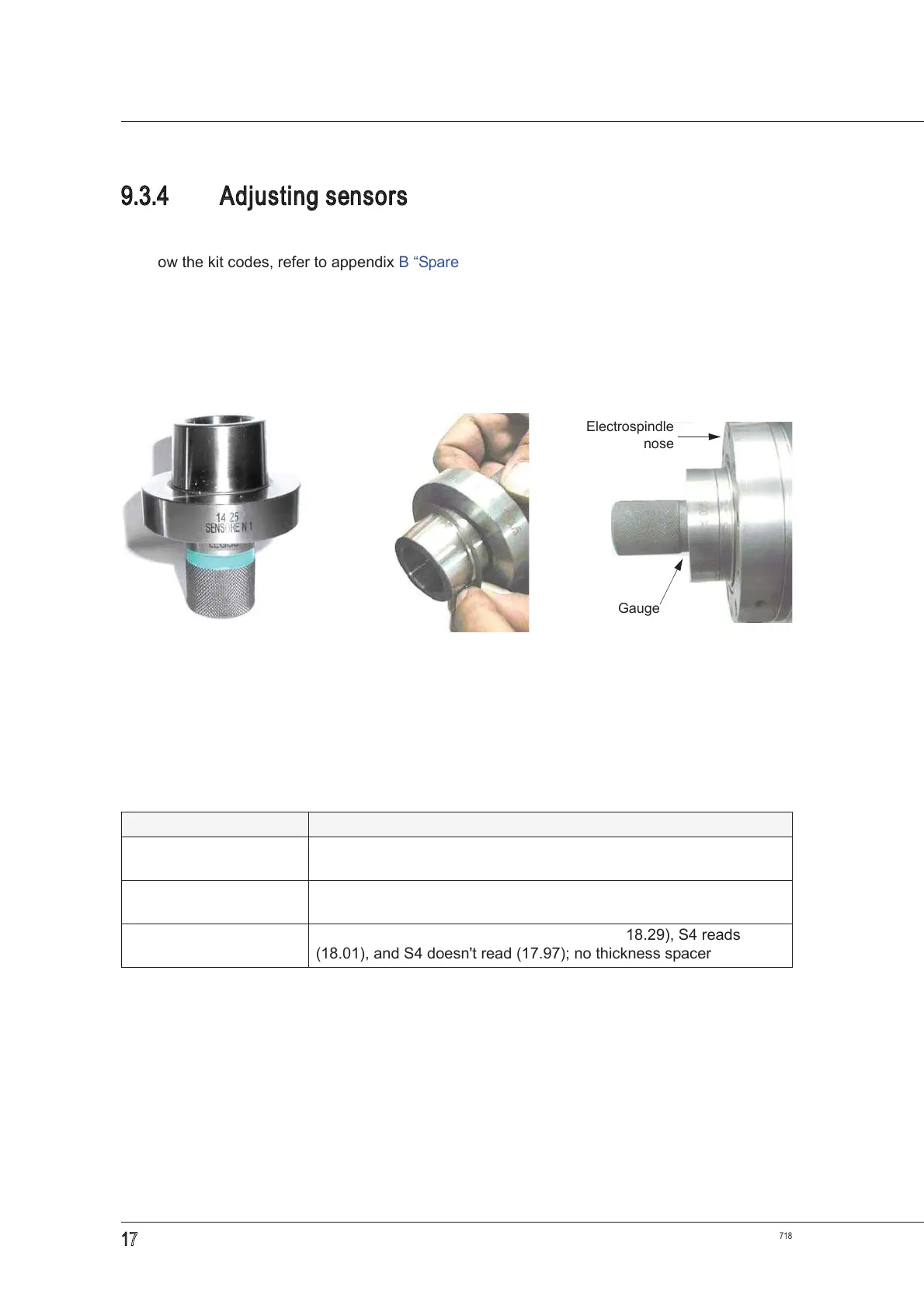

Figure 16. Gauge. Figure 17. Thickness
spacer added to the
gauge.
Figure 18. Use of the gauge
as a normal tool-holder,
with or without a thickness
spacer inserted.
HSK form Kit composition (measurements expressed in mm)
A40 E40 F50
Gauges - S1 doesn't read (11.56) and S4 reads (11.32);
0.04 thickness spacer
F63
Gauges - S1 doesn't read (14.29) and S4 (14.13); 0.04 and
0.12 thickness spacers
A63 E63
Gauges - S1 reads (18.25), S1 doesn't read (18.29), S4 reads
(18.01), and S4 doesn't read (17.97); no thickness spacer
Electrospindle
nose
Gauge
