HSD ES779 - Technical Datasheet Asynchronous ES779 15;18 Kw 380 V 434 Hz

3 Technical specifications and main parts
56
HSD S.p.A. © - h0102k01a.fm120718

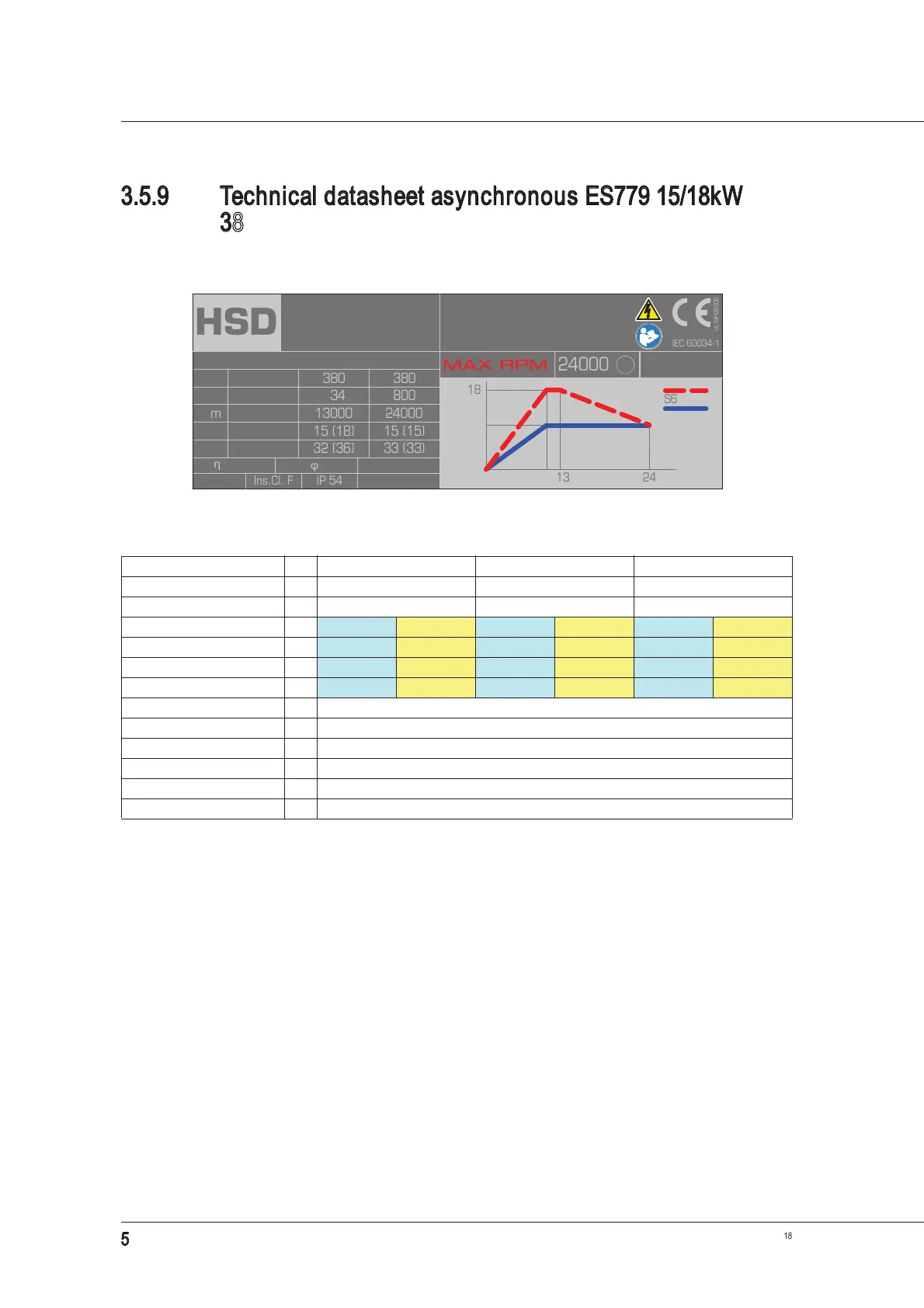

3.5.9 Technical datasheet asynchronous ES779 15/18kW
380V 434Hz
Motor rating plate
FNZ4101846 (SP.119.080.41)
Rated voltage V 350 380 380
Rated frequency Hz 400 434 800
Rated speed*
*
The maximum speed is specified in the “MAX RPM” box of the motor rating plate affixed to the product.
rpm 12,000 13,000 24,000
Duty type
S1 cont S6 40% S1 cont S6 40% S1 cont S6 40%
Rated power kW
15 18 15 18 15 15
Rated torque Nm
11.9 14.3 11 13.2 6 6
Rated current A
35 39 32 36 33 33
Rated efficiencyK 0.9
Power factor cosM 0.78
Number of poles 4
Insulation class F
Cooling Liquid
Weight kg 25
Ta:20°C
ES779 4P 15kW
HSD S.p.A. www.hsd.it
Via della Meccanica,16
61122 Pesaro (PU) (Italy)
ASYNCHRONOUS 3-PHASE MOTOR
V
Hz
rpm
kW
A
350
400
12000
15 (18)
35 (39)
Cos 0,9
0,78
Poles: 4
25 kg
Liquid cooling
FNZ4101846
12
rpm x 1000
15
kW
S1
434
13000
15 (18)
32 (36)
24
MAX RPM
24000
Ins.Cl. F IP 54
380
800
24000
15 (15)
33 (33)
380
13
18
S6
HSD
IEC 60034-1
UL-MH26206
UL-MH26206
η
φ
