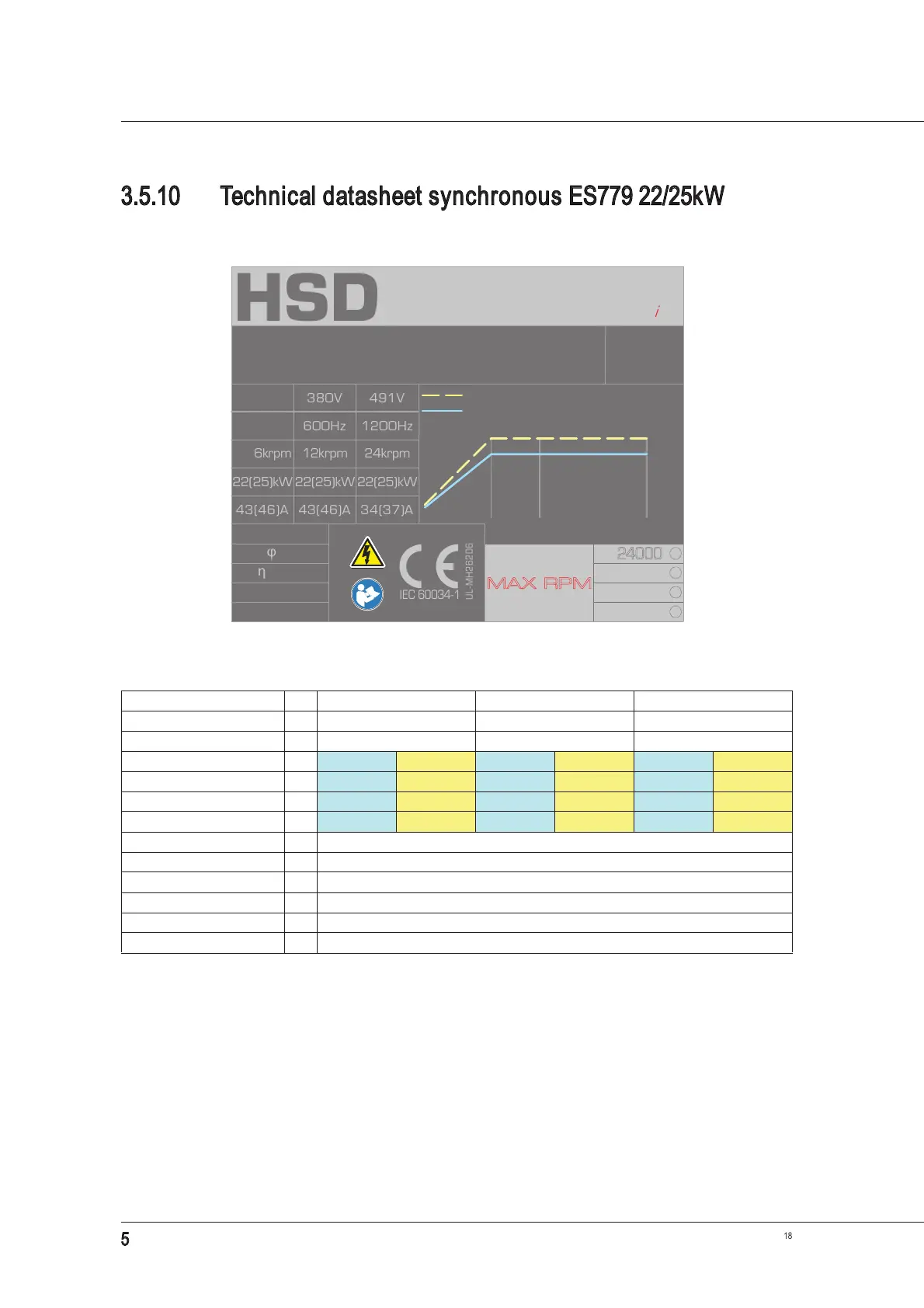

3.5.10 Technical datasheet synchronous ES779 22/25kW 530Hz
Motor rating plate
FNZ4102231 (SP.120.060.61)
Rated voltage V 367 380 491
Rated frequency Hz 530 600 1,200
Rated speed*
*
The maximum speed is specified in the “MAX RPM” box of the motor rating plate affixed to the product.
rpm 10,600 12,000 24,000
Duty type
S1 cont S6 60% S1 cont S6 60% S1 cont S6 60%
Rated power kW
22 25 22 25 22 25
Rated torque Nm
20.3 22.6 18 20 9 10
Rated current A
43 46 43 46 34 37
Rated efficiencyK 0.9
Power factor cosM 0.9
Number of poles 6
Insulation class F
Cooling Liquid
Weight kg 36
ES779L 6P 22 kW
Flüssigkeitsgekühlt
Liquid cooling
FNZ4102231
HSD S.p.A. www.hsd.it
Via della Meccanica, 16
61122 PESARO (Italy)
367V
S1 continuous
22kW
S6 40%
25kW
24000
MAX RPM
SYNCHRONOUS
3-PHASE MOTOR
DREHSTROM-
SYNCHRONMOTOR
Poles: 6
= 0,9
IP 54
36 kg
Cos
= 0,9
10,6 24
22
25
rpm x 1000
kW
S6 60%
S1
22
25
12
22
25
530Hz
10,6krpm
22(25)kW
43(46)A
380V
600Hz
12krpm
22(25)kW
43(46)A
491V
1200Hz
24krpm
22(25)kW
34(37)A
HSD
η
φ
UL-MH26206
IEC 60034-1
