HSD ES779 - Technical Datasheet Asynchronous ES789 16;18 Kw 380 V 267 Hz

3 Technical specifications and main parts
80
HSD S.p.A. © - h0102k01a.fm120718

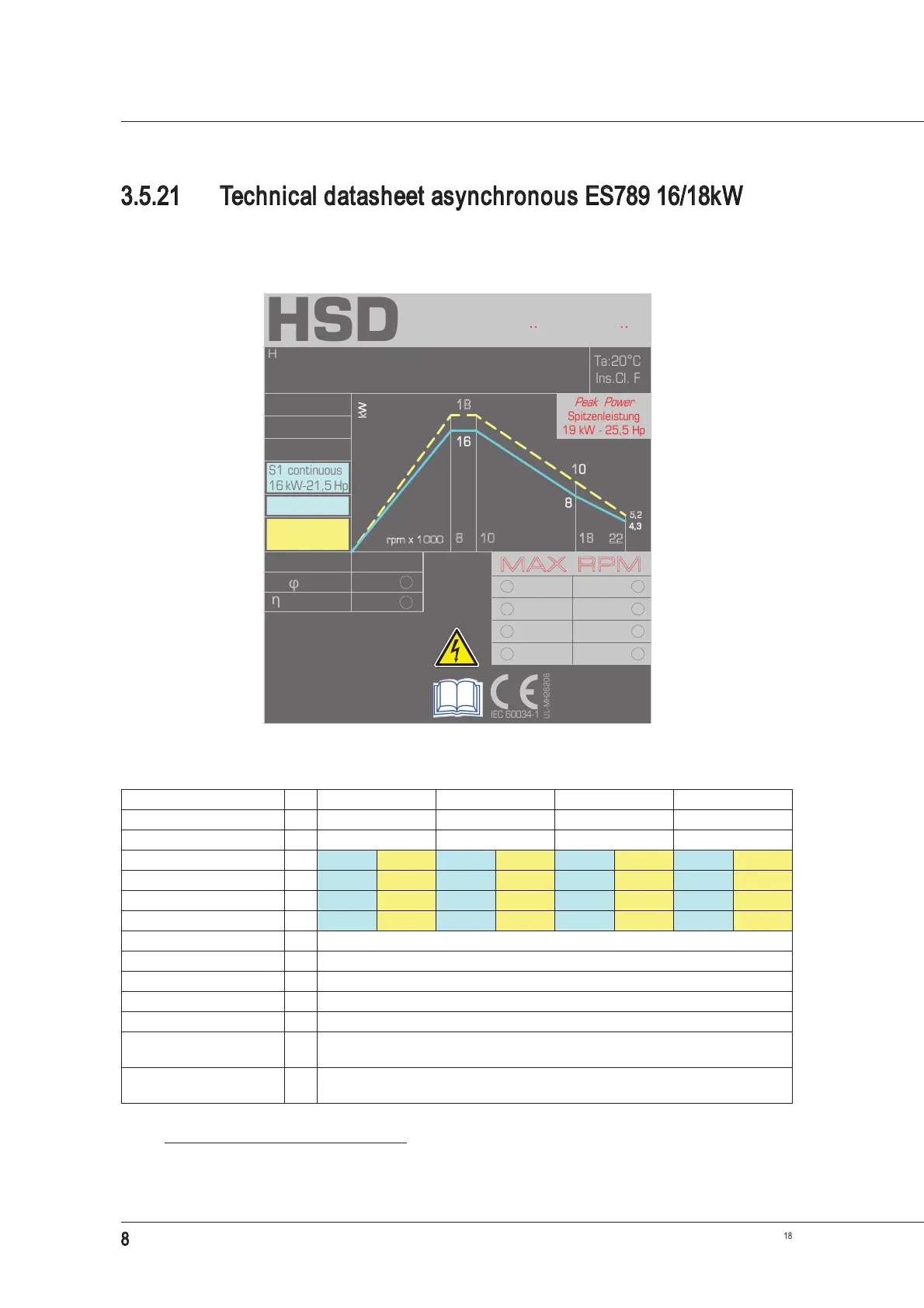

3.5.21 Technical datasheet asynchronous ES789 16/18kW
380V 267Hz*
Motor rating plate
H1423H0211 (120.150.4A)
*
Discontinued. Replaced by another version. Refer to paragraph
3.5.22 “Technical datasheet asynchronous
ES789 16/19.2kW 380V 300Hz”
.
Rated voltage V 380 380 380 380
Rated frequency Hz 267 333 600 733
Rated speed*
*
The maximum speed is specified in the “MAX RPM” box of the motor rating plate affixed to the product.
rpm 8,000 10,000 18,000 22,000
Duty type
S1 cont S6 60% S1 cont S6 60% S1 cont S6 60% S1 cont S6 60%
Rated power kW
16 18 16 18 8 10 4.3 5.2
Rated torque Nm
19 21.5 15.3 17.2 4.2 5.3 1.9 2.3
Rated current A
34.5 45 34.5 45 18 26 8 11
Rated efficiency K 0.8
Power factor cos M 0.7
Number of poles 4
Insulation class F
Cooling Liquid
Version without rotary fluid
distributor
kg 36
Version with rotary fluid
distributor
kg 42
267Hz
8000 rpm
380V
22000
18000
MAX RPM
5,2
Poles: 4
S6 60%
18 kW-24,1 Hp
34,5A
Cos = 0,7
= 0,8
42 Kg
36 Kg
IP 54
Liquid cooling
H1423H0211
Flussigkeitsgekuhlt
ES 789L 4P 18,00kW H1
10 18
22
8
18
10
HSD S.p.A www.hsd.it
Via della Meccanica,16
61122 PESARO (Italy)
ASYNCHRONOUS
3-PHASE MOTOR
DREHSTROM-
ASYNCHRONMOTOR
rpm x 1000
kW
Peak Power
Spitzenleistung
19 kW - 25,5 Hp
..
..
S1 continuous
16 kW-21,5 Hp
16
8
4,3
UL-MH26206
IEC 60034-1

η
φ
HSD
Ta:20 ° C
Ins.Cl. F
