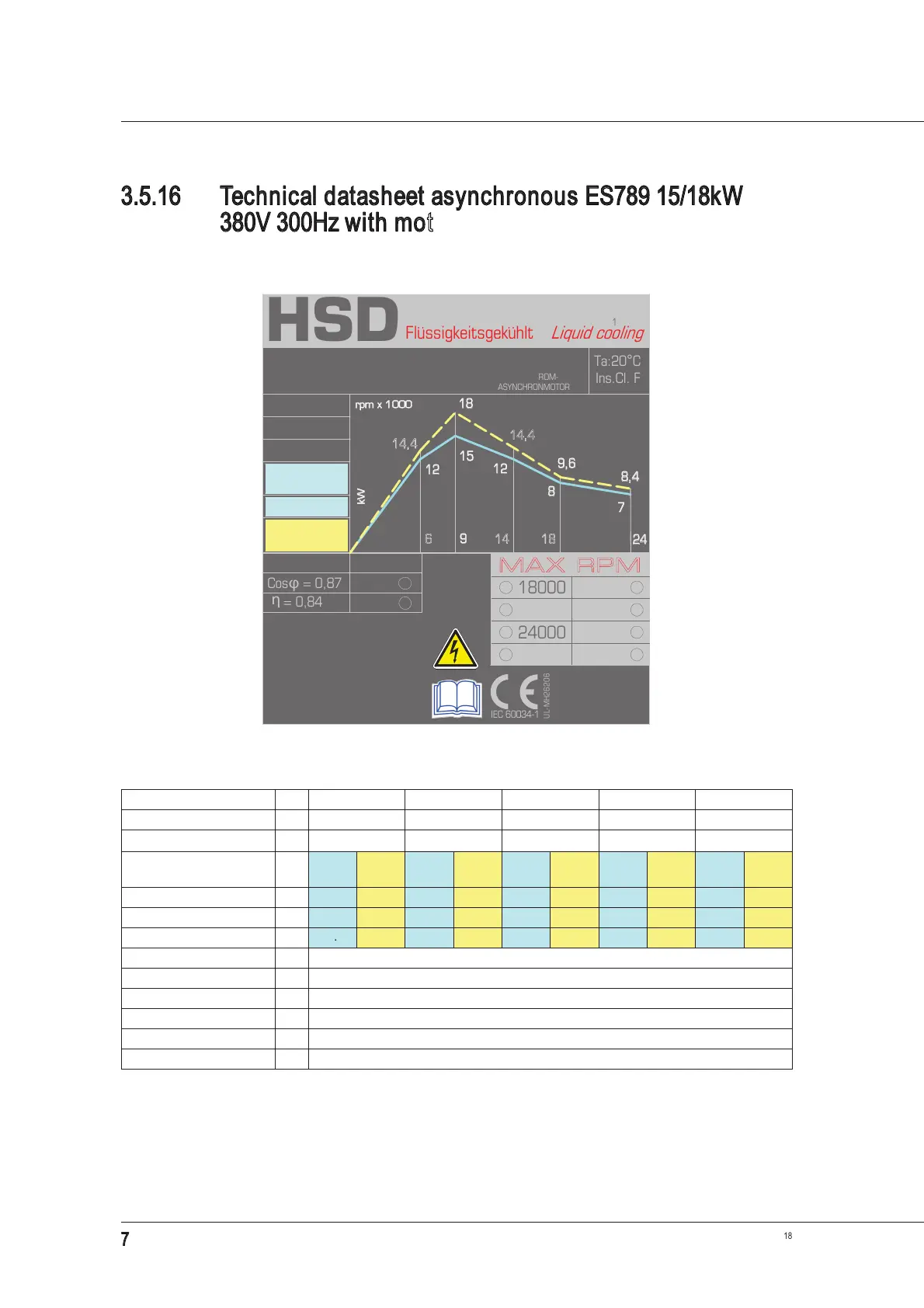

HSD ES779 - Technical Datasheet Asynchronous ES789 15;18 Kw 380 V 300 Hz with Motor Rating Plate FNZ4101847

3 Technical specifications and main parts
70
HSD S.p.A. © - h0102k01a.fm120718
3.5.16 Technical datasheet asynchronous ES789 15/18kW
380V 300Hz with motor rating plate FNZ4101847
Motor rating plate
FNZ4101847 (SP.119.150.44)
Rated voltage V 253 380 380 380 380
Rated frequency Hz 200 300 467 600 800
Rated speed*
*
The maximum speed is specified in the “MAX RPM” box of the motor rating plate affixed to the product.
rpm 6,000 9,000 14,000 18,000 24,000
Duty type
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
Rated power kW
12 14.4 15 18 12 14.4 8 9.6 7 8.4
Rated torque Nm
19.1 22.9 15.9 19.1 8.2 9.8 4.2 5.1 2.8 3.3
Rated current A
37.4 44 32 38 24.5 28.5 16 19.5 14 17
Rated efficiency K 0.84
Power factor cos M 0.87
Number of poles 4
Insulation class F
Cooling Liquid
Weight kg 36
300Hz
9000 rpm
380
V
22000
MAX RPM
S1 continuous
15 kW-20,1 Hp
Poles: 4
S6 60%
18 kW-24,1 Hp
32
A
Kg
36 Kg
IP 54
FNZ4101847
ES 789L 4P 15,00kW
14 18
6
14,4
14,4
HSD S.p.A www.hsd.it
Via della Meccanica,16
61122 PESARO (Italy)
ASYNCHRONOUS
3-PHASE MOTOR
DREHSTROM-
ASYNCHRONMOTOR
kW
9
rpm x 1000
9,6
Liquid cooling
Flussigkeitsgekuhlt
..
..
18
24000
18000
24
8,4
12
12
8
15
7
= 0,84
Cos = 0,87
UL-MH26206
IEC 60034-1

η
φ
HSD
Ta:20 ° C
Ins.Cl. F
