HSD ES779 - Technical Datasheet Asynchronous ES789 15;18 Kw 220;380 V 400 Hz with Motor Rating Plate FNZ4101850

3 Technical specifications and main parts
74
HSD S.p.A. © - h0102k01a.fm120718

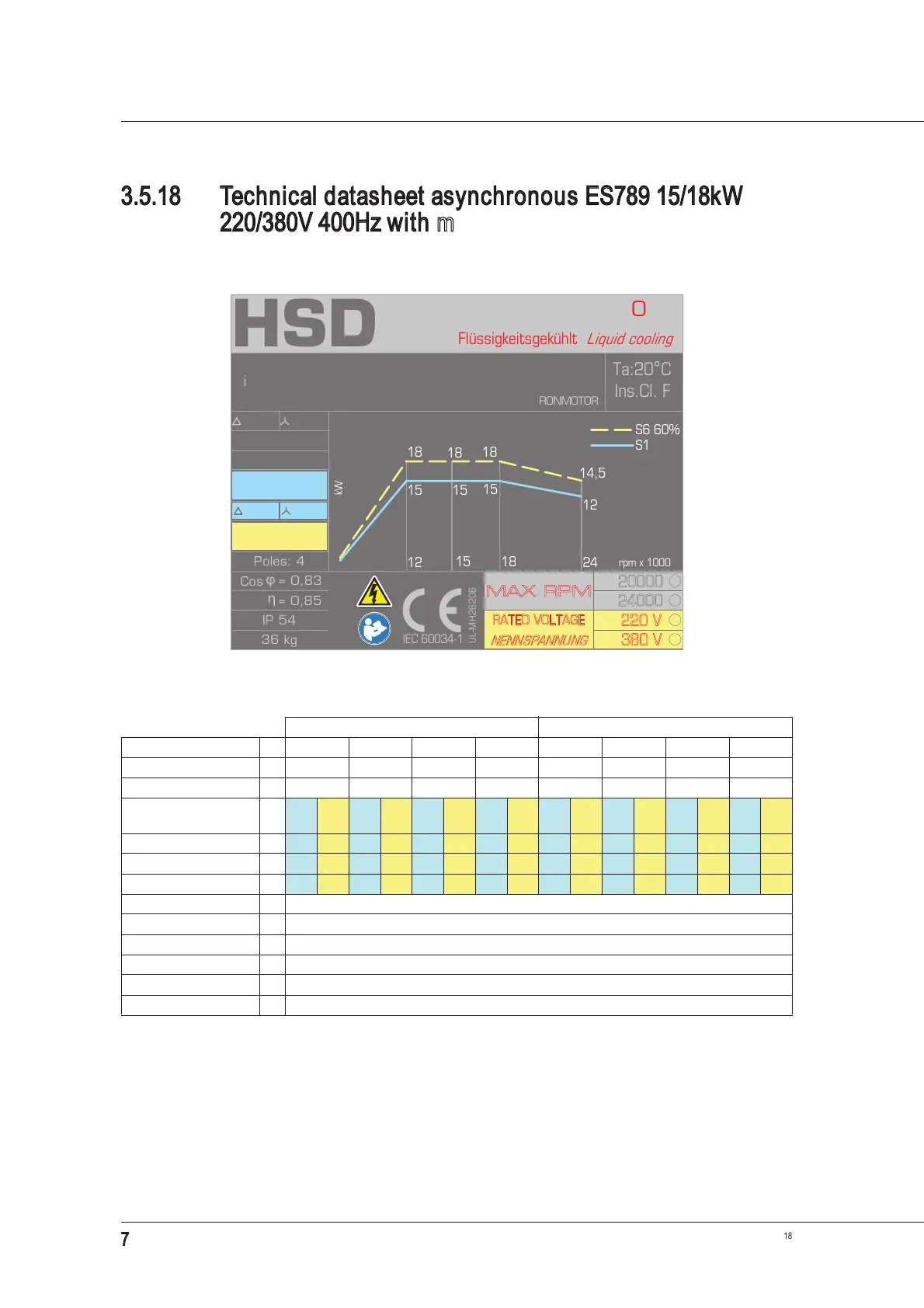

3.5.18 Technical datasheet asynchronous ES789 15/18kW
220/380V 400Hz with motor rating plate FNZ4101850
Motor rating plate
FNZ4101850 (SP.119.150.45)
Star connection (Y) Delta connection (D)
Rated voltage V 380 380 380 380 220 220 220 220
Rated frequency Hz 400 500 600 800 400 500 600 800
Rated speed*
*
The maximum speed is specified in the “MAX RPM” box of the motor rating plate affixed to the product.
rpm 12,000 15,000 18,000 24,000 12,000 15,000 18,000 24,000
Duty type
S1
cont
S6
40%
S1
cont
S6
40%
S1
cont
S6
40%
S1
cont
S6
40%
S1
cont
S6
40%
S1
cont
S6
40%
S1
cont
S6
40%
S1
cont
S6
40%
Rated power kW
15 18 15 18 15 18 12 14.5 15 18 15 18 15 18 12 14.5
Rated torque Nm
11.9 14.3 9.5 11.5 8 9.5 4.8 5.8 11.9 14.3 9.5 11.5 8 9.5 4.8 5.8
Rated current A
30 35.5 31 35 30 36 25 30 52 61.4 53.7 60.6 51.9 62.3 43.3 51.9
Rated efficiency K 0.85
Power factor cos M 0.83
Number of poles 4
Insulation class F
Cooling Liquid
Weight kg 36
ES789L 4P 15,00kW
FNZ4101850
HSD S.p.A. www.hsd.it
Via della Meccanica, 16
61122 PESARO (Italy)
220V 380V
400Hz
12000 rpm
S1 continuous
15kW - 20,1Hp
220V
S6 60%
18kW - 24,1Hp
30 A52 A
RATED VOLTAGE
NENNSPANNUNG
220 V
380 V
20000
24000
MAX RPM
ASYNCHRONOUS
3-PHASE MOTOR
DREHSTROM-
ASYNCHRONMOTOR
Poles: 4
= 0,85
IP 54
36 kg
Cos
= 0,83
12
18
24
15
15
12
14,5
18
18
rpm x 1000
kW
S6 60%
S1
15
15
18
Flüssigkeitsgekühlt Liquid cooling
η
φ
Ta:20 ° C
Ins.Cl. F
UL-MH26206
IEC 60034-1
HSD
