7 Operation and regulation
146
HSD S.p.A. © - h0106k01a.fm120718
7.9.1 Technical characteristics of the Lenord+Bauer Square
Wave encoder
A voltage level higher than the one specified (5V ±5%) may damage the encoder
reader.

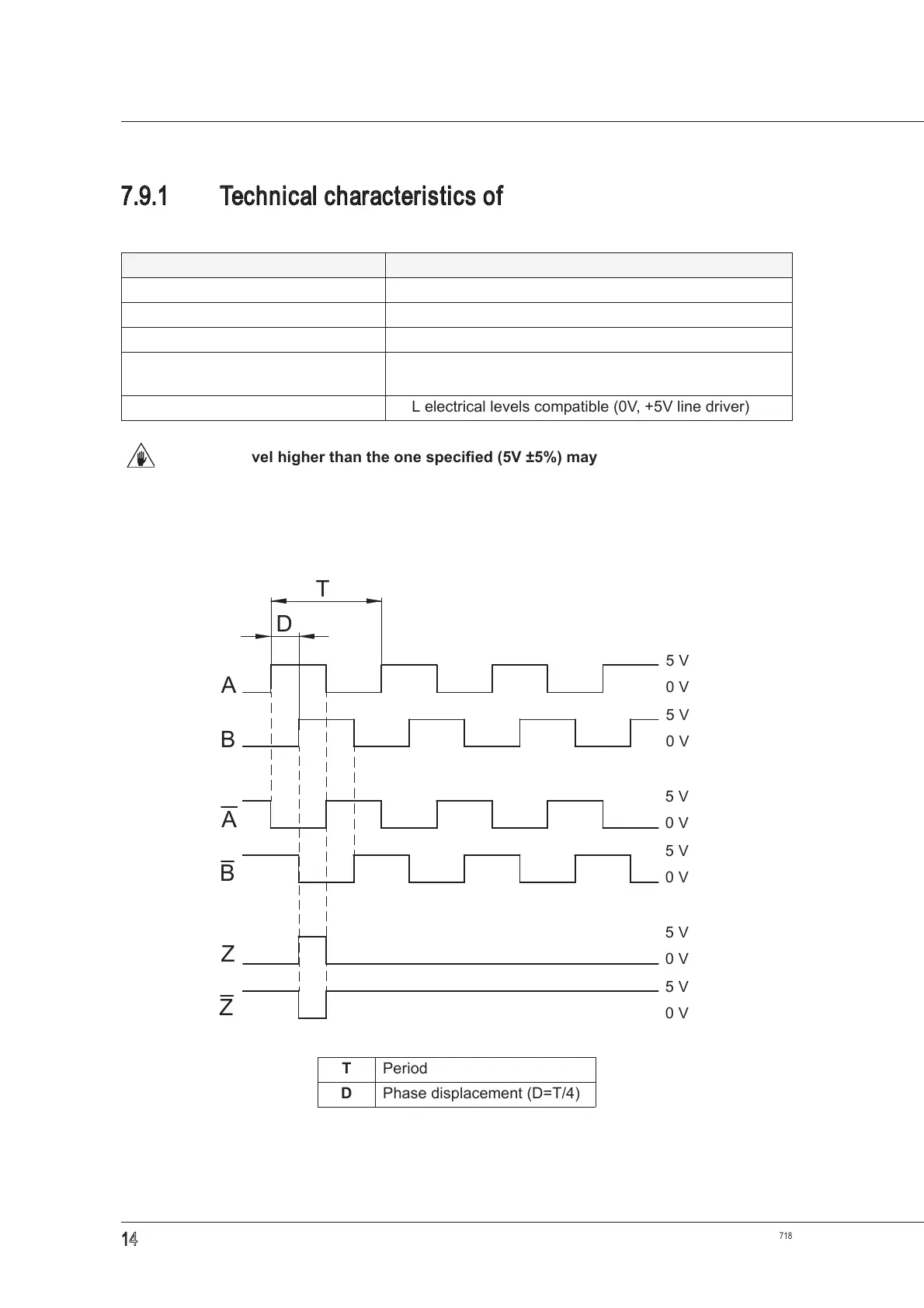

Signals of the Lenord+Bauer Square Wave encoder
CHARACTERISTICS VALUE
Rated power supply 5V DC +/- 5%
Operating temperature -30°C ÷ +85°C (-22°F ÷ +185°F)
Max. operating altitude 2000m (6500ft)
Signal input (pulses per rotation) Depending on the model (refer to the Technical
Datasheet)
Signals output TTL electrical levels compatible (0V, +5V line driver)
T Period
D Phase displacement (D=T/4)
D
T
Z
Z
B
B
A
A
5 V
0 V
5 V
0 V
5 V
0 V
5 V
0 V
5 V
0 V
5 V
0 V
