HSD ES779 - Technical Datasheet Asynchronous ES779 15;18 Kw 380 V 400 Hz

3 Technical specifications and main parts
54
HSD S.p.A. © - h0102k01a.fm120718

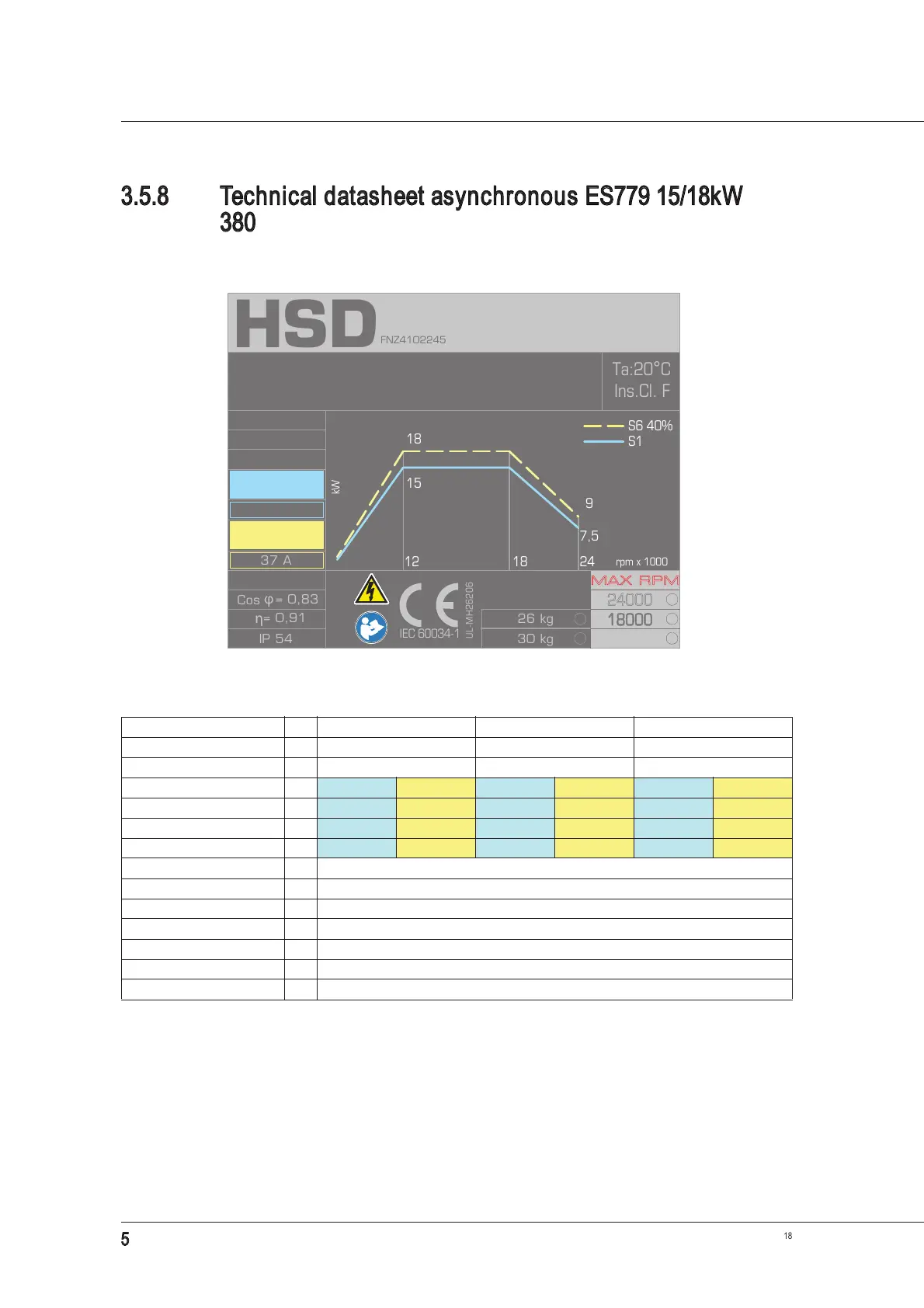

3.5.8 Technical datasheet asynchronous ES779 15/18kW
380V 400Hz
Motor rating plate
FNZ4102245 (SP.119.080.47.AL)
Rated voltage V 380 380 380
Rated frequency Hz 400 600 800
Rated speed*
*
The maximum speed is specified in the “MAX RPM” box of the motor rating plate affixed to the product.
rpm 12,000 18,000 24,000
Duty type
S1 cont S6 40% S1 cont S6 40% S1 cont S6 40%
Rated power kW
15 18 15 18 7.5 9
Rated torque Nm
11.9 14.3 8 9.5 3 3.6
Rated current A
30 37 32 39 16.5 18
Rated efficiencyK 0.90
Power factor cosM 0.83
Number of poles 4
Insulation class F
Cooling Liquid
Short-nose version kg 26
Long-nose version kg 30
ES779 4P 15 kW
Flüssigkeitsgekühlt
Liquid cooling
HSD S.p.A. www.hsd.it
Via della Meccanica, 16
61122 PESARO (Italy)
380V
400Hz
12000 rpm
S1 continuous
15 kW
S6 40%
18 kW
30 A
24000
MAX RPM
ASYNCHRONOUS
3-PHASE MOTOR
DREHSTROM-
ASYNCHRONMOTOR
Poles: 4
= 0,91
IP 54
26 kg
Cos
= 0,83
4221
15
7,5
9
18
rpm x 1000
kW
S6 40%
S1
18
30 kg
37 A
FNZ4102245
18000
Ta:20 ° C
Ins.Cl. F
η
φ
UL-MH26206
IEC 60034-1
HSD
