HSD ES779 - Technical Datasheet Asynchronous ES789 15;18 Kw 380 V 300 Hz with Motor Rating Plate FNZ4101253

3 Technical specifications and main parts
64
HSD S.p.A. © - h0102k01a.fm120718

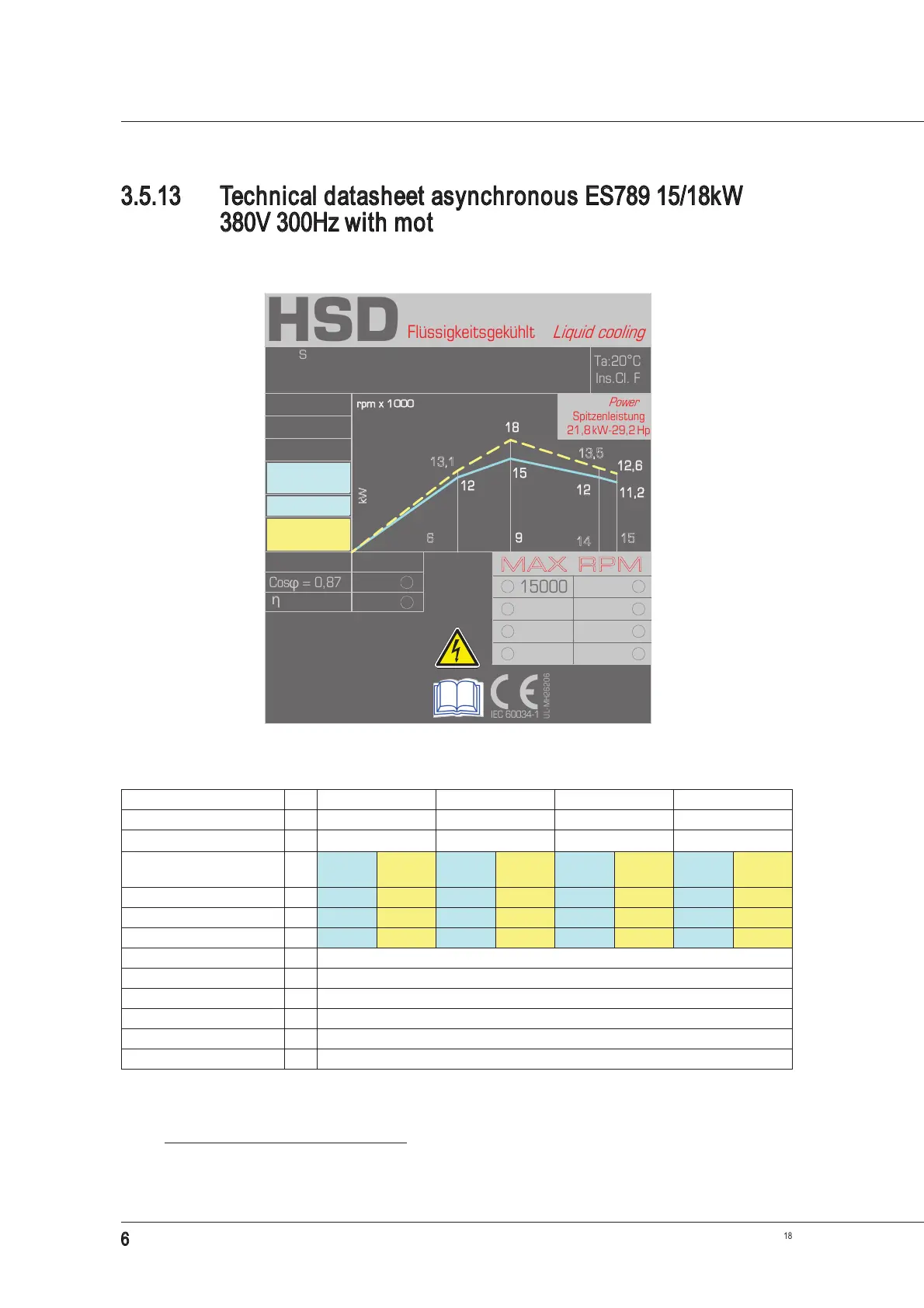

3.5.13 Technical datasheet asynchronous ES789 15/18kW
380V 300Hz with motor rating plate FNZ4101253*
Motor rating plate
FNZ4101253 (SP.120.150.4N)
*
Discontinued. Replaced by another version. Refer to paragraph
3.5.15 “Technical datasheet asynchronous
ES789 15/18kW 380V 300Hz with motor rating plate FNZ4101851”
.
Rated voltage V 255 380 380 380
Rated frequency Hz 200 300 467 500
Rated speed*
*
The maximum speed is specified in the “MAX RPM” box of the motor rating plate affixed to the product.
rpm 6,000 9,000 14,000 15,000
Duty type
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
Rated power kW
12 13.1 15 18 12 13.5 11.2 12.6
Rated torque Nm
19.1 20.9 15.9 19.1 8.2 9.2 7.1 8
Rated current A
36.8 41.3 31.6 38.7 29.1 32.8 28 31.2
Rated efficiency K 0.84
Power factor cos M 0.87
Number of poles 4
Insulation class F
Cooling Liquid
Weight kg 36
300Hz
9000 rpm
380V
MAX RPM
S1 continuous
15 kW-20,1 Hp
Poles: 4
S6 60%
18 kW-24,1 Hp
31,6 A
= 0,84
Kg
36 Kg
IP 54
FNZ4101253
ES 789L 4P 18,00kW H1
14
15
6
13,5
13,1
HSD S.p.A www.hsd.it
Via della Meccanica,16
61122 PESARO (Italy)
ASYNCHRONOUS
3-PHASE MOTOR
DREHSTROM-
ASYNCHRONMOTOR
kW
Peak Power
Spitzenleistung
21,8 kW-29,2 Hp
9
rpm x 1000
Liquid cooling
Flussigkeitsgekuhlt
..
..
18
15000
12
12
15
Cos = 0,87
11,2
12,6
UL-MH26206
IEC 60034-1

η
φ
HSD
Ta:20 ° C
Ins.Cl. F
