HSD ES779 - Technical Datasheet Asynchronous ES789 16;19.2 Kw 380 V 300 Hz

3 Technical specifications and main parts
82
HSD S.p.A. © - h0102k01a.fm120718

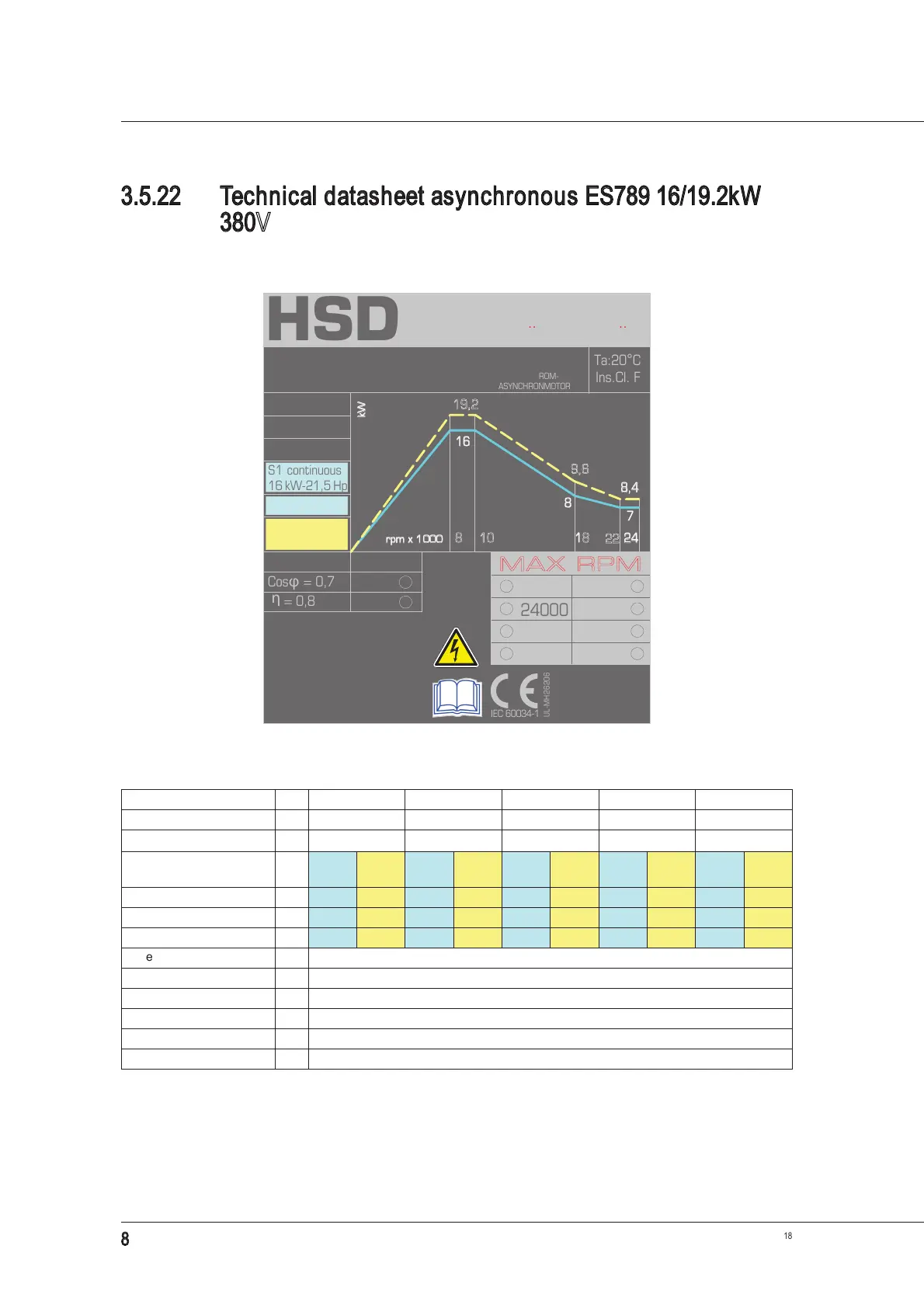

3.5.22 Technical datasheet asynchronous ES789 16/19.2kW
380V 300Hz
Motor rating plate
FNZ4101848 (SP.119.150.44.PAR.16)
Rated voltage V 380 380 380 380 380
Rated frequency Hz 267 333 600 734 800
Rated speed*
*
The maximum speed is specified in the “MAX RPM” box of the motor rating plate affixed to the product.
rpm 8,000 10,000 18,000 22,000 24,000
Duty type
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
Rated power kW
16 19.2 16 19.2 8 9.6 7 8.4 7 8.4
Rated torque Nm
19.1 22.9 15.3 18.3 4.2 5.1 3 3.6 2.8 3.3
Rated current A
33.5 40.3 30.5 37 16 19.5 14.5 17.5 14 17
Rated efficiency K 0.8
Power factor cos M 0.7
Number of poles 4
Insulation class F
Cooling Liquid
Weight kg 42
267Hz
8000 rpm
380V
22000
18000
MAX RPM
Poles: 4
S6 60%
19
, 2kW - 25 , 7Hp
33,5 A
42 Kg
36 Kg
IP 54
Liquid cooling
FNZ4101848
Flussigkeitsgekuhlt
ES 789L 4P 16,00kW
10 18
22
8
19,2
9,6
HSD S.p.A www.hsd.it
Via della Meccanica,16
61100 PESARO (Italy)
ASYNCHRONOUS
3-PHASE MOTOR
DREHSTROM-
ASYNCHRONMOTOR
rpm x 1000
kW
..
..
S1 continuous
16 kW-21,5 Hp
16
8
24000
24
8,4
7
Cos = 0,7
= 0,8
UL-MH26206
IEC 60034-1

η
φ
HSD
Ta:20°C
Ins.Cl. F
