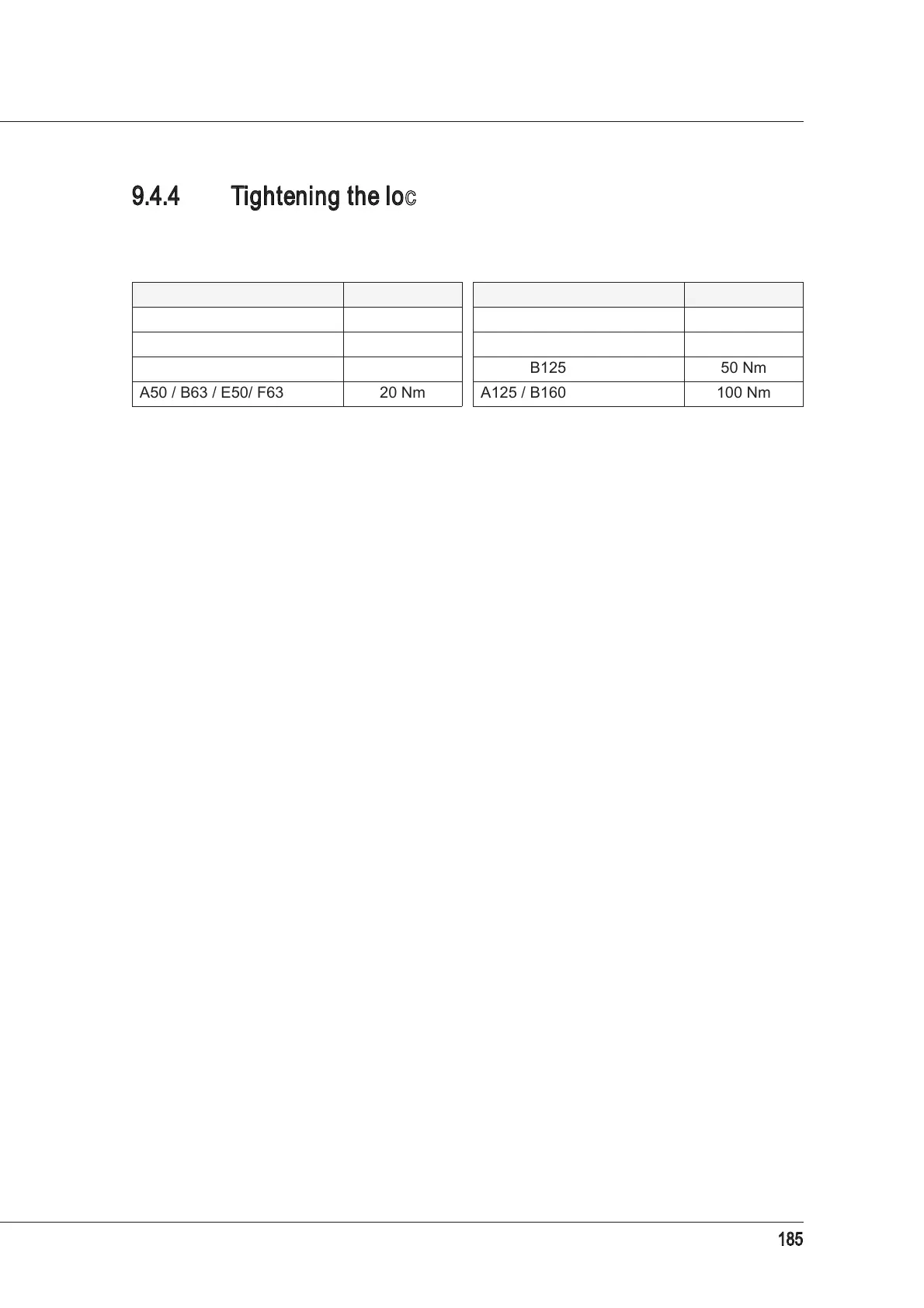

9.4.4 Tightening the lockscrew for the HSK collet
Observe the tightening torque of the lockscrew indicated for each HSK collet format.
Table 3
Collet Tightening Collet Tightening
E25 7 Nm A63 / B80 / E63/ F80 30 Nm
A32 / B40 / E32 10 Nm A80 / B100 30 Nm
A40 / B50 / E40/ F50 15 Nm A100 / B125 50 Nm
A50 / B63 / E50/ F63 20 Nm A125 / B160 100 Nm
