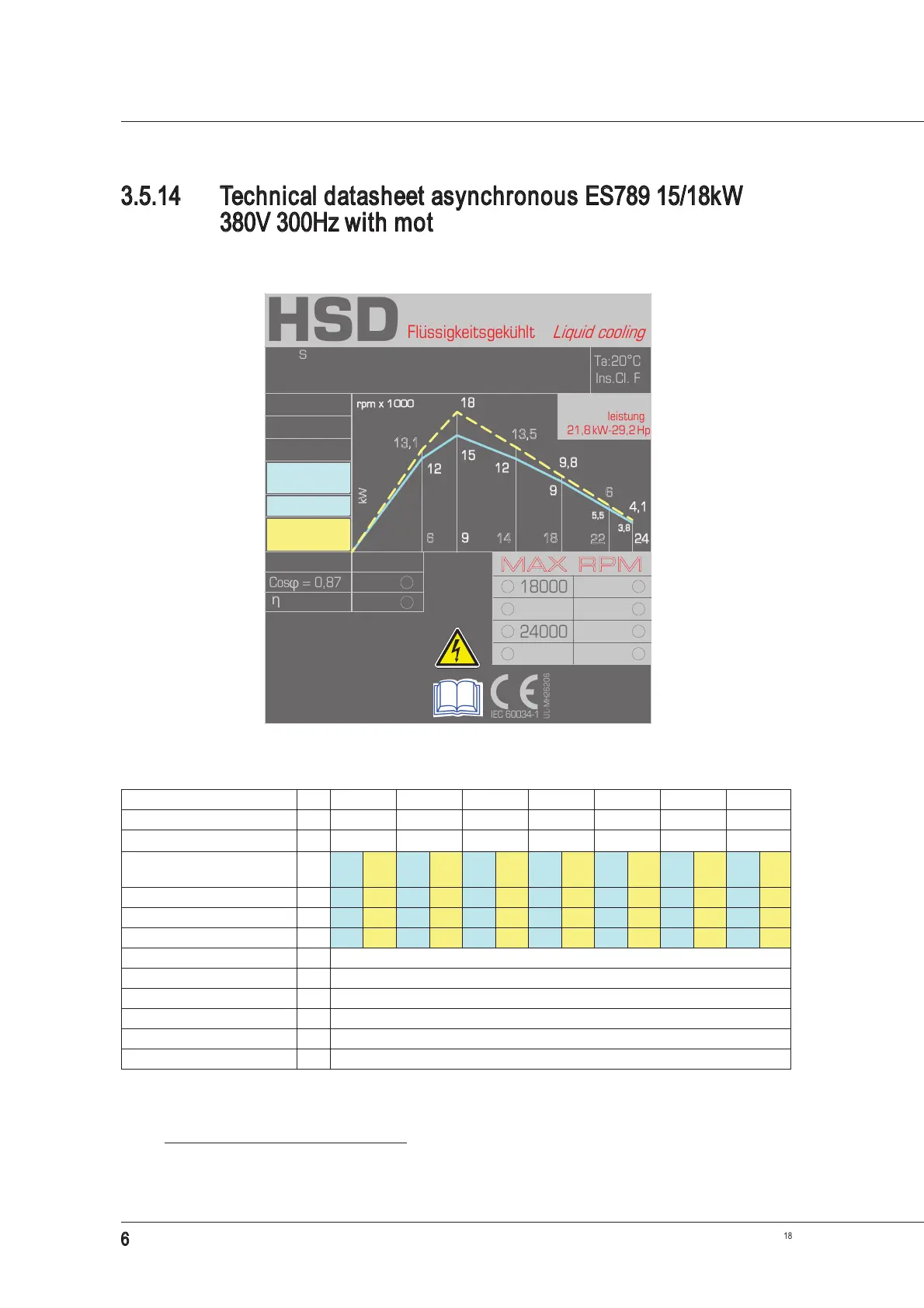

3.5.14 Technical datasheet asynchronous ES789 15/18kW
380V 300Hz with motor rating plate H1423H0228*
Motor rating plate
H1423H0228 (SP.120.150.4N)
*
Discontinued. Replaced by another version. Refer to paragraph
3.5.16 “Technical datasheet asynchronous
ES789 15/18kW 380V 300Hz with motor rating plate FNZ4101847”
.
Rated voltage V 255 380 380 380 380 380 380
Rated frequency Hz 200 300 467 500 600 733 800
Rated speed*
*
The maximum speed is specified in the “MAX RPM” box of the motor rating plate affixed to the product.
rpm 6,000 9,000 14,000 15,000 18,000 22,000 24,000
Duty type
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
Rated power kW
12 13.1 15 18 12 13.5 11.2 12.6 9 9.8 5.5 6 3.8 4.1
Rated torque Nm
19.1 20.9 15.9 19.1 8.2 9.2 7.1 8 4.8 5.2 2.4 2.6 1.5 1.6
Rated current A
36.8 41.3 31.6 38.7 29.1 32.8 28 31.2 24.3 26.4 16.2 17.6 11.1 12.2
Rated efficiency K 0.84
Power factor cos M 0.87
Number of poles 4
Insulation class F
Cooling Liquid
Weight kg 36
300Hz
9000 rpm
380V
22000
MAX RPM
6
S1 continuous
15 kW-20,1 Hp
Poles: 4
S6 60%
18 kW-24,1 Hp
31,6 A
= 0,84
Kg
36 Kg
IP 54
H1423H0228
ES 789L 4P 18,00kW H1
14 18
22
6
13,5
13,1
HSD S.p.A www.hsd.it
Via della Meccanica,16
61122 PESARO (Italy)
ASYNCHRONOUS
3-PHASE MOTOR
DREHSTROM-
ASYNCHRONMOTOR
kW
Peak Power
Spitzenleistung
21,8 kW-29,2 Hp
9
rpm x 1000
9,8
Liquid cooling
Flussigkeitsgekuhlt
..
..
18
24000
18000
24
4,1
5,5
12
12
9
15
3,8
Cos = 0,87
UL-MH26206
IEC 60034-1

η
φ
HSD
Ta:20 ° C
Ins.Cl. F
