3 Technical specifications and main parts
HSD S.p.A. © - h0102k01a.fm120718
77

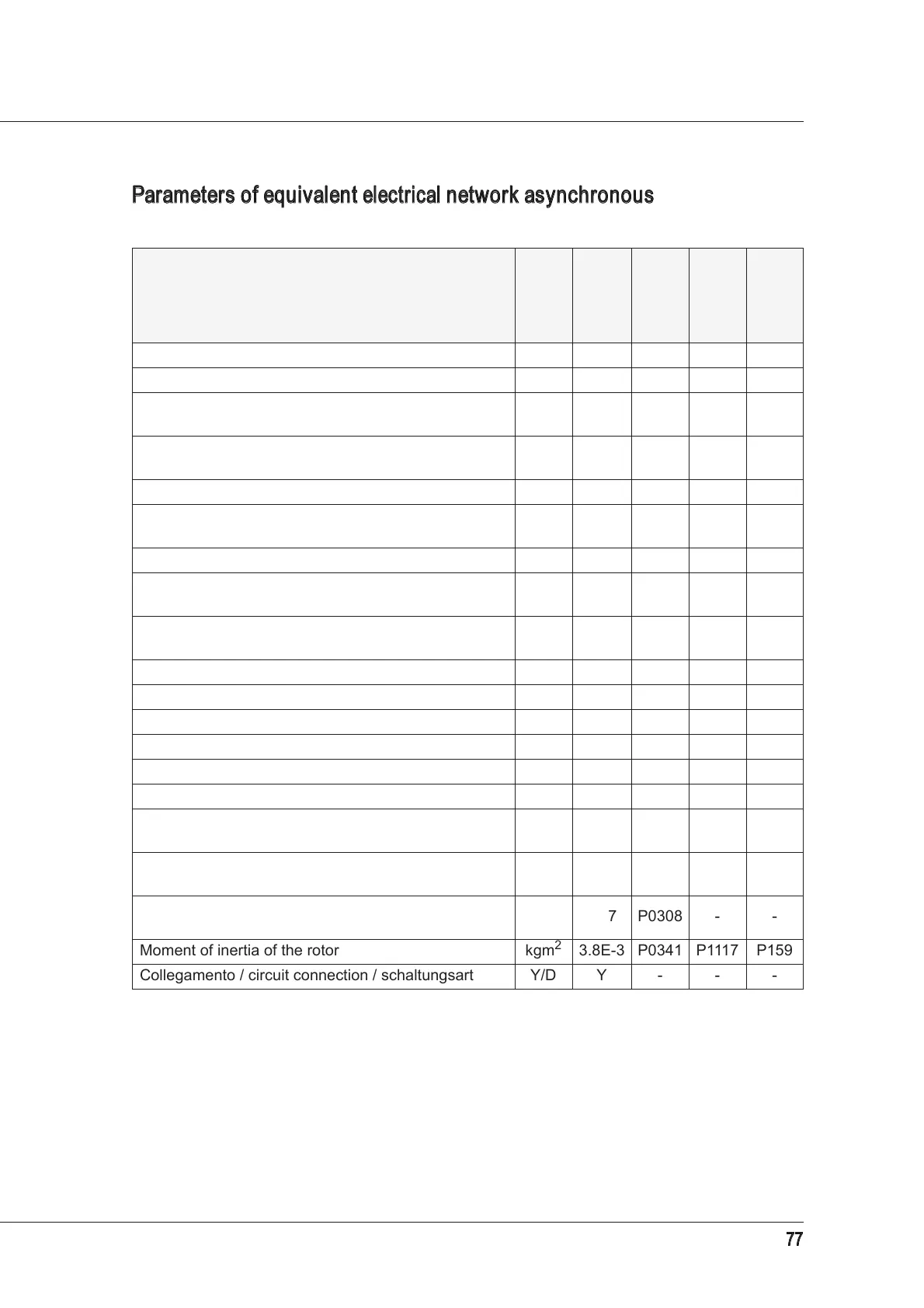

Parameters of equivalent
electrical network asynchronous ES789 15/18kW
380V 400Hz with motor rating plate FNZ4100709
Electrical parameters (SP.120.150.4R)
unit
Value
SINAMICS
SIMODRIVE
611 D/U
SIMODRIVE
611 A
Potenza nominale / rated power / nennleistung (S1) kW 15.0 P0307 P1130 P160
Corrente nominale / rated current / nennstrom (S1) A 30 P0305 P1103 P161
Tensione nominale concatenata / rated line voltage /
nennspannung
V 380 P0304 P1132 P162
Velocità nominale al carico nominale/ rated speed at
rated load /nenndrehzahl bei nennlast
rpm 11,800 P0311 P1400 P163
Frequenza nominale / rated frequency / nennfrequenz Hz 400 P0310 P1134 P164
Tensione a vuoto concatenata / no-load line voltage /
leerlaufspannung bei nennflussu
V 370 - P1135 P165
Corrente a vuoto / no-load current / leerlaufstrom A 6.0 P0320 P1136 P166
Resistenza dello statore / stator resistance /
standerwiderstand kalt (20°C)
Ohm 0.11 P0350 P1137 P167
Resistenza del rotore /rotor resistance /
lauferwiderstand kalt (20°C)
Ohm 0.091 P0354 P1138 P168
Stator leakage reactance Ohm 1.0 - P1139 P169
Stator leakage inductance mH 0.40 P0356 - -
Rotor leakage reactance Ohm 1.47 - P1140 P170
Rotor leakage inductance mH 0.59 P0358 - -
Main field reactance Ohm 35.3 - P1141 P171
Main field inductance mH 14.0 P0360 - -
Velocità di inizio indebolimento del campo / start of field
weakening speed / Einsatzdrehzahl feldschwachung
rpm 12,000 P0348 P1142 P173
Velocità massima del motore / maximum motor speed
/ Maximaldrehzahl
rpm *
*
See product motor rating plate.
P0322 P1146 P174
Fattore di potenza / power factor /
nennleistungsfactor
0.87 P0308 - -
Moment of inertia of the rotor kgm
2
3.8E-3 P0341 P1117 P159
Collegamento / circuit connection / schaltungsart Y/D Y - - -
