HSD ES779 - Technical Datasheet Synchronous ES779 12;14.4 Kw 357 Hz

3 Technical specifications and main parts
50
HSD S.p.A. © - h0102k01a.fm120718

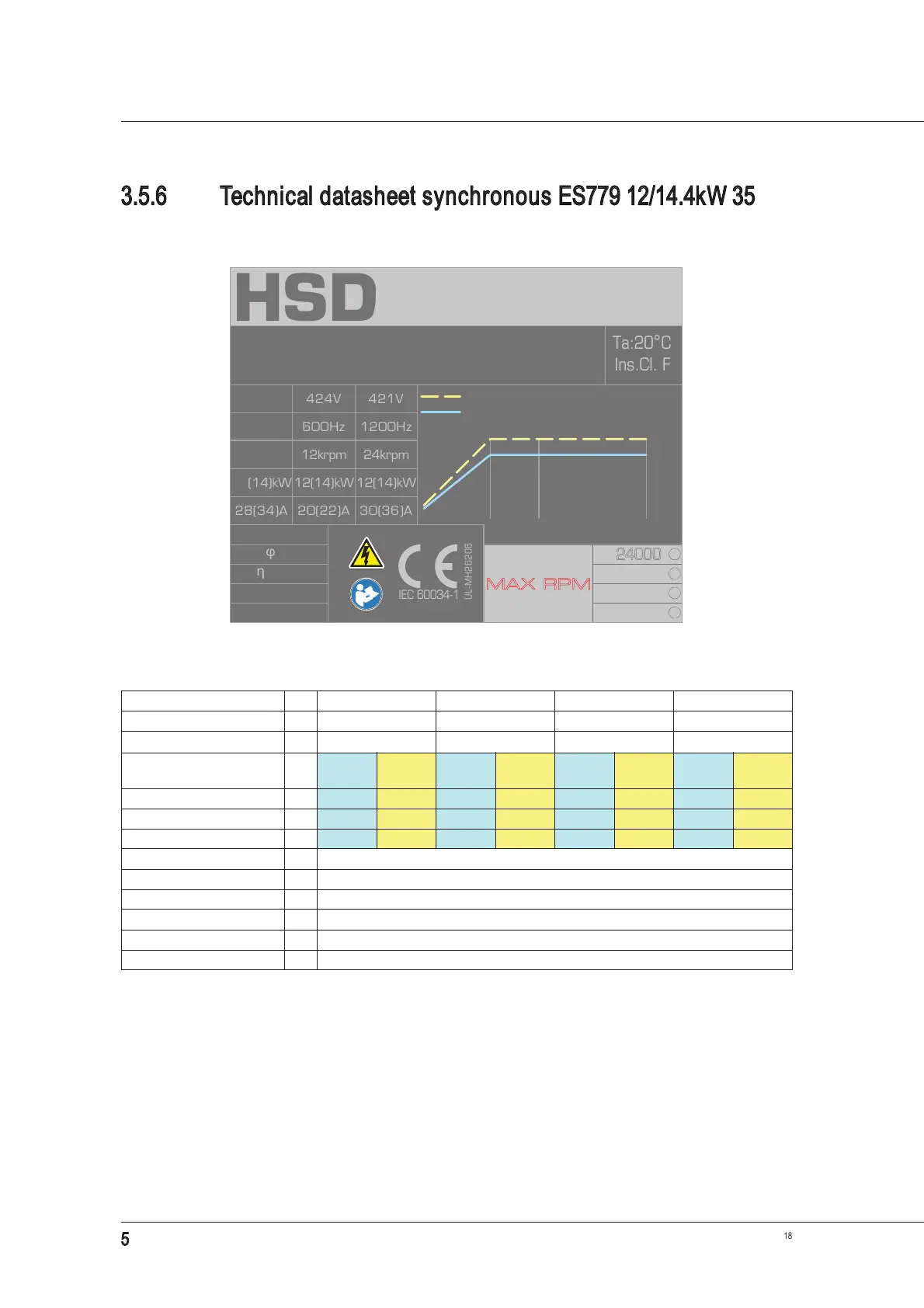

3.5.6 Technical datasheet synchronous ES779 12/14.4kW 357Hz
Motor rating plate
FNZ4102351 (SP.120.060.61.PAR.12)
Rated voltage V 276 380 424 421
Rated frequency Hz 375 530 600 1,200
Rated speed*
*
The maximum speed is specified in the “MAX RPM” box of the motor rating plate affixed to the product.
rpm 7,500 10,600 12,000 24,000
Duty type
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
Rated power kW
12 14.4 12 14.4 12 14.4 12 14.4
Rated torque Nm
15.2 18.2 10.9 13.1 9.6 11.5 4.8 5.8
Rated current A
28 33.6 20 22 17.7 21.2 30 36
Rated efficiency K 0.9
Power factor cos M 0.9
Number of poles 6
Insulation class F
Cooling Liquid
Weight kg 36
ES779L 6P 12 kW
Flüssigkeitsgekühlt
Liquid cooling
FNZ4102351
HSD S.p.A. www.hsd.it
Via della Meccanica, 16
61122 PESARO (Italy)
276V
S1 continuous
S6 40%
25kW
24000
MAX RPM
SYNCHRONOUS
3-PHASE MOTOR
DREHSTROM-
SYNCHRONMOTOR
Poles: 6
= 0,9
IP 54
36 kg
Cos
= 0,9
425,7
12
14,4
rpm x 1000
kW
S6 60%
S1
12
14,4
12
12
14,4
375Hz
7,5krpm
12(14)kW
28(34)A
424V
600Hz
12krpm
12(14)kW
20(22)A
421V
1200Hz
24krpm
12(14)kW
30(36)A
Ta:20 ° C
Ins.Cl. F
HSD
η
φ
UL-MH26206
IEC 60034-1
