HSD ES779 - Technical Datasheet Asynchronous ES779 10;12 Kw 380 V 500 Hz

3 Technical specifications and main parts
46
HSD S.p.A. © - h0102k01a.fm120718

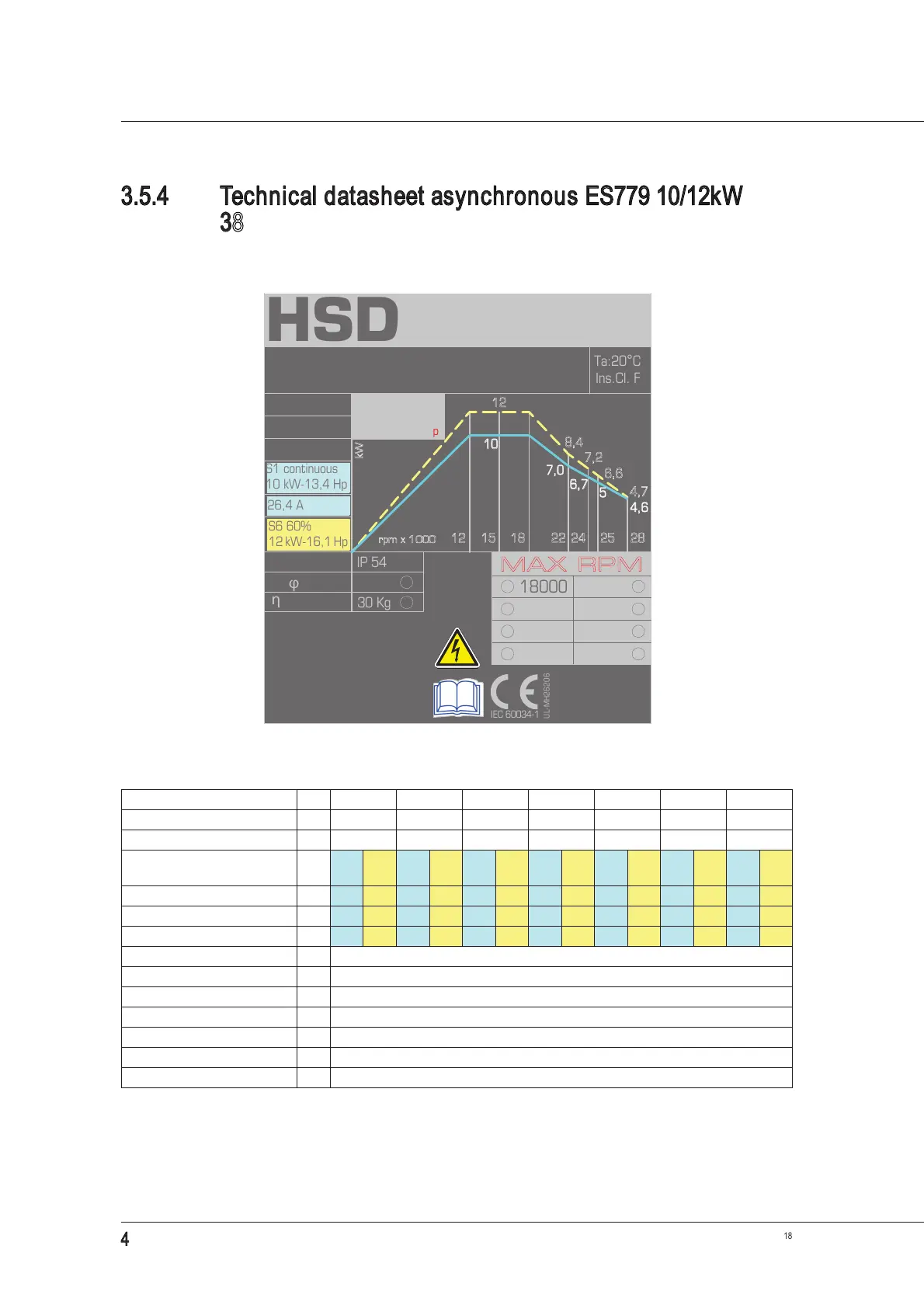

3.5.4 Technical datasheet asynchronous ES779 10/12kW
380V 500Hz
Motor rating plate
H1423H0212 (SP.120.080.44)
Rated voltage V 310 380 380 380 380 380 380
Rated frequency Hz 400 500 600 733 800 833 933
Rated speed*
*
The maximum speed is specified in the “MAX RPM” box of the motor rating plate affixed to the product.
rpm 12,000 15,000 18,000 22,000 24,000 25,000 28,000
Duty type
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
S1
cont
S6
60%
Rated power kW
10 12 10 12 10 12 7 8.4 6.7 7.2 5 6.6 4.6 4.7
Rated torque Nm
8 9.6 6.4 7.6 5.3 6.4 3 3.7 2.7 2.9 1.8 2.5 1.6 1.6
Rated current A
31 37.5 26.4 31.5 26 31 20 24 18.6 20 13.7 18 12 12.5
Rated efficiency K 0.85
Power factor cos M 0.85
Number of poles 4
Insulation class F
Cooling Liquid
Short-nose version kg 26
Long-nose version kg 30
500Hz
15000 rpm
380V
28000
25000
MAX RPM
4,7
Poles: 4
Cos = 0,85
= 0,85
26 Kg
H1423H0212
ES 779L 4P 12,00kW H1
12
HSD S.p.A www.hsd.it
Via della Meccanica,16
61122 PESARO (Italy)
ASYNCHRONOUS
3-PHASE MOTOR
DREHSTROM-
ASYNCHRONMOTOR
rpm x 1000
24000
22000
12
15 22 24 2825
6,6
8,4
7,2
Liquid cooling
Flussigkeitsgekuhlt
..
..
18
kW
Peak Power
Spitzenleistung
17 kW- 22,8 Hp
IP 54
30 Kg
10
4,6
7,0
6,7
5
S6 60%
12 kW-16,1 Hp
26,4 A
S1 continuous
10 kW-13,4 Hp
18000
UL-MH26206
IEC 60034-1

η
φ
HSD
Ta:20 ° C
Ins.Cl. F
