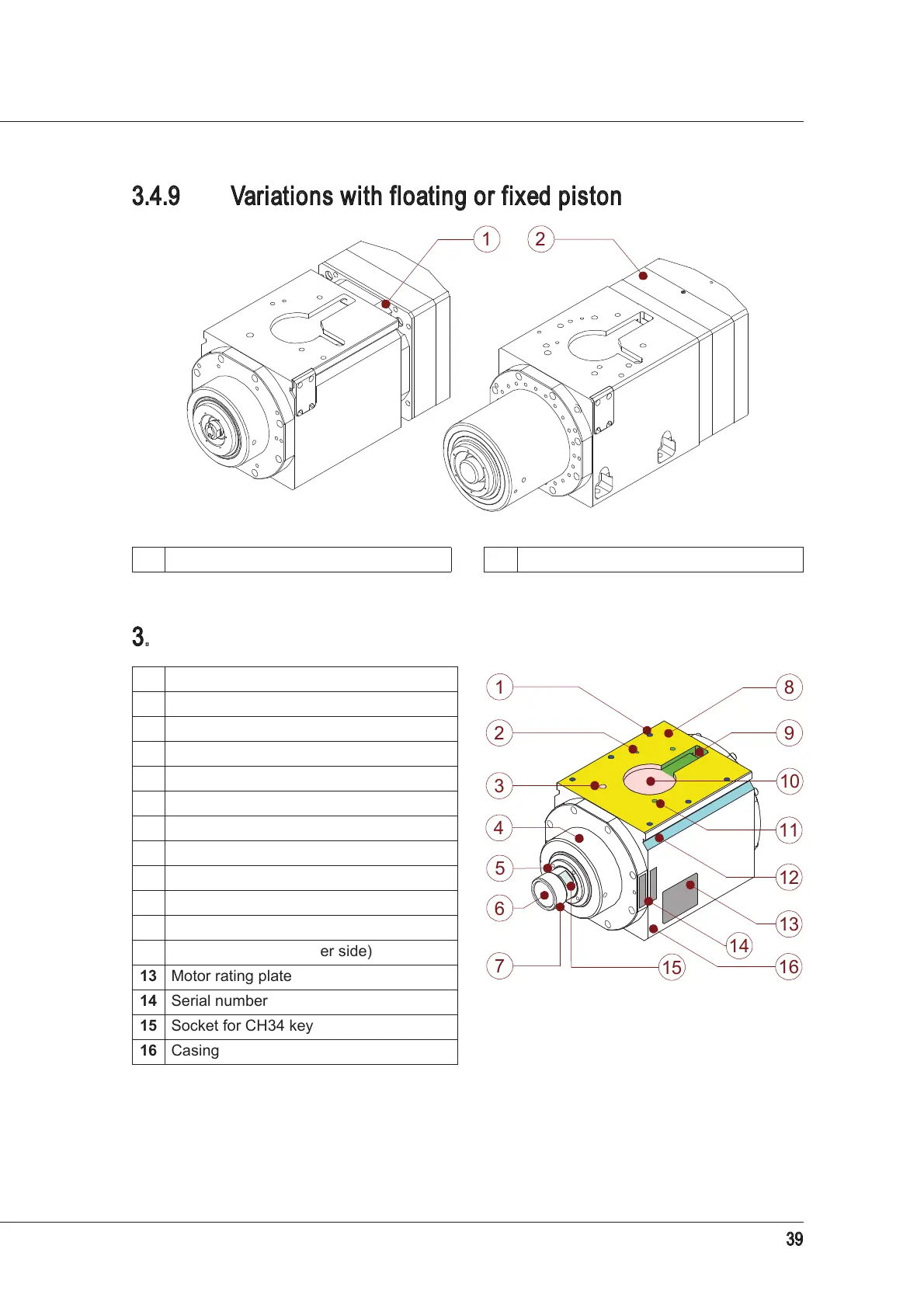

3.4.9 Variations with floating or fixed piston
3.4.10 ES779 with manual tool change (ES779 collet)
1 Floating piston 2 Fixed piston
1 6 fixing bores M8 thread depth 16
2 Pressurisation air inlet
3 Positioning bore Ø8 H7 depth 10
4 Nose
5 Shaft
6 ER32 collet seat
7 Thread M40, step 1.5, for ring nut
8 Support surface
9 Motor cable positioning
10 Positioning bore Ø60 H8 depth 6
11 2 coolant inlet/outlet bores
12 Fixing grooves (one per side)
13 Motor rating plate
14 Serial number
15 Socket for CH34 key
16 Casing
